Siemens 3SE5242-0CC05 3SE52420CC05, 1x -04011209694910

Marka Siemens

(0 ocen)

30,99 EUR

(= 233,49 kn)

Kod proizvoda: 703035
EAN: 4011209694910
Procijenjena isporuka:27.10.2026 - 29.10.2026

Opis

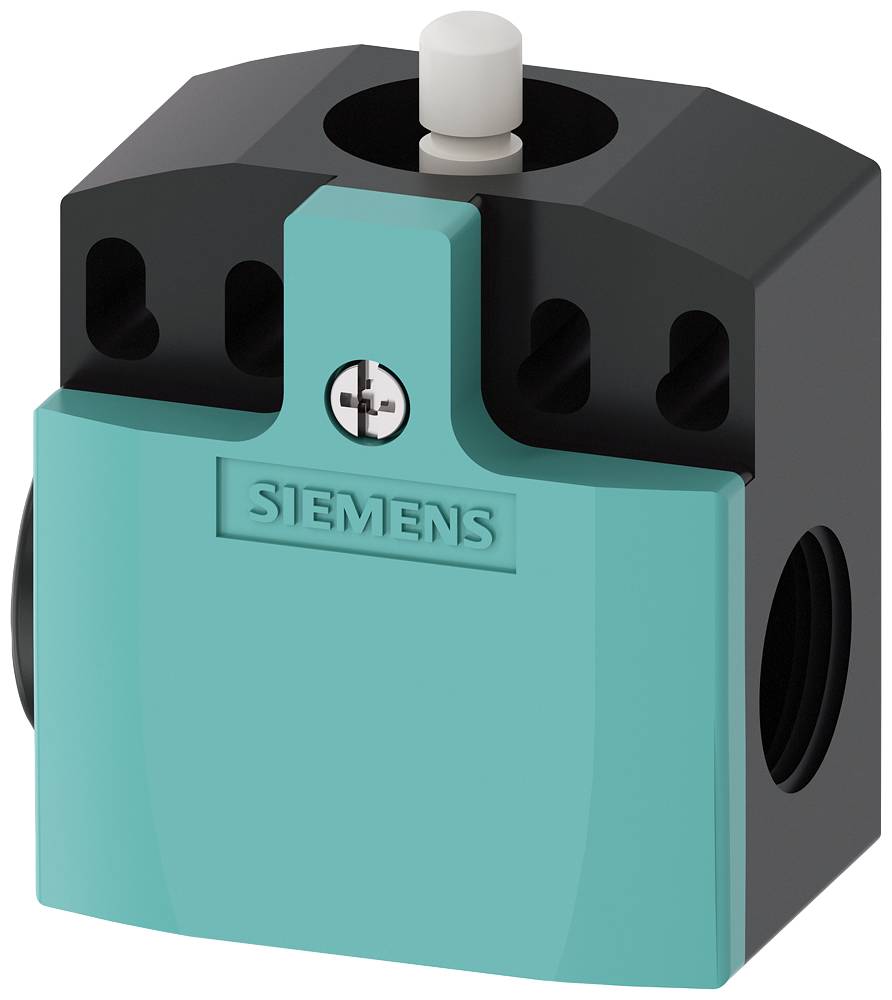

position switch plastic enclosure 50 mm, device connection 2 x (M20 x 1.5) 1 NO/1 NC quick action contacts, rounded plunger Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.
Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

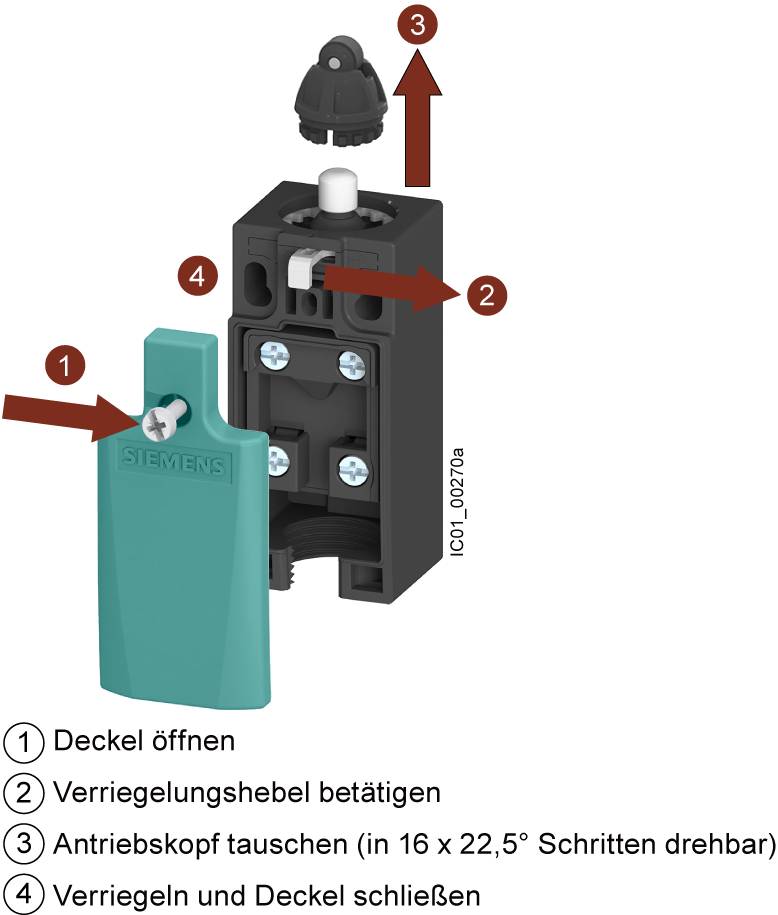

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.

Isporuka uključuje

Konačni prekidač 240 V/AC 1.5 A podizač, tipkalno Siemens SIRIUS 3SE5242-0CC05 IP67 1 kom.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3SE52420CC05

EAN koda: 4011209694910

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 703035 Siemens 3SE5242-0CC05 3SE52420CC05, 1x -04011209694910

Upute za rad i sigurnost 703035 Siemens 3SE5242-0CC05 3SE52420CC05, 1x -04011209694910

Tehnički podaci

Vrsta proizvoda	konačni prekidač
Priključak	vijak
Vrsta aktiviranja	podizač
Sklopni napon	240 V/AC
Prebacivanje struje (maks.)	1.5 A
Vrsta kontakta	1 zatvarač 2 otvarač
Otvor za kontakt	puckanje
Funkcija	s povratom
Veličina navoja	M20
Materijal	plastika
Širina	50 mm
Tip	3SE5242-0CC05
Sadržaj	1 St.

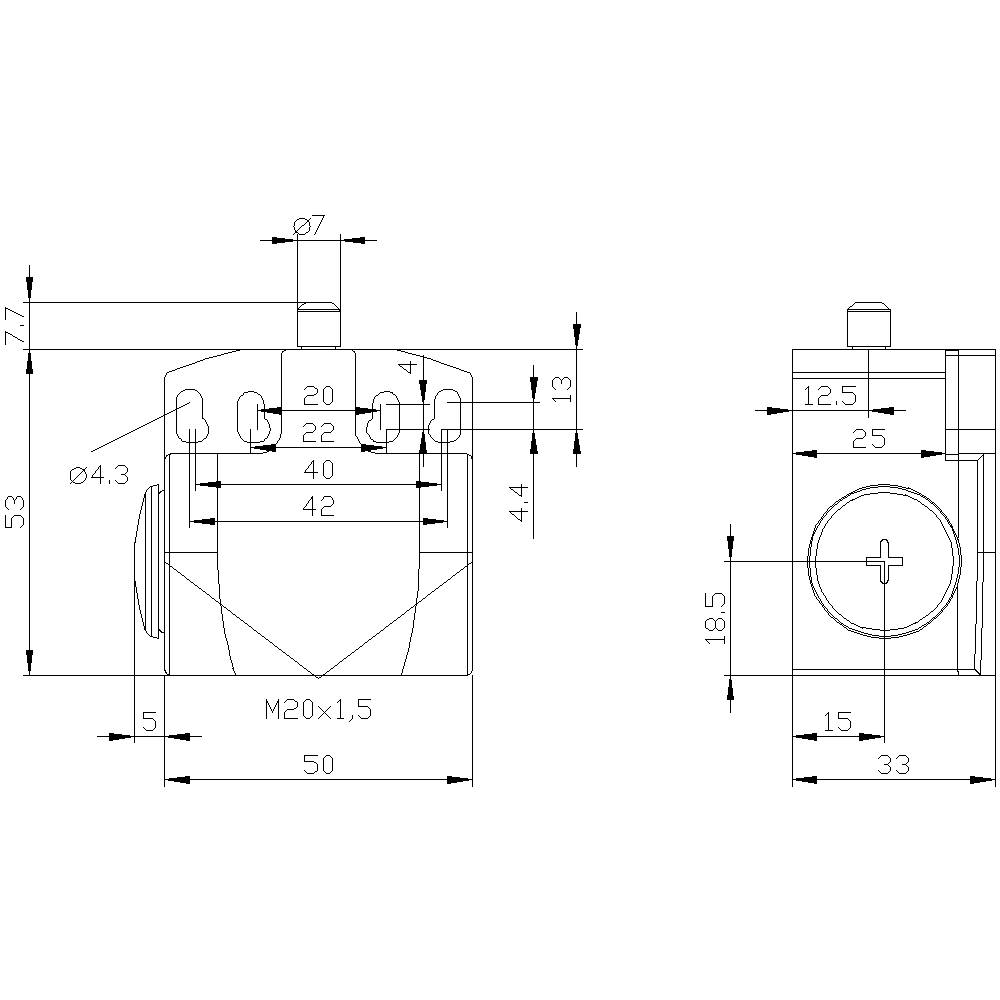

dim.	(Š x V x D) 50 x 53 x 33 mm
RoHS-konforno	Da
Visina	53 mm
Dubina	33 mm
Switching function	Quick-break switch
Housing material	Plastic
Suitable for safety functions	TRUE
Coating housing	Other
With status indication	FALSE
Type of interface for safety communication	None
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP66/IP67
Forced opening	TRUE
Number of safety auxiliary contacts	1
Type of control element	Plunger
Type of interface	None
Output electronic	FALSE
Rated operation current Ie at AC-15, 24 V	6 A
Rated operation current Ie at DC-13, 125 V	0.55 A
Rated operation current Ie at DC-13, 24 V	3 A
Width sensor	50 mm
Height of sensor	33 mm
Length of sensor	60.7 mm
Switching function latching	FALSE
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Alignment of the control element	Roller cam straight
Degree of protection (NEMA)	12
