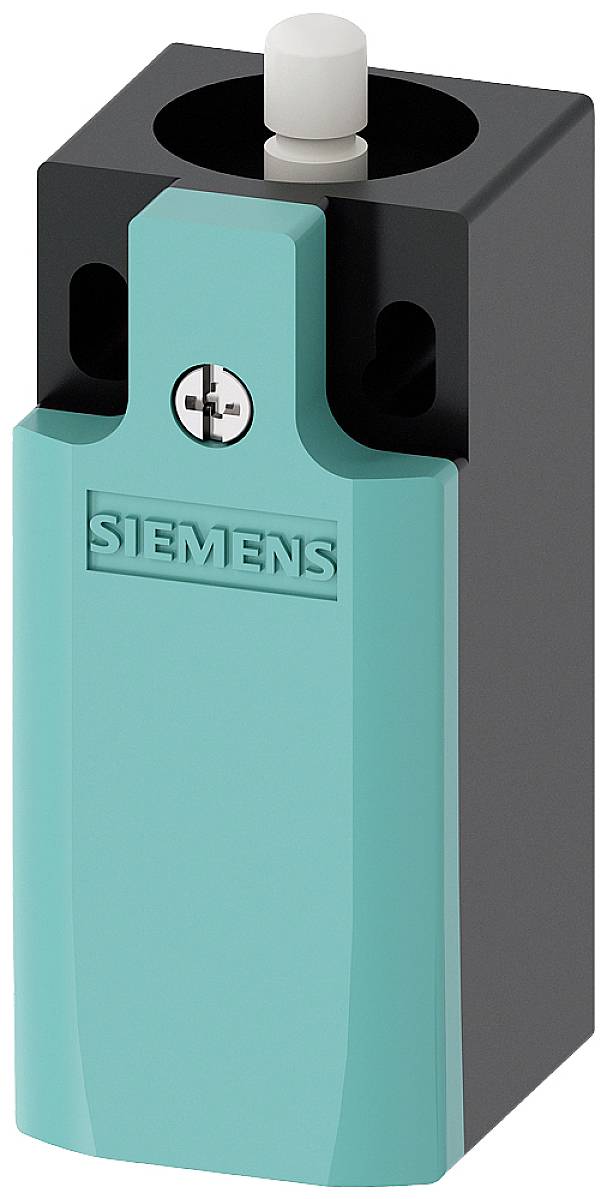

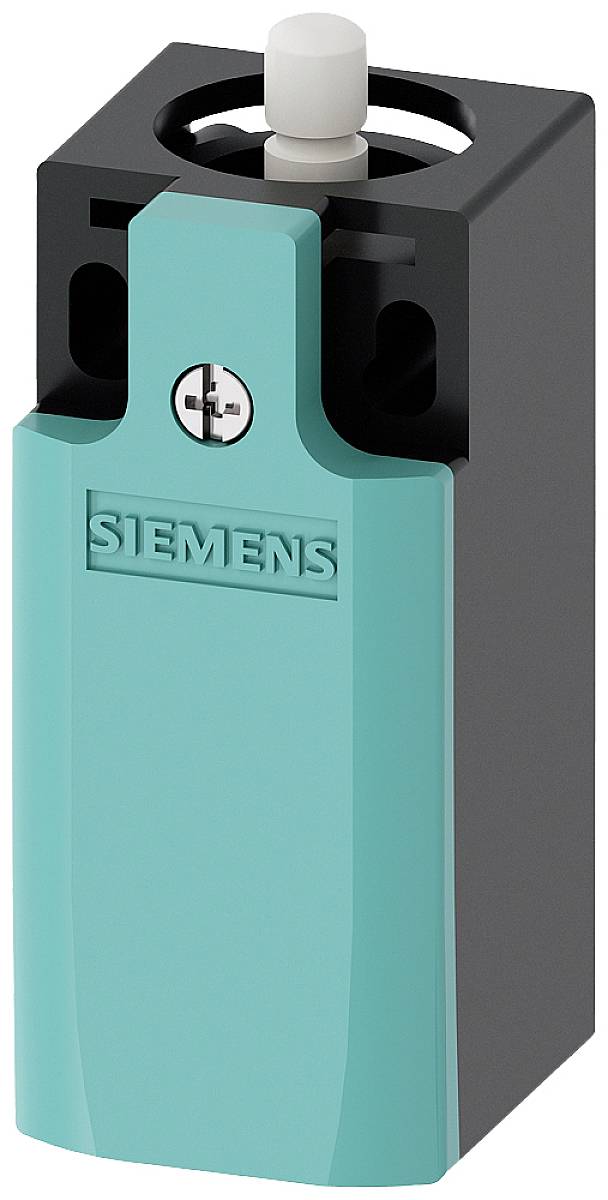

Siemens 3SE5232-0CC05 3SE52320CC05, 1x -04011209694088

Marka Siemens

(0 ocen)

27,99 EUR

(= 210,89 kn)

Kod proizvoda: 703031
EAN: 4011209694088
Procijenjena isporuka:05.10.2026 - 07.10.2026

Opis

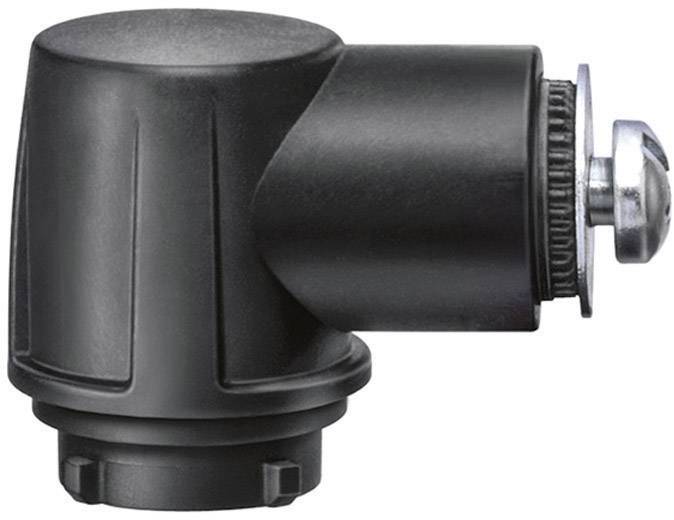

position switch plastic enclosure according to EN 50047, 31 mm device connection 1 x (M20 x 1.5) 1 NO/1 NC, quick action contacts (replaceable), rounded plunger form B Mechanical position switches SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment.
The modular design of the 3SE5 position switches permits a host of variants with a small number of bearing types. The wide variety of plug-in connectors and rollers meets almost all everyday requirements in industry. LEDs indicate the current state of the device. Thanks to quick-connect technology, the time required for connection can be considerably reduced. Operating points and mounting in accordance with EN 50047 and EN 50041. The devices have worldwide approval (IEC, UL). With the corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met. The integrated ASIsafe electronics requires a low current input.

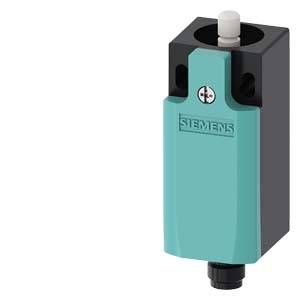

Various enclosure sizes, with different contacts, are available in plastic or metal, or compact design. Some versions are optionally available with an LED status display and M12 plug. The 3SF1 series with direct connection to the AS-Interface bus system completes the portfolio.

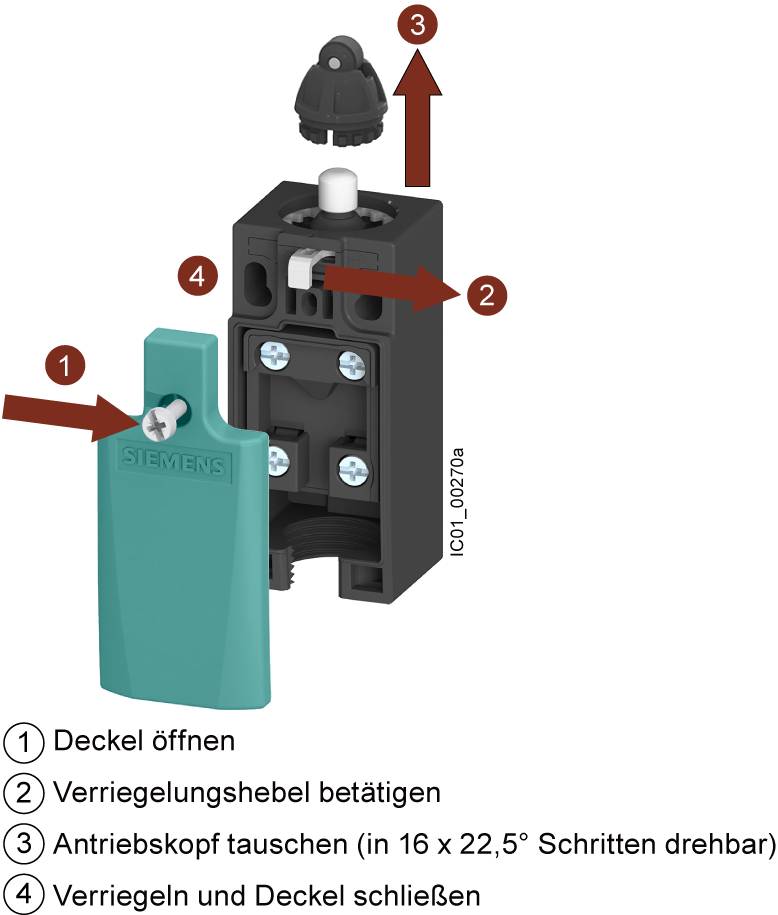

Depending on the design, actuator heads and plug-in connectors, as well as other mounting/connection accessories, are available.
Safety is a SIRIUS business.

Isporuka uključuje

Konačni prekidač 240 V/AC 3 A podizač, tipkalno Siemens SIRIUS 3SE5232-0CC05 IP67 1 kom.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3SE52320CC05

EAN koda: 4011209694088

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 703031 Siemens 3SE5232-0CC05 3SE52320CC05, 1x -04011209694088

Upute za rad i sigurnost 703031 Siemens 3SE5232-0CC05 3SE52320CC05, 1x -04011209694088

Tehnički podaci

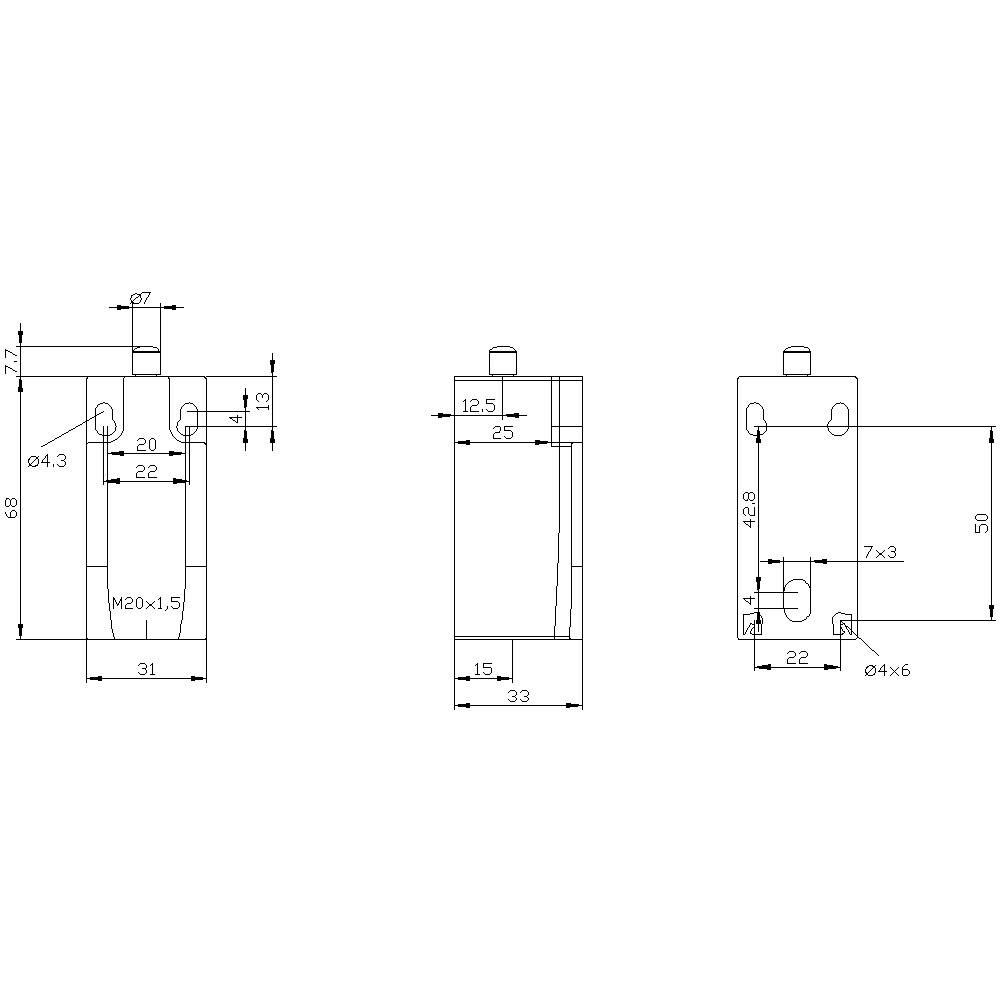

Dubina	33 mm
Visina	68 mm
Širina	31 mm
Vrsta zaštite	IP65
Priključak	vijak
Vrsta kontakta	1 zatvarač 1 otvarač 1 prebacivanje
Materijal	plastika
Vrsta aktiviranja	podizač
Funkcija	s povratom
Veličina navoja	M20
Proizvođač-br. dijela	3SE52320CC05
Radna snaga	20 N
Prebacivanje struje (maks.)	3 A
Sklopni napon	240 V/AC
Mehanički vijek trajanja	15000000
Električni vijek trajanja	100000
Otvor za kontakt	puckanje
Maks. temperatura	+85 °C
Min. temperatura	-25 °C
Switching function	Quick-break switch
Housing material	Plastic
Suitable for safety functions	TRUE
Coating housing	Other
With status indication	FALSE
Type of interface for safety communication	None
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP65
Forced opening	TRUE
Number of safety auxiliary contacts	1
Type of control element	Plunger
Type of interface	None
Output electronic	FALSE
Rated operation current Ie at AC-15, 24 V	6 A
Rated operation current Ie at DC-13, 125 V	0.55 A
Rated operation current Ie at DC-13, 24 V	3 A
Width sensor	31 mm
Height of sensor	33 mm
Length of sensor	75.7 mm
Switching function latching	FALSE
Ambient temperature during operating	-25-85 °C
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Alignment of the control element	Roller cam straight
Degree of protection (NEMA)	12
