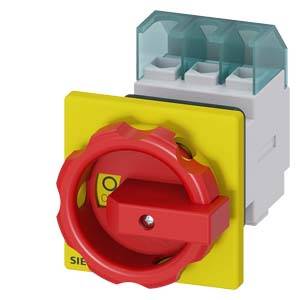

crvena, žuta 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22540TK53

Marka Siemens

(0 ocen)

51,99 EUR

(= 391,72 kn)

Kod proizvoda: 1743154
EAN: 4011209403246
Procijenjena isporuka:05.10.2026 - 07.10.2026

Opis

Siemens 3LD2254-0TK53. AC ulazna frekvencija: 50/60 Hz, nazivna struja: 32 A. Boja proizvoda: crvena, žuta. Širina: 67 mm, dubina: 116,5 mm, visina: 83 mm

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3LD22540TK53

EAN koda: 4011209403246

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1743154 crvena, žuta 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22540TK53

Upute za rad i sigurnost 1743154 crvena, žuta 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22540TK53

Tehnički podaci

Pogonski napon (detalji)	690 V/AC
Nazivni napon	690 V/AC
Boja	crvena žuta
Poprečni presjek	16 mm²
Broj polova	3

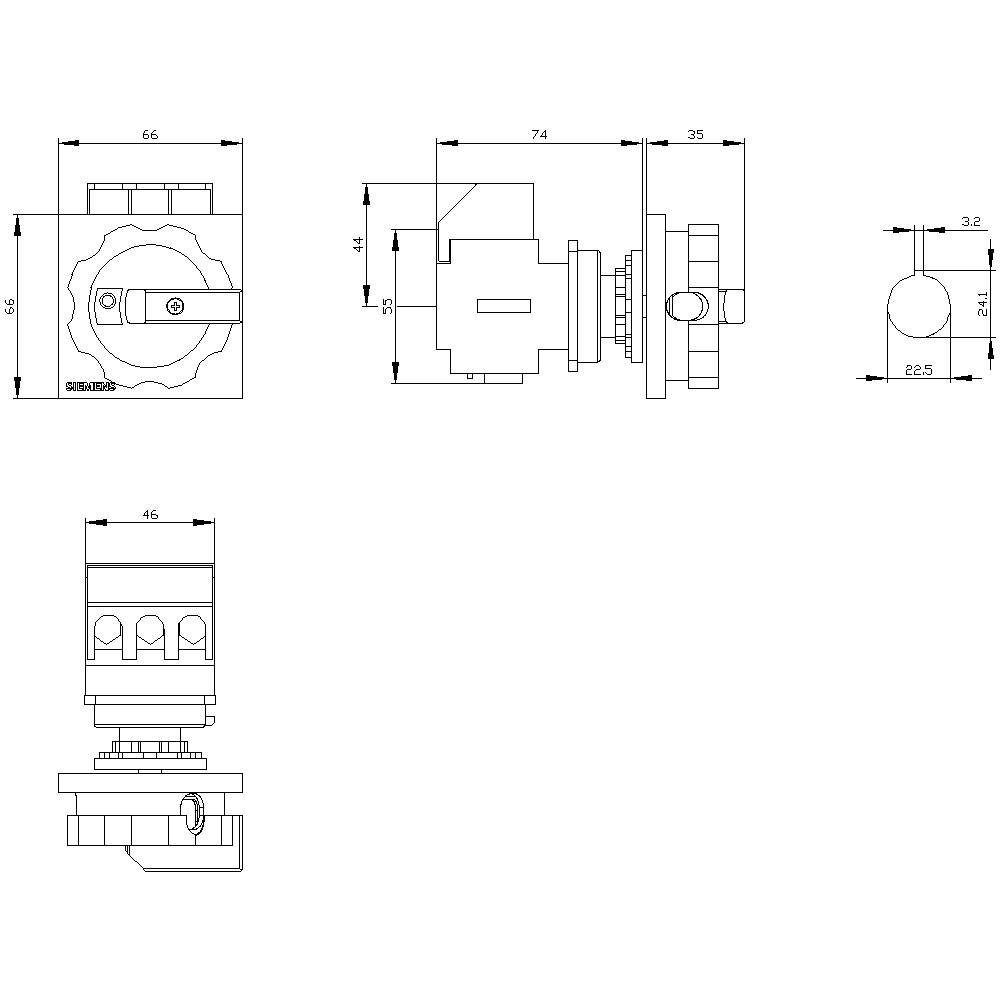

dim.	(Š x V x D) 67 x 83 x 116.5 mm
Nazivna struja	32 A
Nazivna struja - zaokružena	32 A
Izvedba	Prekidač za isključivanje u nuždi
Širina	67 mm
Visina	83 mm
Dubina	116.5 mm
Rated operation power at AC-3, 400 V	10 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	32 A
Number of poles	3
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	TRUE
Type of control element	Short rotary handle
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	12 kW
Rated short-time withstand current lcw	0.64 kA
Colour control element	Red
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	TRUE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	32 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	22
Degree of protection (NEMA)	Other
