Opis

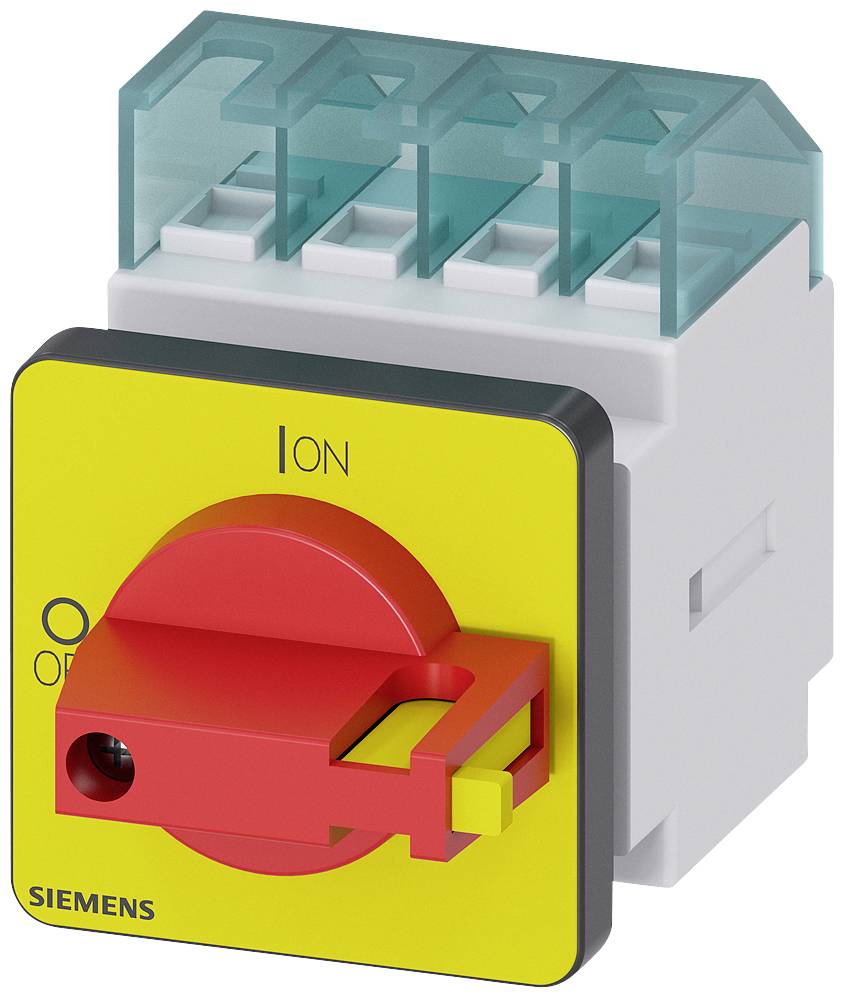

Siemens 3LD2064-0TB53. AC ulazna frekvencija: 50/60 Hz, nazivna struja: 16 A, komutacijski kapacitet: 340 A. Boja proizvoda: crvena, žuta. Širina: 100 mm, dubina: 117 mm, visina: 152 mm
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3LD20640TB53
EAN koda: 4011209512122
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Pogonski napon (detalji) |
690 V/AC |
|---|---|
| Boja |
crvena |
| dim. |

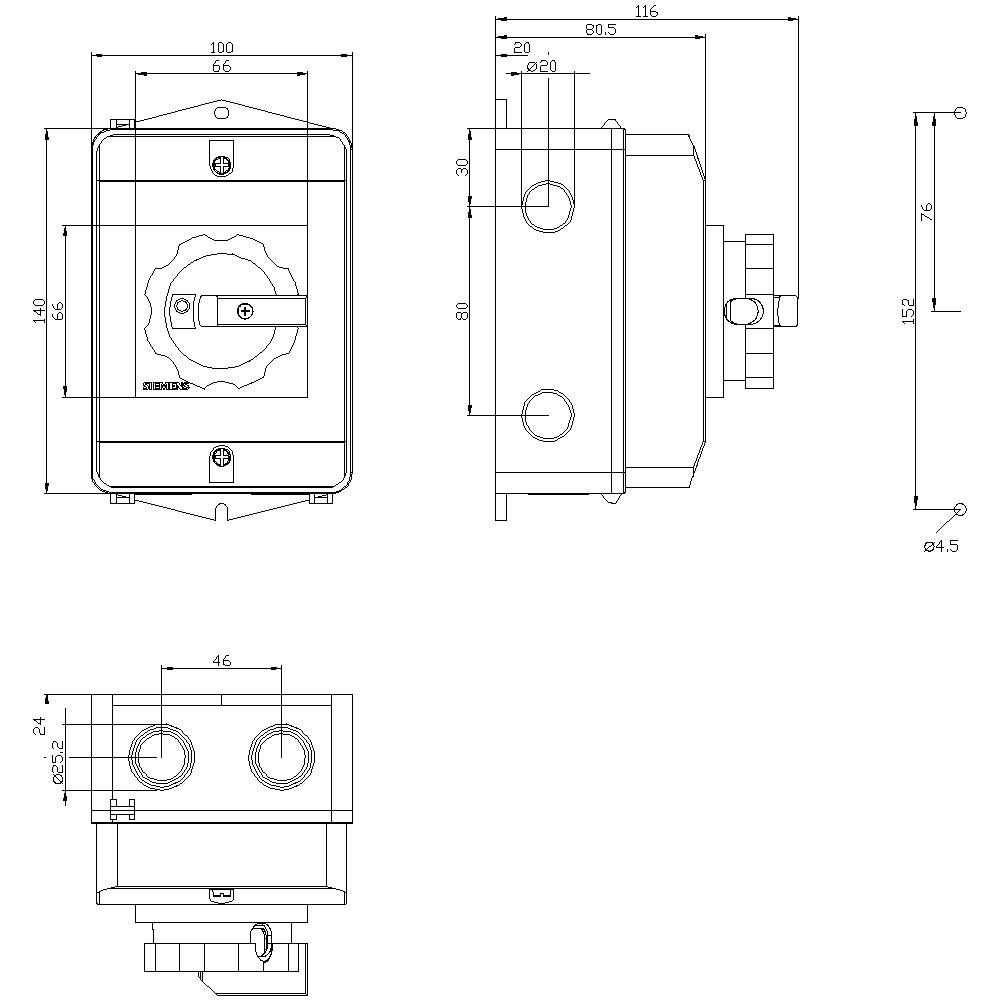

(Š x V x D) 100 x 152 x 117 mm |
| Nazivna struja |
16 A |
| Nazivna struja - zaokružena |
16 A |
| Dubina |
117 mm |
| Visina |
152 mm |
| Širina |
100 mm |
| Izvedba |
Prekidač za isključivanje u nuždi |
| Nazivni napon |
690 V/AC |
| Poprečni presjek |
6 mm² |
| Broj polova |
3 |
| Rated operation power at AC-3, 400 V |
6 kW |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Rated permanent current Iu |
16 A |
| Number of poles |
3 |
| Degree of protection (IP), front side |
IP65 |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of switches |
1 |
| Interlockable |
TRUE |
| Motor drive integrated |
FALSE |
| Type of electrical connection of main circuit |
Frame clamp |
| Version as emergency stop installation |
TRUE |
| Type of control element |
Short rotary handle |
| Version as main switch |
TRUE |
| Version as safety switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Rated operation power at AC-23, 400 V |
8 kW |
| Rated short-time withstand current lcw |
0.34 kA |
| Colour control element |
Red |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
TRUE |
| Suitable for distribution board installation |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Max. rated operation voltage Ue AC |
690 V |
| Motor drive optional |
FALSE |
| Voltage release optional |
FALSE |
| Device construction |
Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V |
16 A |
| Version as reversing switch |
FALSE |
| Rated permanent current at AC-23, 400 V |
16 |
| Degree of protection (NEMA) |
Other |
| Vrsta proizvoda |
prekidač za isključivanje |
