Siemens 3SU1152-0AB40-1BA0 3SU11520AB401BA0, 1x -04011209958876

Marka Siemens

(0 ocen)

44,99 EUR

(= 338,98 kn)

Kod proizvoda: 1379598
EAN: 4011209958876
Procijenjena isporuka:07.10.2026 - 09.10.2026

Opis

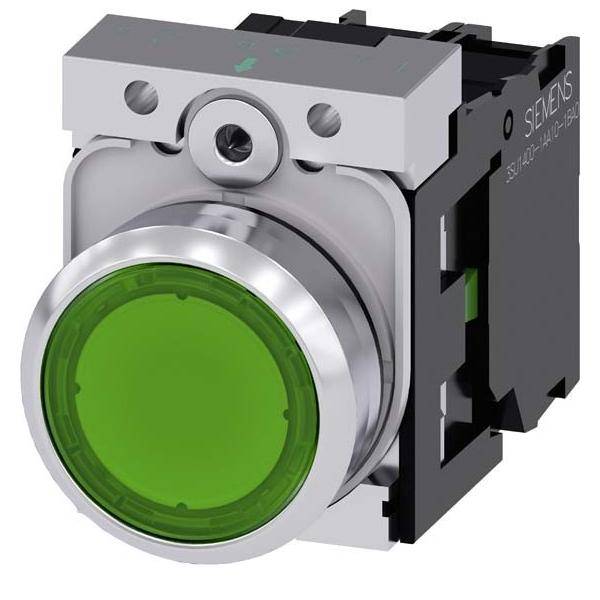

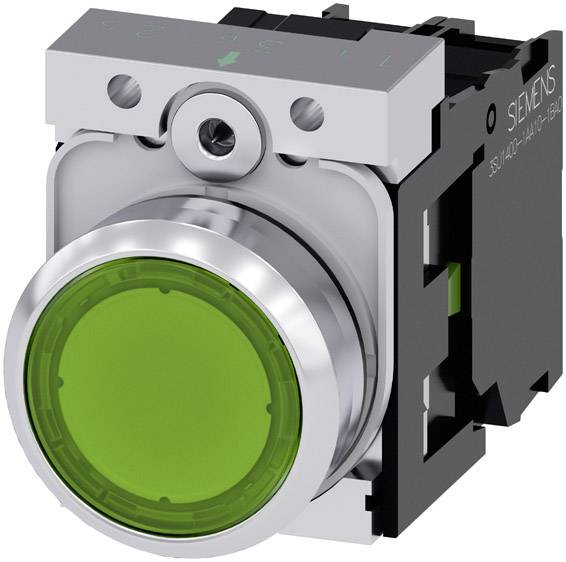

Illuminated pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 24 V AC/DC, screw terminal Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

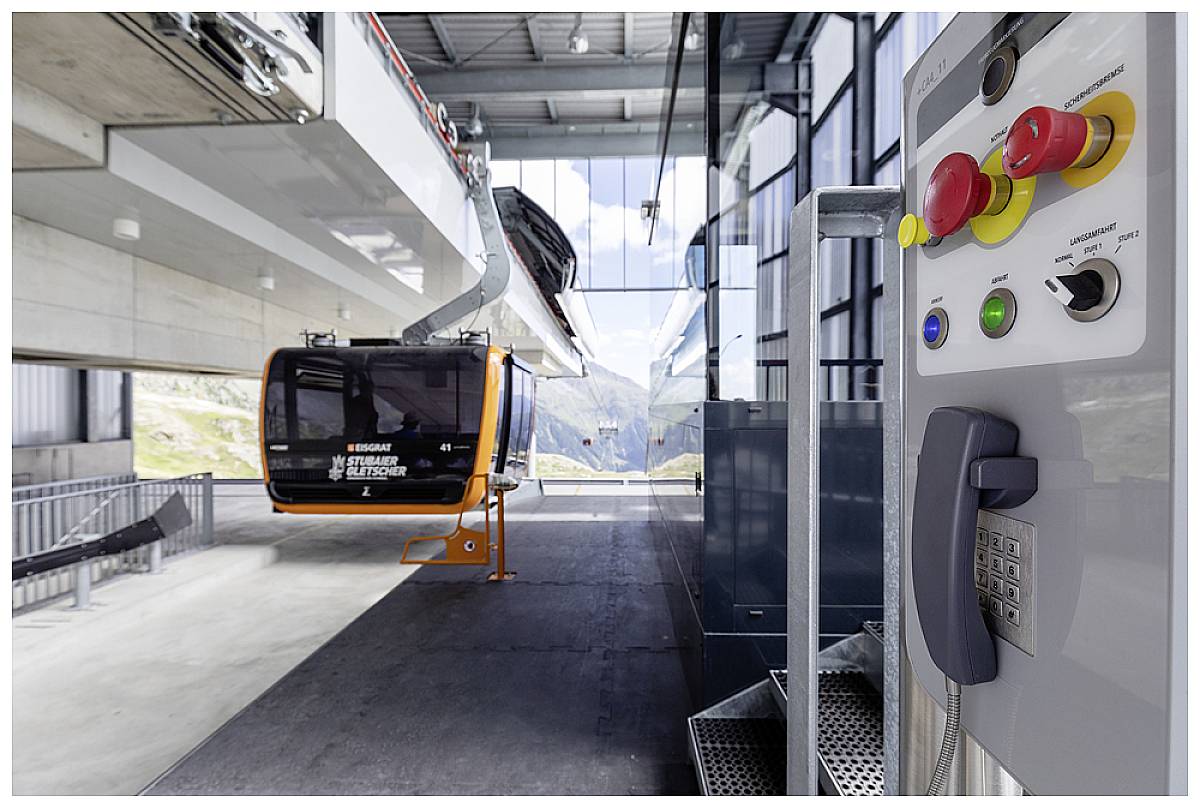

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.

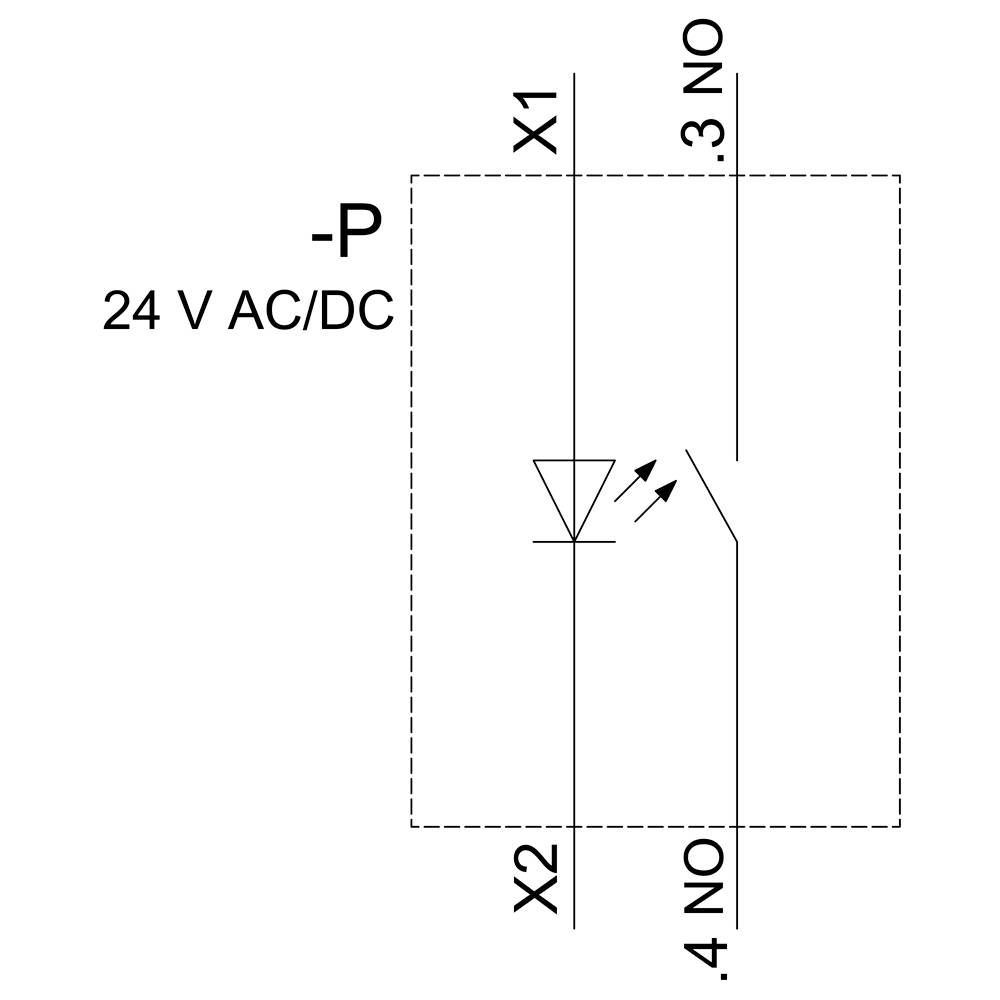

The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.

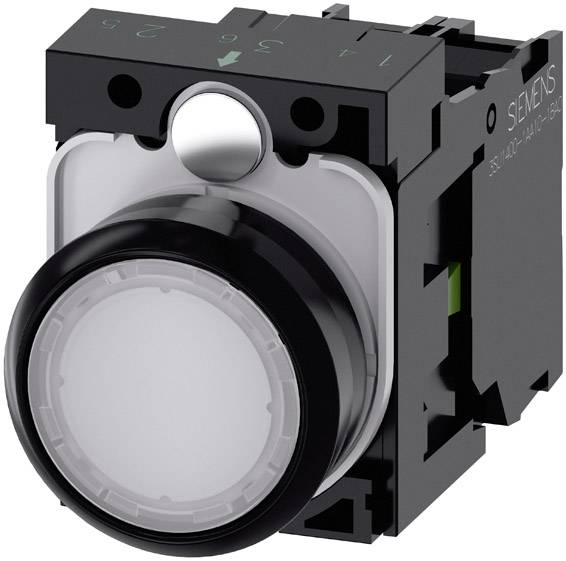

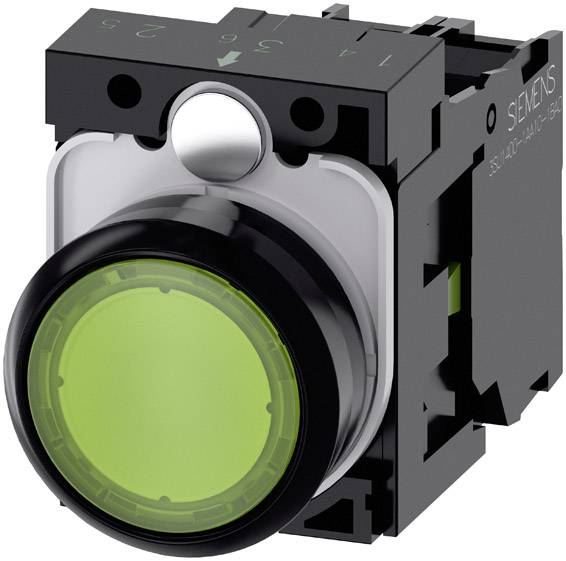

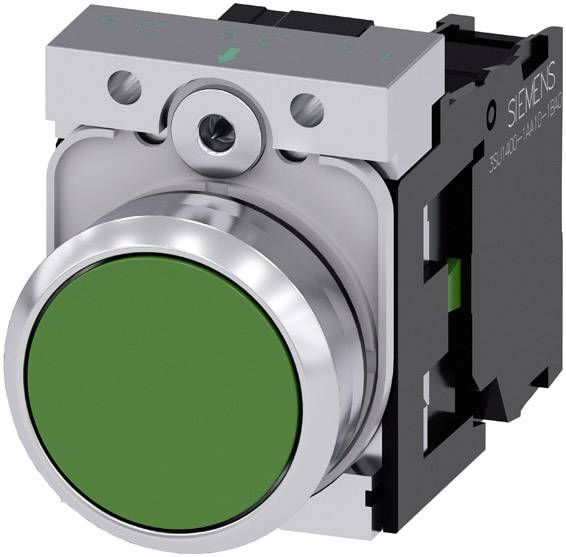

Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3SU11520AB401BA0

EAN koda: 4011209958876

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1379598 Siemens 3SU1152-0AB40-1BA0 3SU11520AB401BA0, 1x -04011209958876

Informacije 1379598 Siemens 3SU1152-0AB40-1BA0 3SU11520AB401BA0, 1x -04011209958876

Upute za rad i sigurnost 1379598 Siemens 3SU1152-0AB40-1BA0 3SU11520AB401BA0, 1x -04011209958876

Tehnički podaci

Vrsta proizvoda	svjetleće tipkalo
Određene značajke prekidača/tipkala	prednji prsten od metala visok sjaj plosnati okidač
Funkcija	s povratom
Vrsta osvjetljenja	površinska rasvjeta
Boja svjetla	zelena
Sklopni napon	24 V/DC 24 V/AC

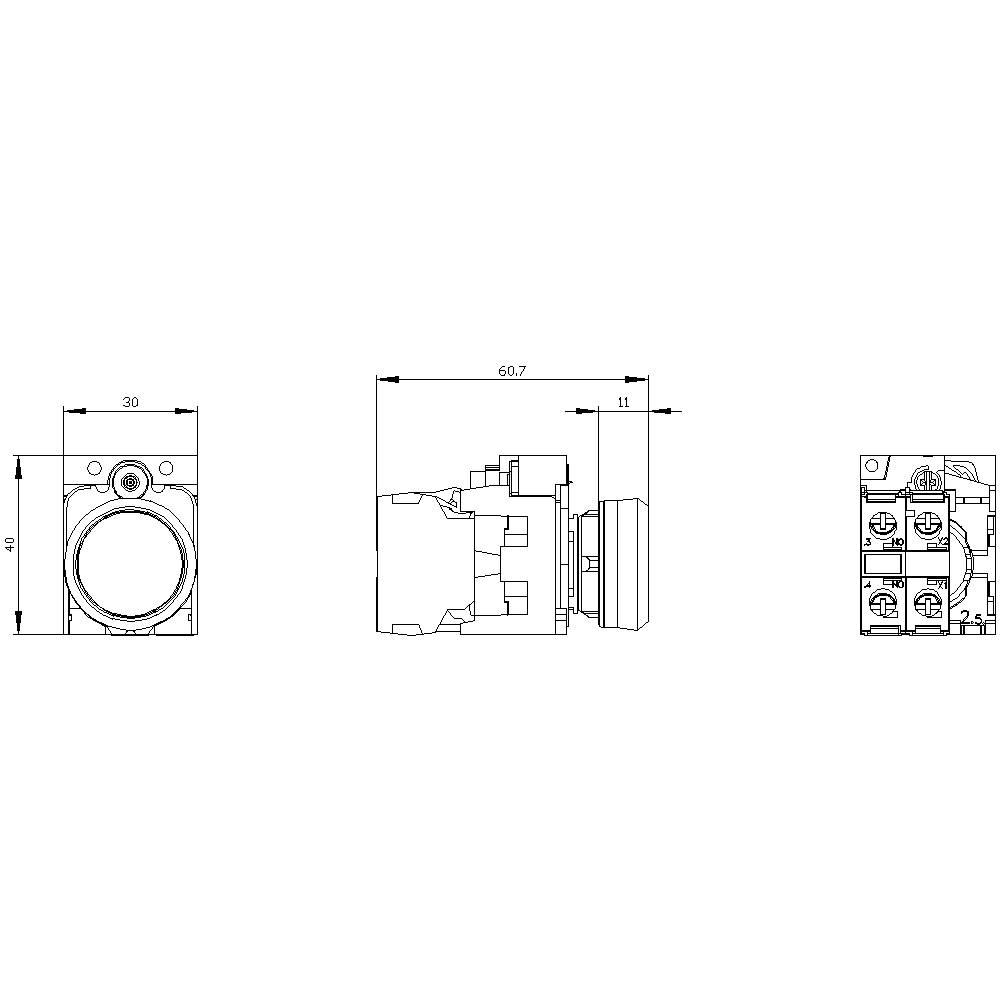

Širina	30 mm
Visina	40 mm
Mehanički vijek trajanja	3000000
Električni vijek trajanja	10000000
Vrsta zaštite	IP66 IP67 IP69 k (u ugrađenom stanju)
Sadržaj	1 St.
dim.	(Š x V) 30 mm x 40 mm
RoHS-konforno	Da
Tip	3SU1152-0AB40-1BA0
Boja	zelena
Težina	98 g
Hole diameter	22.3 mm
Colour button	Green
Suitable for lighting	TRUE
Number of command positions	1
Spring-return	TRUE
Type of button	Flat
Colour front ring	Chrome
Type of electric connection	Screw connection
Width opening	29.5 mm
Height opening	11 mm
Degree of protection (IP)	IP67/IP69K
Material front ring	Plastic
With front ring	TRUE
Supply voltage lamp	24 V
Switching function latching	FALSE
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	1
Number of contacts as change-over contact	0
Degree of protection (NEMA)	Other
