Opis

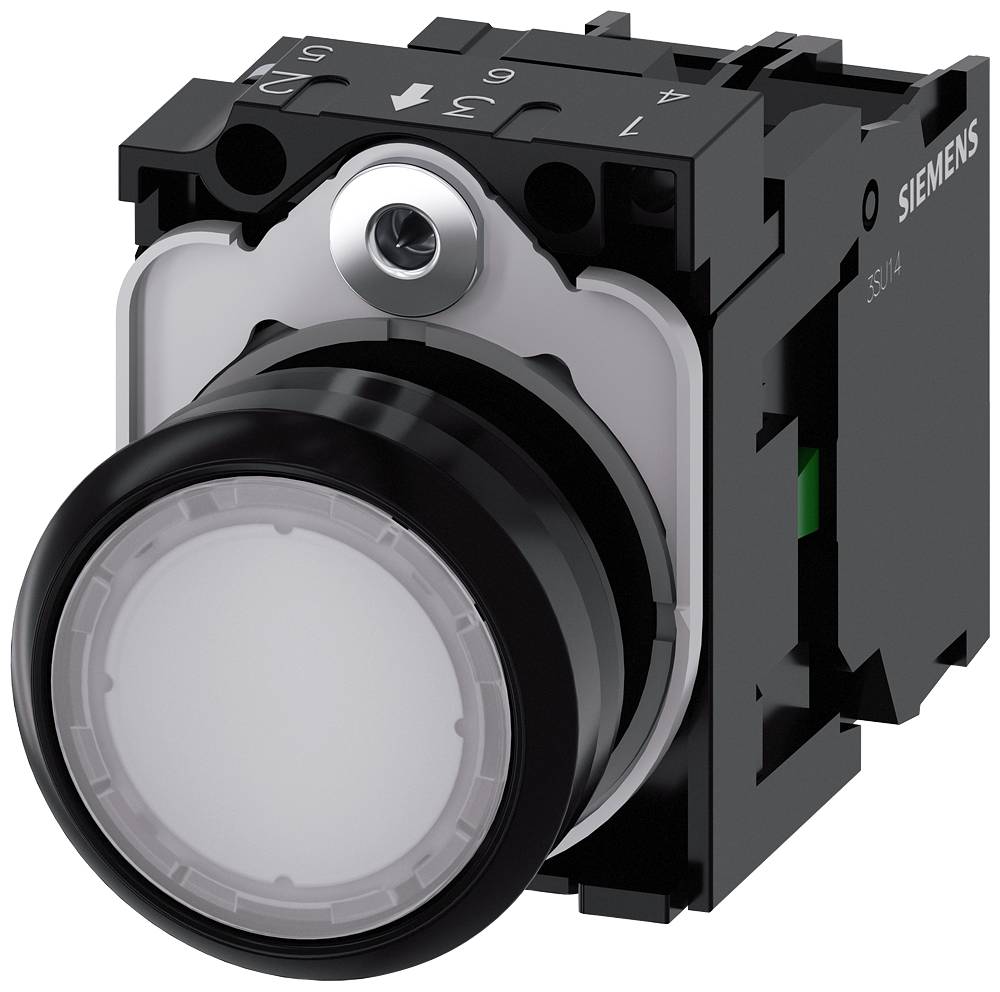

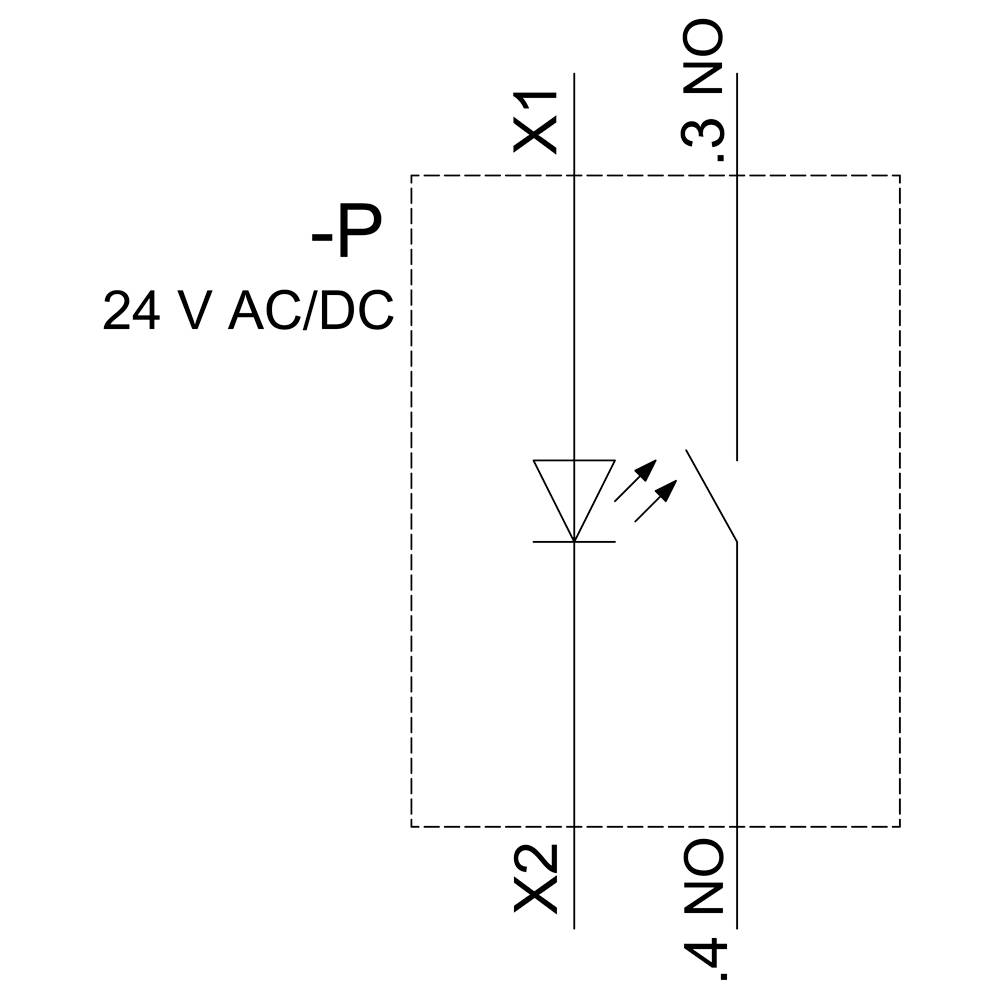

Illuminated pushbutton, 22 mm, round, plastic, white, pushbutton, flat, momentary contact type, with holder, 1 NO, LED module with integrated LED 24 V AC/DC, screw terminal Illuminated pushbuttons SIRIUS ACT for switching and controlling electrical loads.
Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of pushbuttons and signaling devices with global product approvals in four modern design lines of rugged genuine metal and high-grade plastic.
An innovative snap-on concept makes the task of installing a unit so easy that it can be done with one hand and without any special tools. Groove-free holes are adequate as mounting holes since full twist prevention is already integrated.

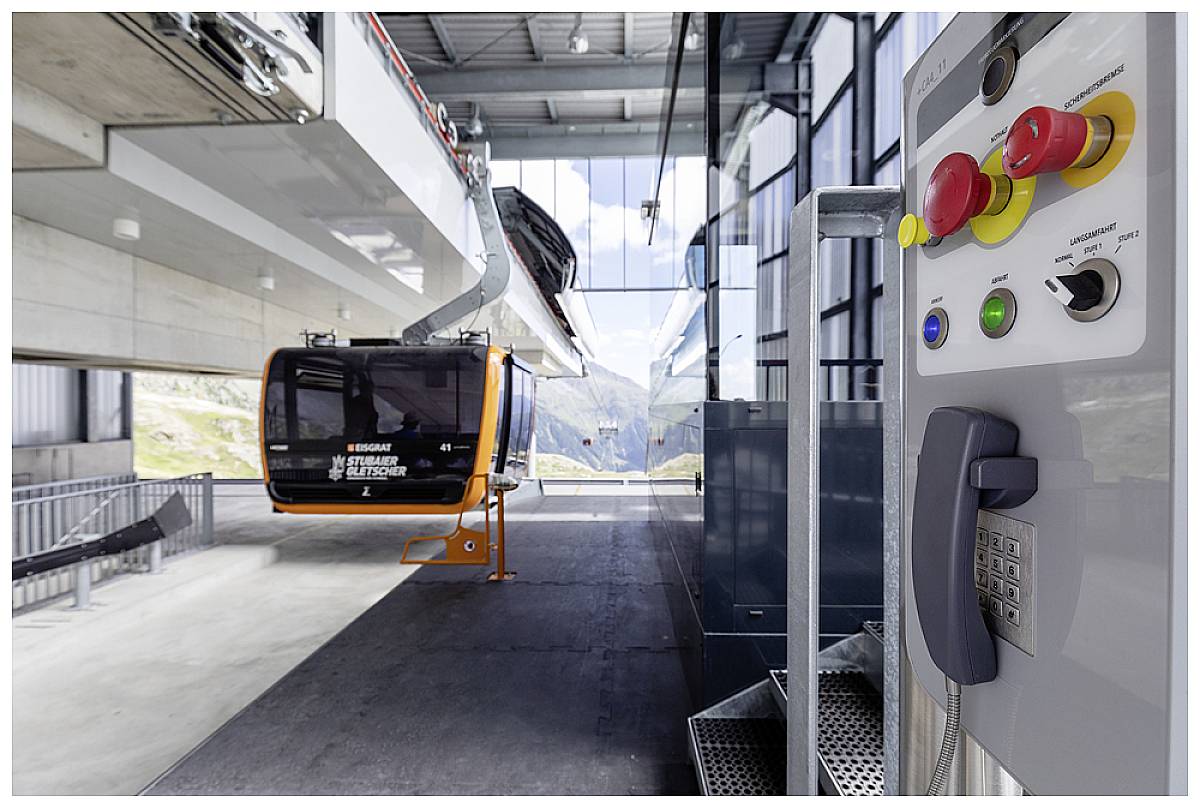

Thanks to the high degree of protection throughout, the rugged devices are suitable for use in industry and outdoors. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor caustic solutions can interfere with reliable operation.
As well as standard wiring, the devices can also be connected to the controller via PROFINET, AS-Interface or IO-Link. Doing so will help you to reduce wiring time and effort, minimize error sources and have more flexibility.
The graphical Online Configurator provides convenient support when selecting and ordering individual devices, enclosures and labels. Extensive documentation (e.g. manual, 3D data, terminal diagram) is available.

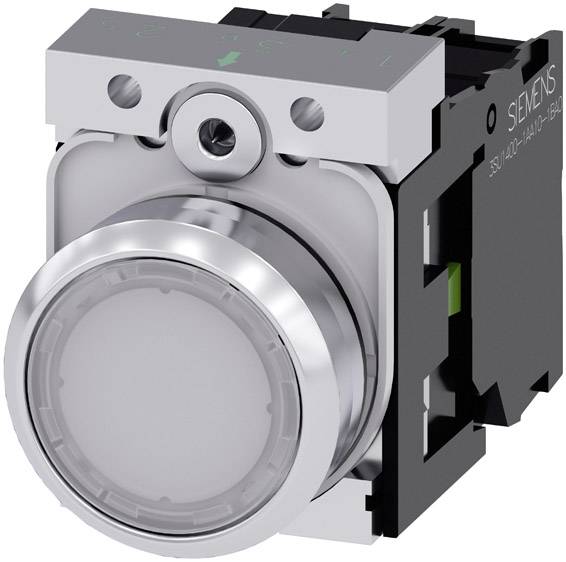

Versions available: Several colors, illuminated/non-illuminated, with/without inscription, latching/momentary contact operation, various button and front ring heights.
Note: Complete unit, delivery includes holders and modules.
SIRIUS ACT - Performance in action for control and signalling. Simply mounted, simply strong, simply perfect.
Isporuka uključuje
Uklj. Držač, kontaktni element i LED element.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SU11020AB601BA0
EAN koda: 4011209957190
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Boja |
bijela |
|---|---|

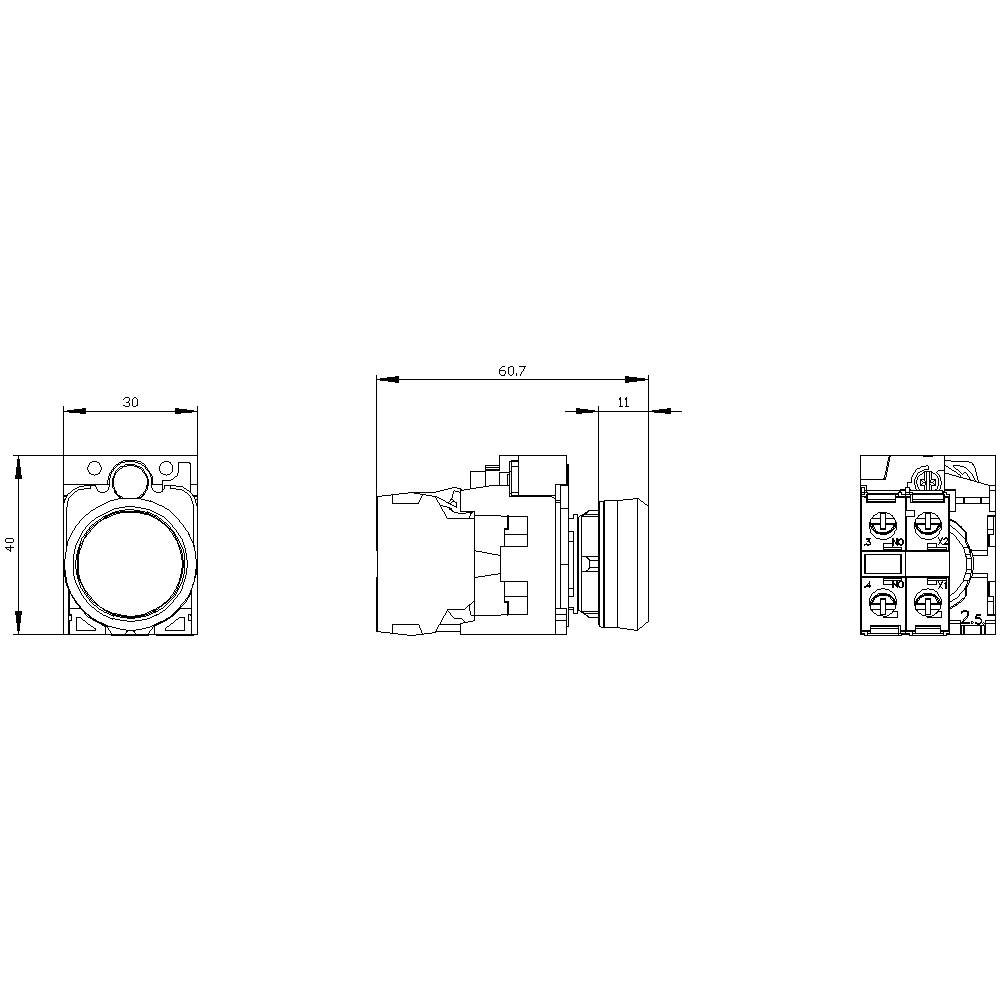

| Visina |
40 mm |
| Širina |
30 mm |
| Vrsta zaštite |
IP66 |
| Vrsta |
LED |
| Boja svjetla |
bijela |
| Priključak |
vijak |
| Vrsta kontakta |
1 zatvarač |
| Vrsta osvjetljenja |
površinska rasvjeta |
| Motiv ispisa |
bez |
| Određene značajke prekidača/tipkala |
prednji prsten od plastike |
| Funkcija |
s povratom |
| Položaj prebacivanja |
1 x off/on |
| Proizvođač-br. dijela |
3SU11020AB601BA0 |
| Ugardbeni Ø |
22 mm |
| Sklopni napon |
24 V/DC |
| Oblik |
okrugli |
| Mehanički vijek trajanja |
3000000 |
| Električni vijek trajanja |
10000000 |
| Maks. temperatura |
+70 °C |
| Min. temperatura |
-25 °C |
| Težina |
57 g |
| Hole diameter |
22.3 mm |
| Colour button |
White |
| Suitable for lighting |
TRUE |
| Number of command positions |
1 |
| Spring-return |
TRUE |
| Type of button |
Flat |
| Colour front ring |
Black |
| Type of electric connection |
Screw connection |
| Width opening |
29.5 mm |
| Height opening |
11 mm |
| Degree of protection (IP) |
IP67/IP69K |
| Material front ring |
Plastic |
| With front ring |
TRUE |
| Supply voltage lamp |
24 V |
| Switching function latching |
FALSE |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Degree of protection (NEMA) |
Other |
