Analog monitoring relay Fill level monitoring Resistance monitoring from 2 to 200 kohm 0vershoot and undershoot 24 to 240 V AC/DC 50 to 60 Hz DC and AC 2-step or 1-step control Tripping delay 0.5 to 10 s 1 change-over contact screw terminal Successor product for 3UG3501 Level monitoring relay with analog setting SIRIUS 3UG4 for level monitoring of conductive fluids to protect against overflow, dry running or leakage.
Worldwide use thanks to wide voltage supply range and international certificates. Device replacement possible without rewiring, thanks to removable terminals Can be flexibly adapted to various conductive liquids through analog setting of the sensitivity. Upstream or downstream function is selectable By means of the adjustable tripping delay time, it is also possible to compensate for shaft movements. Other resistance sensors can also be connected, e.g. suitable photoresistors, temperature sensors, position encoders based on resistors etc.
In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.
Available accessories include individually shortenable two-pole and 3-pole wire electrodes for easy mounting from above/below, as well as bow electrodes for installation from the side to allow higher filling levels and minimal space requirements. Additional accessories, such as unit labeling plates, push-in lugs and cover caps, are standardized for all relays.

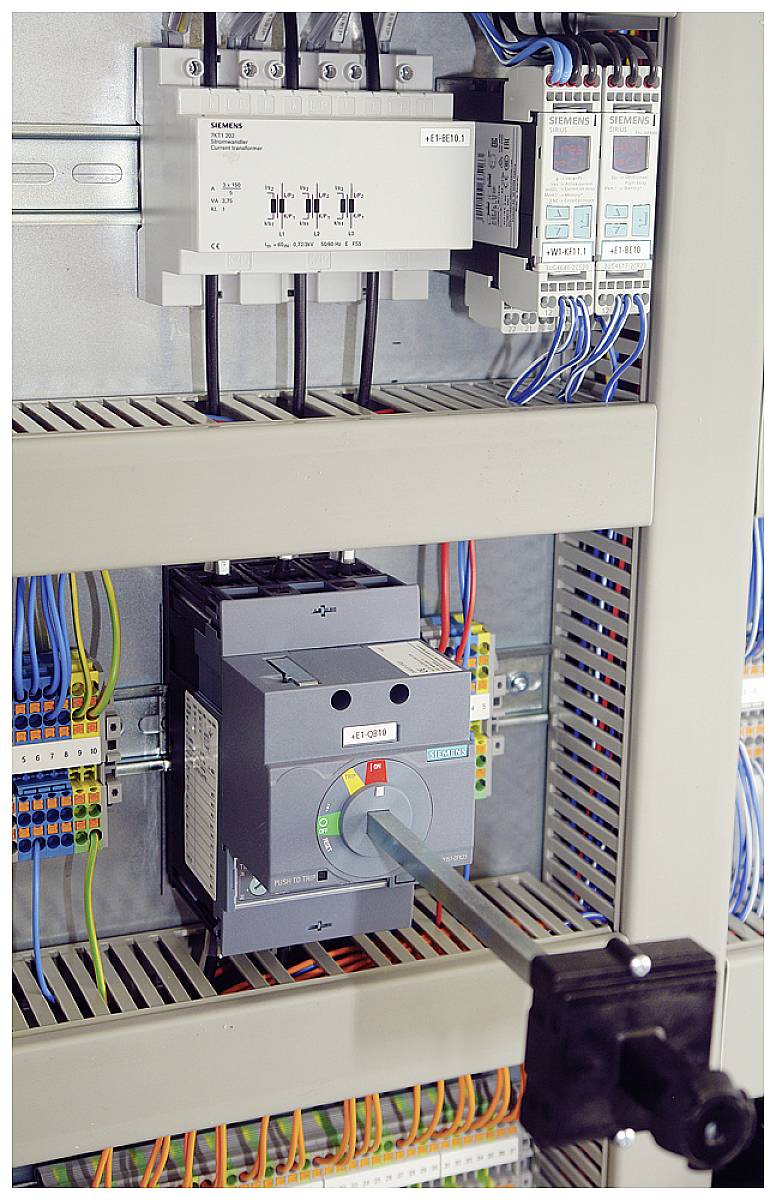

SIRIUS relays - one range for every application.
Isporuka uključuje
Nadzorni relej 240, 240 - 24, 24 V/DC, V/AC 1 preklopni 1 kom. Siemens 3UG4501-1AW30 nadzor razine napunjenosti
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3UG45011AW30
EAN koda: 4011209665309
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 502485 Siemens 3UG4501-1AW30 3UG45011AW30, 1x -04011209665309
Upute za rad i sigurnost 502485 Siemens 3UG4501-1AW30 3UG45011AW30, 1x -04011209665309
Tehnički podaci

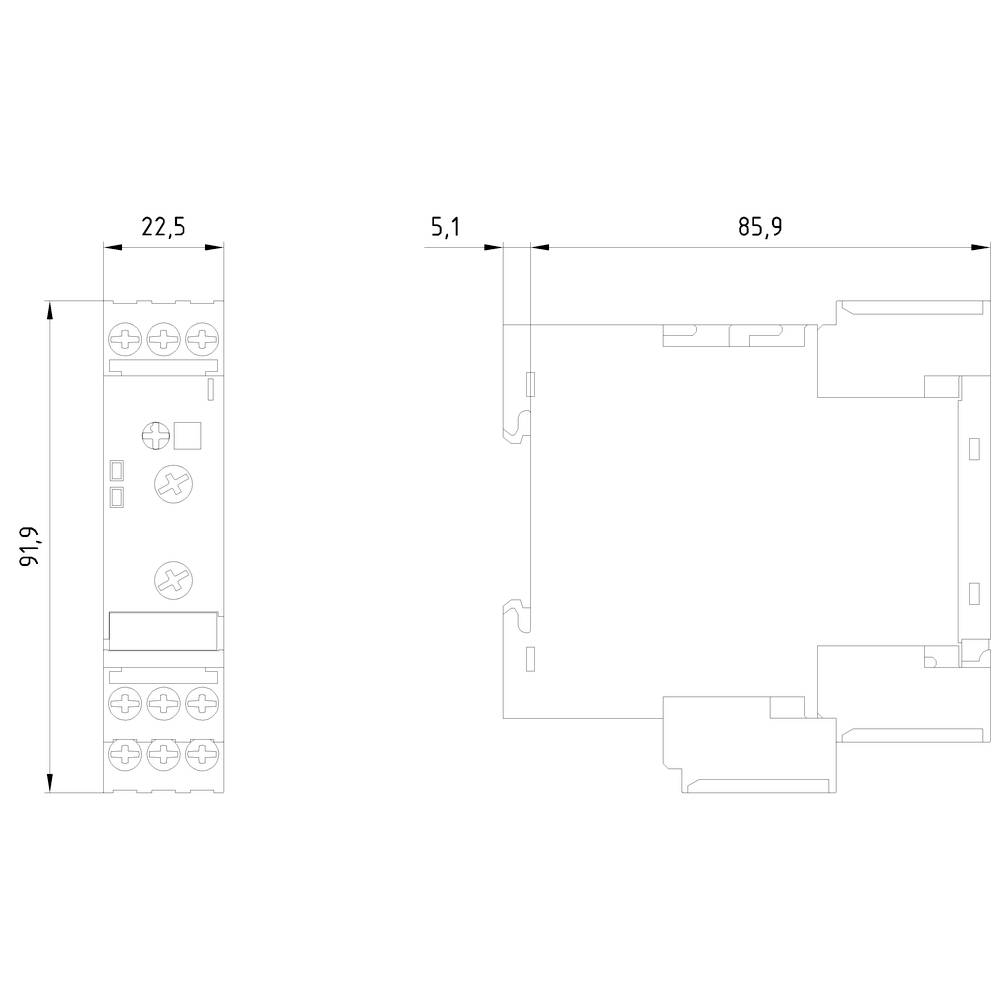

| Dubina |
91 mm |
|---|---|
| Visina |
92 mm |
| Dužina |
86 mm |
| Širina |
22.5 mm |
| Vrsta zaštite |
IP20 |
| Priključak |
vijak |
| Vrsta kontakta |
1 prebacivanje |
| Funkcije |
nadzor razine |
| Proizvođač-br. dijela |
3UG45011AW30 |
| Područje podešavanja struje (maks.) |
3 A |
| Područje podešavanja struje (min.) |
1 A |
| Radni napon |
240 V |
| min. pogonski napon |
24 V/DC |
| Mehanički vijek trajanja |
1.0E7 |
| Električni vijek trajanja |
100.000 |
| Pogonski napon maks. |
240 V/DC |
| Maks. temperatura |
+60 °C |
| Min. temperatura |
-25 °C |
| Width |
22.5 |
| Height |
92 mm |
| Depth |
91 mm |
| With detachable clamps |
TRUE |
| Number of inputs for electrodes |
1 |
| Response value sensitivity adjustable |
TRUE |
| Type of electric connection |
Screw connection |
| Max. permitted off-delay time |
10 s |
| Min. adjustable off-delay time |
0.5 s |
| Max. permitted operate delay time |
10 s |
| Min. adjustable operate delay time |
0.5 s |
| Physical measurement principle |
Other |
| Voltage type for actuating |
AC/DC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
1 |
