Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1442227
EAN koda: 4046356533362
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

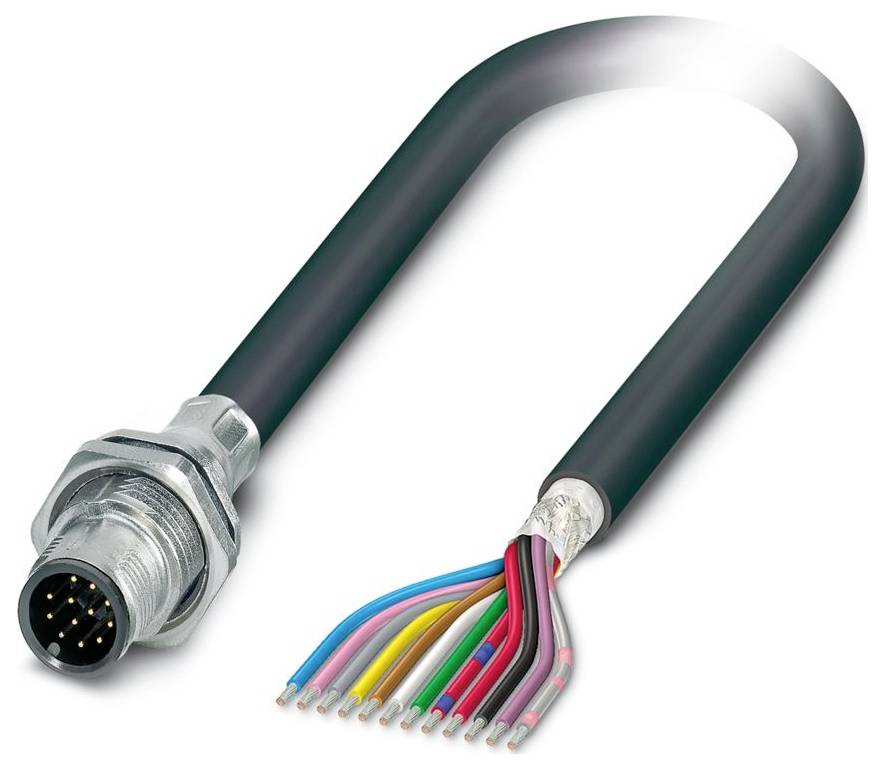

Podatkovna tablica 3584676 Phoenix Contact 1442227 priključak uređaja Ukupan broj polova: 12 1 St.
Tehnički podaci
| Tip |
SACCBP-MS-12CON-M16/1,0-PVCSCO |
|---|---|
| Vrsta proizvoda |
priključak uređaja |
| Ukupan broj polova |
12 |
| Sadržaj |
1 St. |
| Maks. temperatura |
85 °C |
| Min. temperatura |
85 °C |
| Proizvođač-br. dijela |
1442227 |
| Broj polova |
12 |
| Duljina kabela |
1 m |
| Mounting method |
Back wall mounting |
| Core cross section |
0.14 mm² |
| Material core insulation |
Polyvinyl chloride (PVC) |
| Rated voltage |
30 V |
| Cable length |
1 mm |
| Housing material |
Other |
| Ambient temperature |
85-85 °C |
| Operating temperature |
-25-85 °C |
| Inflammability class of insulation material according to UL94 |
V0 |
| With shield connection |
TRUE |
| Material of contact surface |
Other |
| Type of plug-in contact, inner side |
None |
| Type of plug-in contact, outer side |
Male (plug) |
| With PE-connection |
FALSE |
| Degree of protection (IP), mounted |
Other |
| Rated current In |
1.5 A |
| Min. number of insertion cycles |
100 |
| Number of control contacts |
12 |
| Screw-in thread |
M16 |
