Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3046671
EAN koda: 4055626018867
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

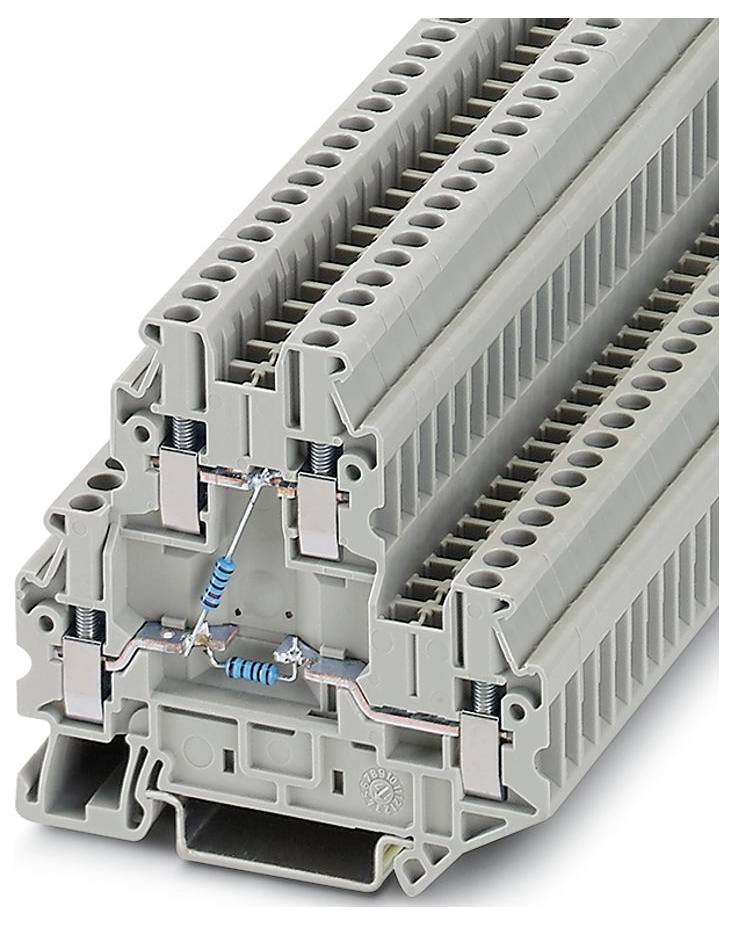

Podatkovna tablica 3580809 Phoenix Contact 3046671 redna stezaljka za ugradne elemente siva 50 St.
Tehnički podaci
| Vrsta proizvoda |
redna stezaljka za ugradne elemente |
|---|---|
| Boja |
siva |
| Proizvođač-br. dijela |
3046671 |
| Sadržaj |
50 St. |
| Tip |
UTTB 2,5-2R/NAMUR |
| dim. |
(Š x V x D) 5.2 x 69.9 x 64.4 mm |
| Širina |
5.2 mm |
| Visina |
69.9 mm |
| Dubina |
64.4 mm |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Colour |
Grey |
| Width |
5.2 mm |
| Height |
69.9 mm |
| Depth |
64.4 mm |
| Inflammability class of insulation material according to UL94 |
V0 |
| Closing plate required |
TRUE |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Number of levels |
2 |
| Number of clamp positions per level |
2 |
| Internally connected stages |
FALSE |
| Connectable conductor cross section solid-core |
0.14-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.14-0.14 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14-4 mm² |
| Connectable conductor cross section multi-wired |
0.14-1.5 mm² |
| Material insulation body |
Other |
