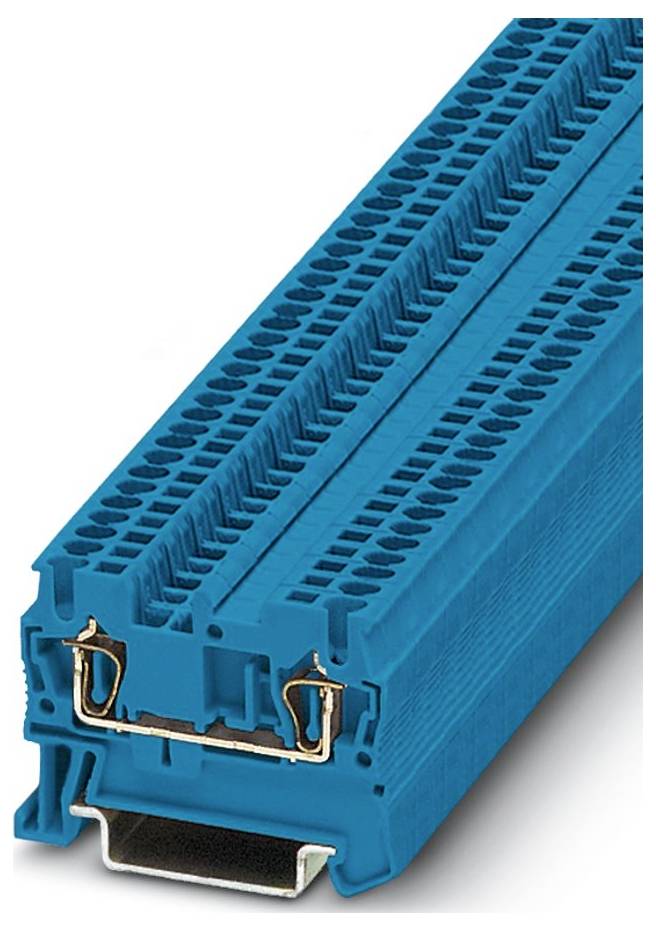

Phoenix Contact 3031089 prolazna stezaljka plava boja 50 St.

Marka Phoenix Contact

(0 ocen)

53,99 EUR

(= 406,79 kn)

63,99 EUR 16% popusta

Proizvajalčeva koda: 3031089

EAN koda: 4017918186630

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	prolazna stezaljka
Boja	plava boja
Nazivna struja	17.5 A
Nazivna struja - zaokružena	17.5 A
Nazivni napon	500 V
Proizvođač-br. dijela	3031089
Sadržaj	50 St.
Tip	ST 1,5 BU
dim.	(Š x V x D) 4.2 x 48.5 x 36.5 mm
Širina	4.2 mm
Visina	48.5 mm
Dubina	36.5 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Blue
Width	4.2 mm
Height	48.5 mm
Depth	36.5 mm
Rated voltage	500 V
Operating temperature	-60-110 °C
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.08-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-1.5 mm²
Material insulation body	Other
Rated current In	17.5 A
Explosion-tested version 'Ex e'	TRUE
Suitable for conductor material	Aluminium/copper
