Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2906446
EAN koda: 4055626077925
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

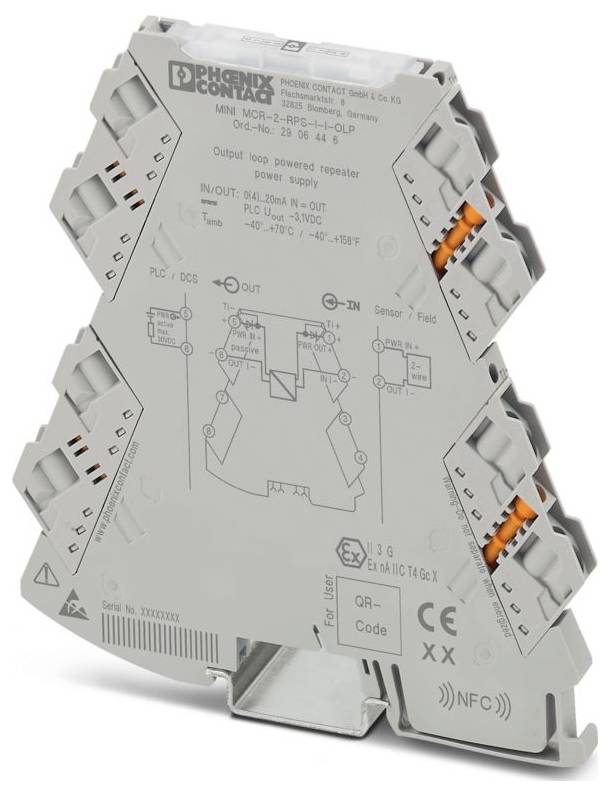

Podatkovna tablica 3580029 Phoenix Contact MINI MCR-2-RPS-I-I-OLP 2906446 izolator signala 1 St.
Tehnički podaci
| Tip |
MINI MCR-2-RPS-I-I-OLP |
|---|---|
| Vrsta proizvoda |
izolator signala |
| dim. |
(D x Š x V) 119.2 x 6.2 x 109.81 mm |
| Priključak |
vijak |
| Pogonski napon | |
| Sadržaj |
1 St. |
| Širina |
6.2 mm |
| Visina |
109.81 mm |
| Dužina |
119.2 mm |
| RoHS-konforno | |
| Poprečni presjek fleksibilan (maks.) |
2.5 mm² |
| Poprečni presjek kruti (maks.) |
2.5 mm² |
| Poprečni presjek fleksibilni (min.) |
0.14 mm² |
| Poprečni presjek kruti (min.) |
0.2 mm² |
| Dubina |
119.2 mm |
| Vrsta zaštite |
IP20 |
| Mounting method |
Snap mounting support rail |
| Width |
6.2 mm |
| Height |
109.81 mm |
| Depth |
119.2 mm |
| Number of channels |
1 |
| Power consumption |
0.6 W |
| Type of power supply |
Other |
| Operating temperature |
-40-70 °C |
| Type of electric connection |
Screw connection |
| Degree of protection (IP) |
IP20 |
| Number of output ranges +10 V ... -10 V |
0 |
| Number of output ranges +5 V ... -5 V |
0 |
| Number of output ranges 0 V ... 1 V |
0 |
| Number of output ranges 0 mA ... 10 mA |
0 |
| Number of output ranges 0 V ... 10 V |
0 |
| Number of output ranges 0 mV ... 100 mV |
0 |
| Number of output ranges 0 V ... 2 V |
0 |
| Number of output ranges 0 V ... 2.5 V |
0 |
| Number of output ranges 0 mA ... 20 mA |
1 |
| Number of output ranges 0 V ... 20 V |
0 |
| Number of output ranges 0 mV ... 200 mV |
0 |
| Number of output ranges 0 V ... 24 V |
0 |
| Number of output ranges 0 V ... 30 V |
0 |
| Number of output ranges 0 mV ... 300 mV |
0 |
| Number of output ranges 0 mA ... 5 mA |
0 |
| Number of output ranges 0 V ... 5 V |
0 |
| Number of output ranges 0 mV ... 500 mV |
0 |
| Number of output ranges 0 mV ... 60 mV |
0 |
| Number of output ranges -1 V ... +1 V |
0 |
| Number of output ranges 1 V ... 5 V |
0 |
| Number of output ranges -10 mA ... +10 mA |
0 |
| Number of output ranges -10 V ... +10 V |
0 |
| Number of output ranges 10 V ... 0 V |
0 |
| Number of output ranges 10 V ... 2 V |
0 |
| Number of output ranges -100 mV ... +100 mV |
0 |
| Number of output ranges -2 V ... +2 V |
0 |
| Number of output ranges 2 V ... 10 V |
0 |
| Number of output ranges -2.5 V ... +2.5 V |
0 |
| Number of output ranges -20 mA ... +20 mA |
0 |
| Number of output ranges -20 V ... +20 V |
0 |
| Number of output ranges 20 mA ... 0 mA |
0 |
| Number of output ranges 20 mA ... 4 mA |
0 |
| Number of output ranges -300 mV ... +300 mV |
0 |
| Number of output ranges 4 mA ... 20 mA |
1 |
| Number of output ranges -5 mA ... +5 mA |
0 |
| Number of output ranges -5 V ... +5 V |
0 |
| Number of output ranges 5 V ... 0 V |
0 |
| Number of output ranges 5 V ... 1 V |
0 |
| Number of output ranges -500 mV ... +500 mV |
0 |
| Number of output ranges -60 mV ... +60 mV |
0 |
| Number of input ranges +10 V ... -10 V |
0 |
| Number of input ranges +5 V ... -5 V |
0 |
| Number of input ranges 0 V ... 1 V |
0 |
| Number of input ranges 0 mA ... 10 mA |
0 |
| Number of input ranges 0 V ... 10 V |
0 |
| Number of input ranges 0 mV ... 100 mV |
0 |
| Number of input ranges 0 V ... 2 V |
0 |
| Number of input ranges 0 V ... 2.5 V |
0 |
| Number of input ranges 0 mA ... 20 mA |
1 |
| Number of input ranges 0 V ... 20 V |
0 |
| Number of input ranges 0 mV ... 200 mV |
0 |
| Number of input ranges 0 V ... 24 V |
0 |
| Number of input ranges 0 V ... 30 V |
0 |
| Number of input ranges 0 mV ... 300 mV |
0 |
| Number of input ranges 0 mA ... 5 mA |
0 |
| Number of input ranges 0 V ... 5 V |
0 |
| Number of input ranges 0 mV ... 500 mV |
0 |
| Number of input ranges 0 mV ... 60 mV |
0 |
| Number of input ranges -1 V ... +1 V |
0 |
| Number of input ranges 1 V ... 5 V |
0 |
| Number of input ranges -10 mA ... +10 mA |
0 |
| Number of input ranges -10 V ... +10 V |
0 |
| Number of input ranges 10 V ... 0 V |
0 |
| Number of input ranges 10 V ... 2 V |
0 |
| Number of input ranges -100 mV ... +100 mV |
0 |
| Number of input ranges -2 V ... +2 V |
0 |
| Number of input ranges 2 V ... 10 V |
0 |
| Number of input ranges -2.5 V ... +2.5 V |
0 |
| Number of input ranges -20 mA ... +20 mA |
0 |
| Number of input ranges -20 V ... +20 V |
0 |
| Number of input ranges 20 mA ... 0 mA |
0 |
| Number of input ranges 20 mA ... 4 mA |
0 |
| Number of input ranges -300 mV ... +300 mV |
0 |
| Number of input ranges 4 mA ... 20 mA |
1 |
| Number of input ranges -5 mA ... +5 mA |
0 |
| Number of input ranges -5 V ... +5 V |
0 |
| Number of input ranges 5 V ... 0 V |
0 |
| Number of input ranges 5 V ... 1 V |
0 |
| Number of input ranges -500 mV ... +500 mV |
0 |
| Number of input ranges -60 mV ... +60 mV |
0 |
| Load |
600-600 Ohm |
| Inherently safe according to EN 60947-5-6 NAMUR |
FALSE |
| Galvanic separation between inputs |
TRUE |
| Construction type of device |
Built-in device |
| Malfunction message output |
FALSE |
| Temperature drift |
0.001 %/K |
| SIL according to IEC 61508 |
None |
