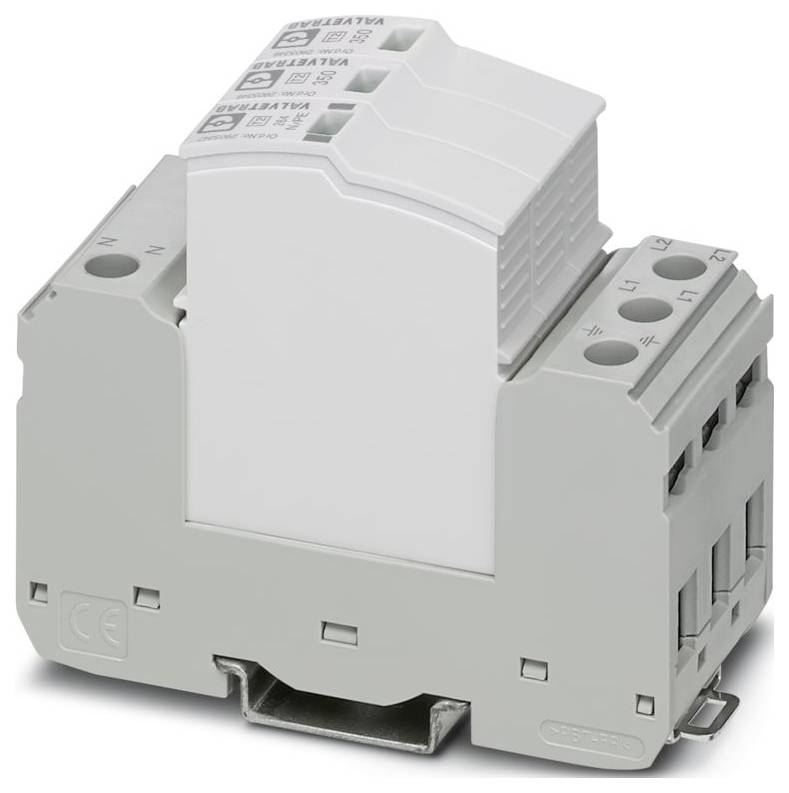

Phoenix Contact 2905343 VAL-SEC-T2-2S-350 odvodnik prenapona 1 St.

Marka Phoenix Contact

(0 ocen)

229,99 EUR

(= 1.732,86 kn)

Proizvajalčeva koda: 2905343

EAN koda: 4046356948203

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	odvodnik prenapona
Nazivni napon	240 V/AC 415 V/AC
Vrsta zaštite	IP20
Proizvođač-br. dijela	2905343
dim.	(Š x V x D) 37.3 x 89.9 x 74.5 mm
Širina	37.3 mm
Visina	89.9 mm
Dubina	74.5 mm
RoHS-konforno
Sadržaj	1 St.
Mounting method	DIN rail (top hat rail) 35 mm
Construction size	Other
Voltage protection level	1.9 kV
Max. continuous voltage AC	350 V
Nominal discharge surge current (8/20)	20 kA
Category type 2	TRUE
Voltage protection level L-N	1.5 kV
Signalling at the device	Optical
Degree of protection (IP)	IP20
Voltage protection level N-PE	1.5 kV
Integrated backup fuse	TRUE
Max. conductor cross section solid (solid, stranded)	2.5 mm²
Max. conductor cross section flexible (fine-strand)	16 mm²
System configuration DC	FALSE
System configuration IT	FALSE
System configuration TN	FALSE
System configuration TN-C	FALSE
System configuration TN-S	TRUE
System configuration TT	FALSE
System configuration other	FALSE
System configuration TN-C-S	FALSE
Max. discharge surge current (8/20)	40 kA
Short-circuit breaking capacity (Isccr)	50 kA
Max. overcurrent protection device, parallel connection (fuse)	315 A
Max. overcurrent protection device, series connection (fuse)	40 A
Leakage-current free	FALSE
