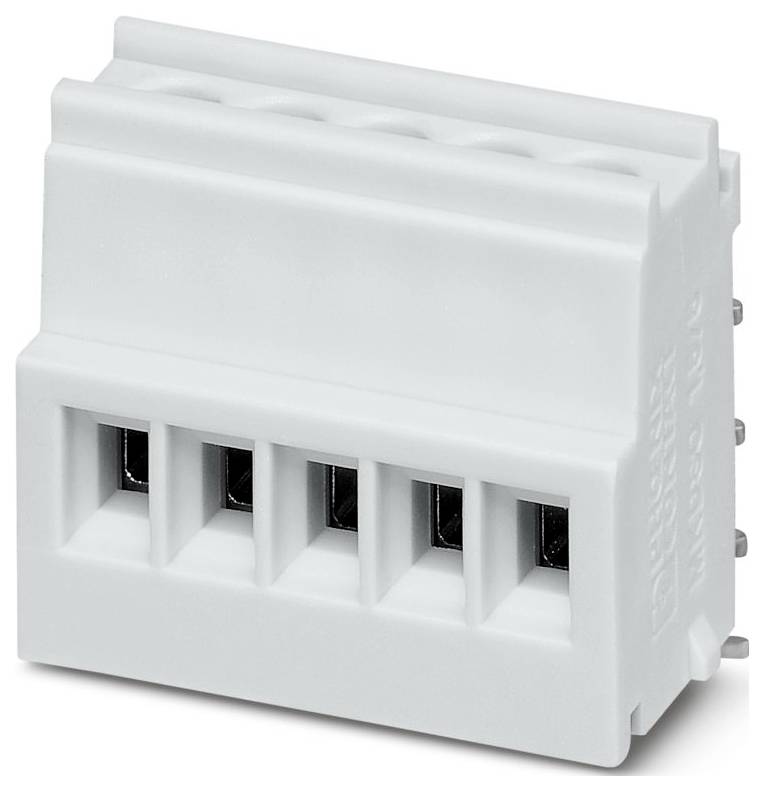

Phoenix Contact 2278416 stezaljka za tiskane ploče svijetlosiva 1 St.

Marka Phoenix Contact

(0 ocen)

8,49 EUR

(= 63,97 kn)

Proizvajalčeva koda: 2278416

EAN koda: 4046356293020

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Tip	MKDSO 1,5/ 5-R-3,5 KMGY
Vrsta proizvoda	stezaljka za tiskane ploče
RM	3.5 mm
Broj redova	1
Broj polova po redu	5
Nazivna struja	8 A
Nazivna struja - zaokružena	8 A
Boja	svijetlosiva
Proizvođač-br. dijela	2278416
Sadržaj	1 St.
Visina	21.25 mm
Boja kućišta	siva
Height	21.25 mm
Housing colour	Grey
Rated voltage	160 V
Operating temperature	-40-105 °C
Type of fastening	Solder
Inflammability class of insulation material according to UL94	V0
Number of levels	1
Rated surge voltage	2.5 kV
Overvoltage category	III
Pollution degree	2
Connection type conductor	Screw connection
Connection type PCB	Soldering connection
Diameter connection pin	1.2 mm
Length pin	2.3 mm
Material connection surface	Tin
Modular spacing connections	3.5 mm
Type of banding	Carton (for SMD)
Connectable conductor cross section solid-core	0.14-1.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.25-0.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.14-1.5 mm²
Connectable conductor cross section multi-wired	0.08-0.5 mm²
Material insulation body	Other
Type of PCB fastening	Connecting contact
Rated current In	8 A
Number of electrical connections	5
