Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2199773
EAN koda: 4046356464253
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

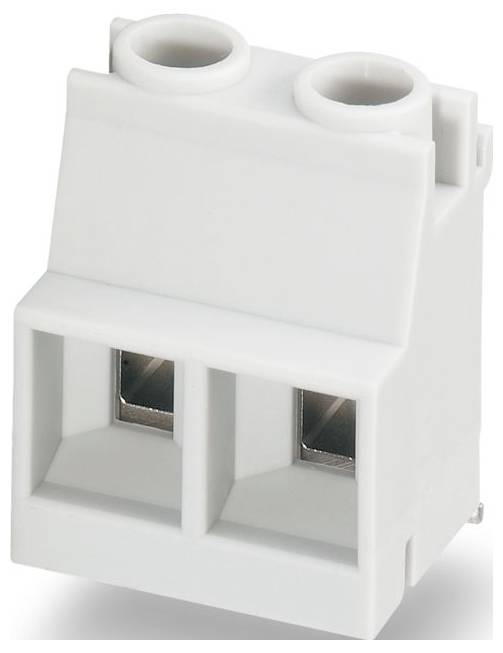

Podatkovna tablica 3578660 Phoenix Contact 2199773 stezaljka za tiskane ploče svijetlosiva 50 St.
Tehnički podaci
| Tip |
MKDSO 2,5 HV/ 2R-7,5 KMGY |
|---|---|
| Vrsta proizvoda |
stezaljka za tiskane ploče |
| RM |
7.5 mm |
| Broj redova |
1 |
| Broj polova po redu |
2 |
| Nazivna struja |
24 A |
| Nazivna struja - zaokružena |
24 A |
| Boja |
svijetlosiva |
| Proizvođač-br. dijela |
2199773 |
| Sadržaj |
50 St. |
| Visina |
22.25 mm |
| Boja kućišta |
siva |
| Height |
22.25 mm |
| Housing colour |
Grey |
| Rated voltage |
630 V |
| Operating temperature |
-40-105 °C |
| Type of fastening |
Solder |
| Inflammability class of insulation material according to UL94 |
V0 |
| Number of levels |
1 |
| Rated surge voltage |
6 kV |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Connection type conductor |
Screw connection |
| Connection type PCB |
Soldering connection |
| Diameter connection pin |
1.4 mm |
| Length pin |
2.25 mm |
| Material connection surface |
Tin |
| Modular spacing connections |
7.5 mm |
| Connectable conductor cross section solid-core |
0.2-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2-2.5 mm² |
| Connectable conductor cross section multi-wired |
0.2-0.75 mm² |
| Material insulation body |
Other |
| Type of PCB fastening |
Connecting contact |
| Rated current In |
24 A |
