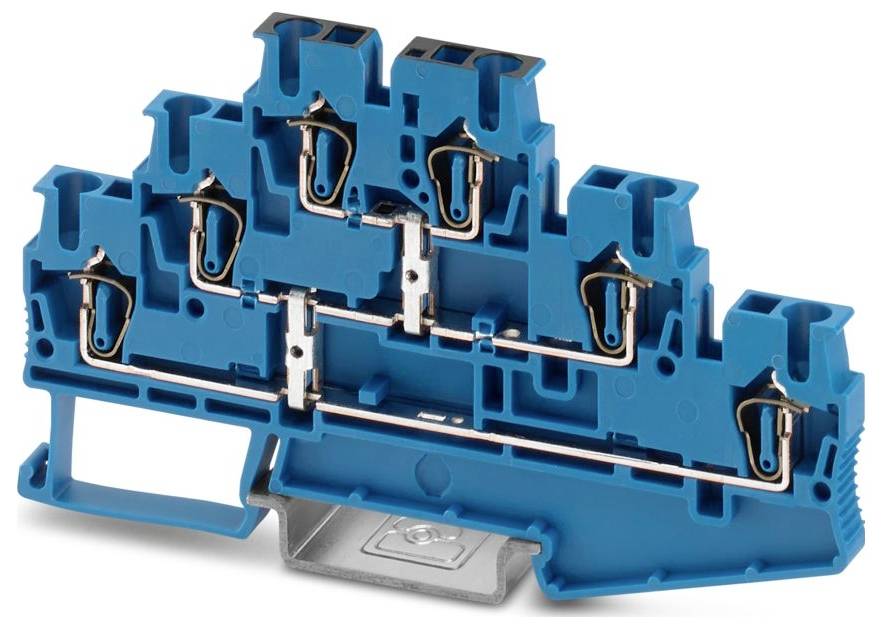

Phoenix Contact 1025465 višekatna stezaljka plava boja 50 St.

Marka Phoenix Contact

(0 ocen)

415,00 EUR

(= 3.126,82 kn)

Proizvajalčeva koda: 1025465

EAN koda: 4055626517247

Registrirana blagovna znamka: Phoenix Contact

Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH

Naslov proizvajalca: Flachsmarktstr. 8

Poštna številka proizvajalca: 32825

Kraj proizvajalca: Blomberg

Država proizvajalca: Germany

Telefon proizvajalca: +4905235300

Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	višekatna stezaljka
Boja	plava boja
Nazivna struja	20 A
Nazivna struja - zaokružena	20 A
Nazivni napon	500 V
Proizvođač-br. dijela	1025465
Sadržaj	50 St.
Tip	ST 2,5-3PV BU
dim.	(Š x V x D) 5.2 x 99.5 x 58 mm
Širina	5.2 mm
Visina	99.5 mm
Dubina	58 mm
Mounting method	DIN rail (top hat rail) 35 mm
Colour	Blue
Width	5.2 mm
Height	99.5 mm
Depth	58 mm
Rated voltage	500 V
Inflammability class of insulation material according to UL94	V0
Closing plate required	TRUE
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of levels	3
Number of clamp positions per level	2
Internally connected stages	TRUE
Connectable conductor cross section solid-core	0.08-4 mm²
Connectable conductor cross section fine-strand with cable end sleeve	0.14-0.14 mm²
Connectable conductor cross section fine-strand without cable end sleeve	0.08-2.5 mm²
Material insulation body	Other
Rated current In	20 A
Suitable for conductor material	Aluminium/copper
