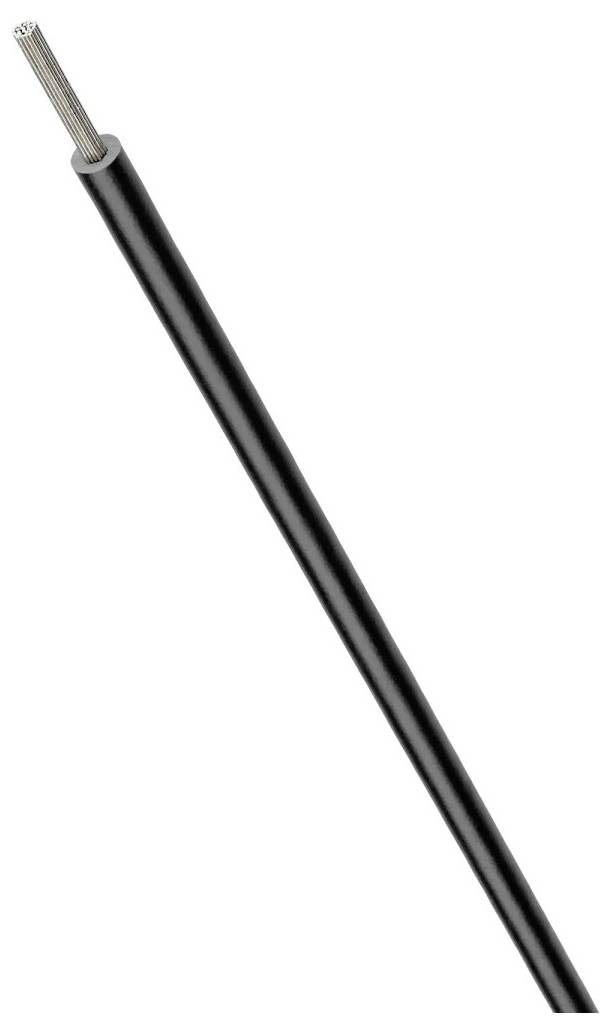

LAPP kontrolni vod 0051104/200 200 m

Marka LAPP

(0 ocen)

154,99 EUR

(= 1.167,77 kn)

Kod proizvoda: 3476178
EAN: 4044777294169
Procijenjena isporuka:14.10.2026 - 16.10.2026

Opis

ÖLFLEX® HEAT 180 SiF 1X1.5 RD jednožilni; 1X1.5; crveni; U 0 /U: 300/500 V; silikon; -50°C - 180°C; fiksna instalacija

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 0051104/200

EAN koda: 4044777294169

Registrirana blagovna znamka: LAPP

Ime proizvajalca: Lapp U.I. GmbH

Naslov proizvajalca: Schulze-Delitzsch-Str. 25

Poštna številka proizvajalca: 70565

Kraj proizvajalca: Stuttgart

Država proizvajalca: Germany

Telefon proizvajalca: +49711783801

Elektronski kontakt proizvajalca: http://www.lappkabel.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 3476178 LAPP kontrolni vod 0051104/200 200 m

Upute za rad i sigurnost 3476178 LAPP kontrolni vod 0051104/200 200 m

Tehnički podaci

Sadržaj	200 m
Proizvođač-br. dijela	0051104/200
Tip	ÖLFLEX® HEAT 180 SiF 1X1,5 RD
Nominal cross section conductor	1.5 mm²
Material core insulation	Other
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Conductor material	Copper
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-50-180 °C
Core colour	Red
Nominal voltage U0	300 V
Number of cores	1
Outer diameter approximate	2.8 mm
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Tinned
Min. permitted bending radius, stationary application/permanent installation	16.8 mm
Specification core insulation	Other
Cable geometry	Round
Identification/coding colour core	Red
Core identification according to HD 308 S2	FALSE
Circuit integrity according to BS 6387 CWZ	FALSE
Circuit integrity according to EN 50200 annex E	FALSE
Circuit integrity according to BS 8434-2	FALSE
Circuit integrity according to BS 8491	No
Circuit integrity according to IEC 60331-21	FALSE
Flame retardant according to EN 60332-1-2	TRUE
Flame retardant according to EN 60332-3-21 (Cat A F/R)	FALSE
Flame retardant according to EN 60332-3-22 (Cat A)	FALSE
Flame retardant according to EN 60332-3-23 (Cat B)	FALSE
Flame retardant according to EN 60332-3-24 (Cat C)	FALSE
Flame retardant according to EN 60332-3-25 (Cat D)	FALSE
Halogen free according to EN 60754-1	TRUE
Halogen free according to EN 60754-2	FALSE
Halogen free according to EN 60754-3	FALSE
Vrsta proizvoda	kontrolni vod
