Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1991118
EAN koda: 4046356104739
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci

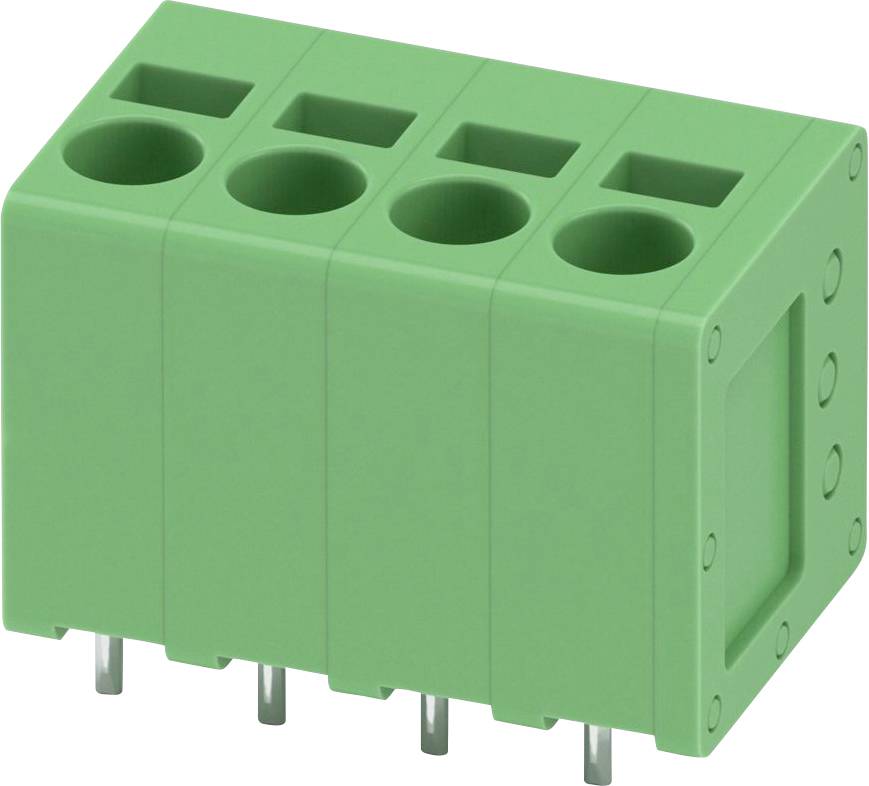

| Tip |
SPT 2,5/ 4-V-5,0 |
|---|---|
| Vrsta proizvoda |
stezaljka za tiskane ploče |
| RM |
5 mm |
| Broj redova |
1 |
| Broj polova |
4 |
| Nazivna struja |
24 A |
| Nazivna struja - zaokružena |
24 A |
| Boja |
zelena |
| Proizvođač-br. dijela |
1991118 |
| Sadržaj |
120 St. |
| Visina |
16.9 mm |
| Height |
16.9 mm |
| Housing colour |
Green |
| Rated voltage |
400 V |
| Operating temperature |
-40-105 °C |
| Inflammability class of insulation material according to UL94 |
V0 |
| Number of levels |
1 |
| Rated surge voltage |
4 kV |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Connection type conductor |
Spring clamp connection |
| Connection type PCB |
Soldering connection |
| Diameter connection pin |
1.2 mm |
| Length pin |
2.5 mm |
| Material connection surface |
Tin |
| Modular spacing connections |
5 mm |
| Type of banding |
Carton (for SMD) |
| Connectable conductor cross section solid-core |
0.2-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2-2.5 mm² |
| Connectable conductor cross section multi-wired |
4-4 mm² |
| Material insulation body |
Other |
| Rated current In |
24 A |
| Number of electrical connections |
4 |
