Opis
ÖLFLEX® SMART 108 4G2.5 upravljački kabel; 4G2.5; U 0 /U: 300/500 V; PVC; Identifikacija žice: brojevi; fleksibilan; VDE registarski broj: 8639
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 14040099/500
EAN koda: 4044776761082
Registrirana blagovna znamka: LAPP
Ime proizvajalca: Lapp U.I. GmbH
Naslov proizvajalca: Schulze-Delitzsch-Str. 25
Poštna številka proizvajalca: 70565
Kraj proizvajalca: Stuttgart
Država proizvajalca: Germany
Telefon proizvajalca: +49711783801
Elektronski kontakt proizvajalca: http://www.lappkabel.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Podatkovna tablica 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Upute za rad i sigurnost 3363787 LAPP kontrolni vod 4 x 2.5 mm² 14040099/500 500 m
Tehnički podaci
| Sadržaj |
500 m |
|---|---|
| Presjek |
4 x 2.5 mm² |
| Poprečni presjek (po žili) |
2.5 mm² |
| Proizvođač-br. dijela |
14040099/500 |
| Tip |
ÖLFLEX® SMART 108 4G2,5 |
| Nazivni napon |
500 V |
| Vanjski Ø |
8.9 mm |
| Nazivni napon U0 |
300 V |
| Broj žica |
4 x |
| Nominal cross section conductor |
2.5 mm² |
| Material core insulation |
Polyvinyl chloride (PVC) |

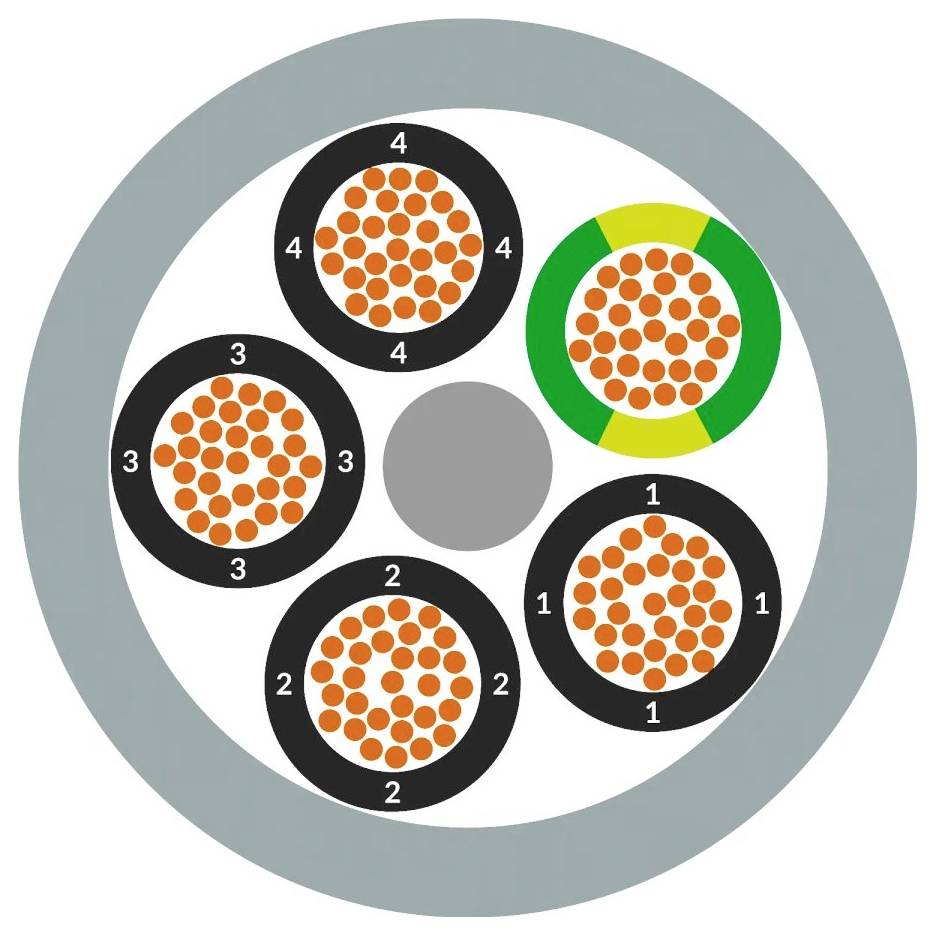

| Core identification |
Numbers |
| Flame retardant |
According to IEC/EN 60332-1-2 |
| Nominal voltage U |
500 V |
| Colour outer sheath |
Grey |
| Conductor material |
Copper |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature after assembling without vibration |
-40-80 °C |
| Nominal voltage U0 |
300 V |
| Number of cores |
4 |
| Outer diameter approximate |
8.9 mm |
| With protective conductor |
TRUE |
| Low smoke (according to EN 61034-2) |
FALSE |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Min. permitted bending radius, moving application/free movement |
133.5 mm |
| Min. permitted bending radius, stationary application/permanent installation |
35.6 mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
FALSE |
| Vrsta proizvoda |
kontrolni vod |
