Opis

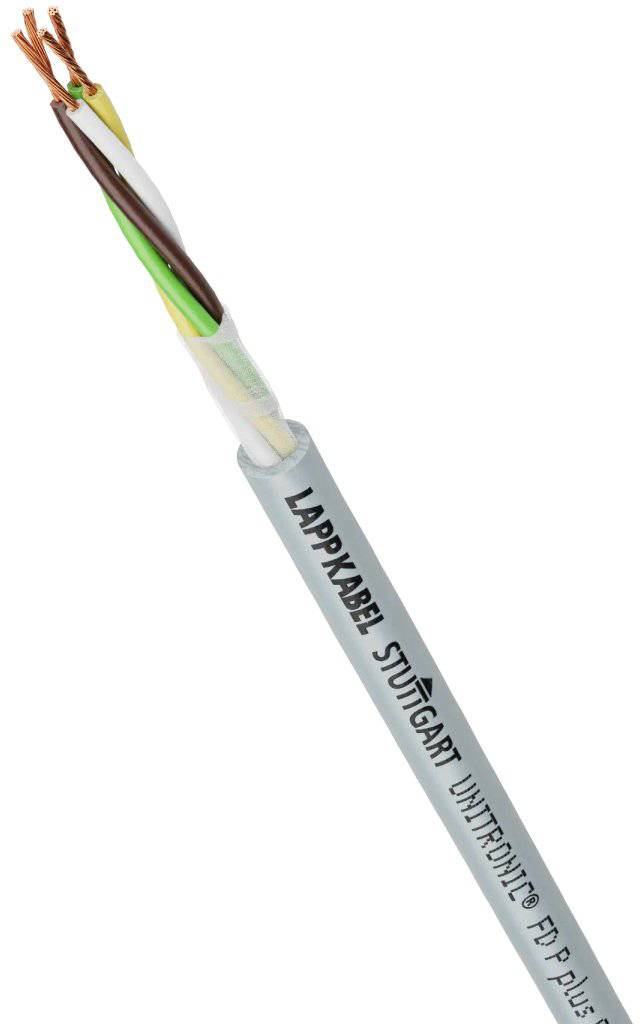

UNITRONIC® FD P plus A 6x0,25 podatkovni kabel niske frekvencije; 6X0,25; Oznaka boje jezgre: DIN 47100; ČISTA; UL priznat; vučni lanac
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 0028679/500
EAN koda: 4044777514861
Registrirana blagovna znamka: LAPP
Ime proizvajalca: Lapp U.I. GmbH
Naslov proizvajalca: Schulze-Delitzsch-Str. 25
Poštna številka proizvajalca: 70565
Kraj proizvajalca: Stuttgart
Država proizvajalca: Germany
Telefon proizvajalca: +49711783801
Elektronski kontakt proizvajalca: http://www.lappkabel.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Vrsta proizvoda |
vod za prijenos podataka |
|---|---|
| Tip kabela |
UNITRONIC® FD P plus A |
| Broj žica |
6 x |
| Vanjski Ø |
5 mm |
| Boja |
siva |
| Sadržaj |
500 m |
| Bez halogena |
ne |
| Proizvođač-br. dijela |
0028679/500 |
| Izolacijski material |
poliuretan |
| Raspon temperature, fiksna instalacija (min.) |
-40 °C |
| Raspon temperature, fiksna instalacija (maks.) |
80 °C |
| Tip |
UNITRONIC® FD P plus A 6x0,25 |
| UV resistant |
TRUE |
| Nominal cross section conductor |
0.25 mm² |
| Material core insulation |
Polyolefin |
| Core identification |
Colour |
| Colour outer sheath |
Grey |
| Conductor material |
Copper |
| Material outer sheath |
Polyurethane (PUR) |
| Permitted cable outer temperature after assembling without vibration |
-40-80 °C |
| Number of cores |
6 |
| Halogen free according to EN IEC 60754-2 |
FALSE |
| Low smoke according to EN IEC 61034-2 |
FALSE |
| Outer diameter approximate |
5.4 mm |
| Low smoke (according to EN 61034-2) |
FALSE |
| Halogen free according to EN 60754-1/2 |
FALSE |
| Oil resistant according to EN IEC 60811-404 |
FALSE |
| Conductor surface |
Bare |
| AWG size |
Other |
| Min. permitted bending radius, moving application with forced guidance |
27.0 mm |
| Min. permitted bending radius, moving application/free movement |
27.0 mm |
| Min. permitted bending radius, stationary application/permanent installation |
16.2 mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
FALSE |
