Opis

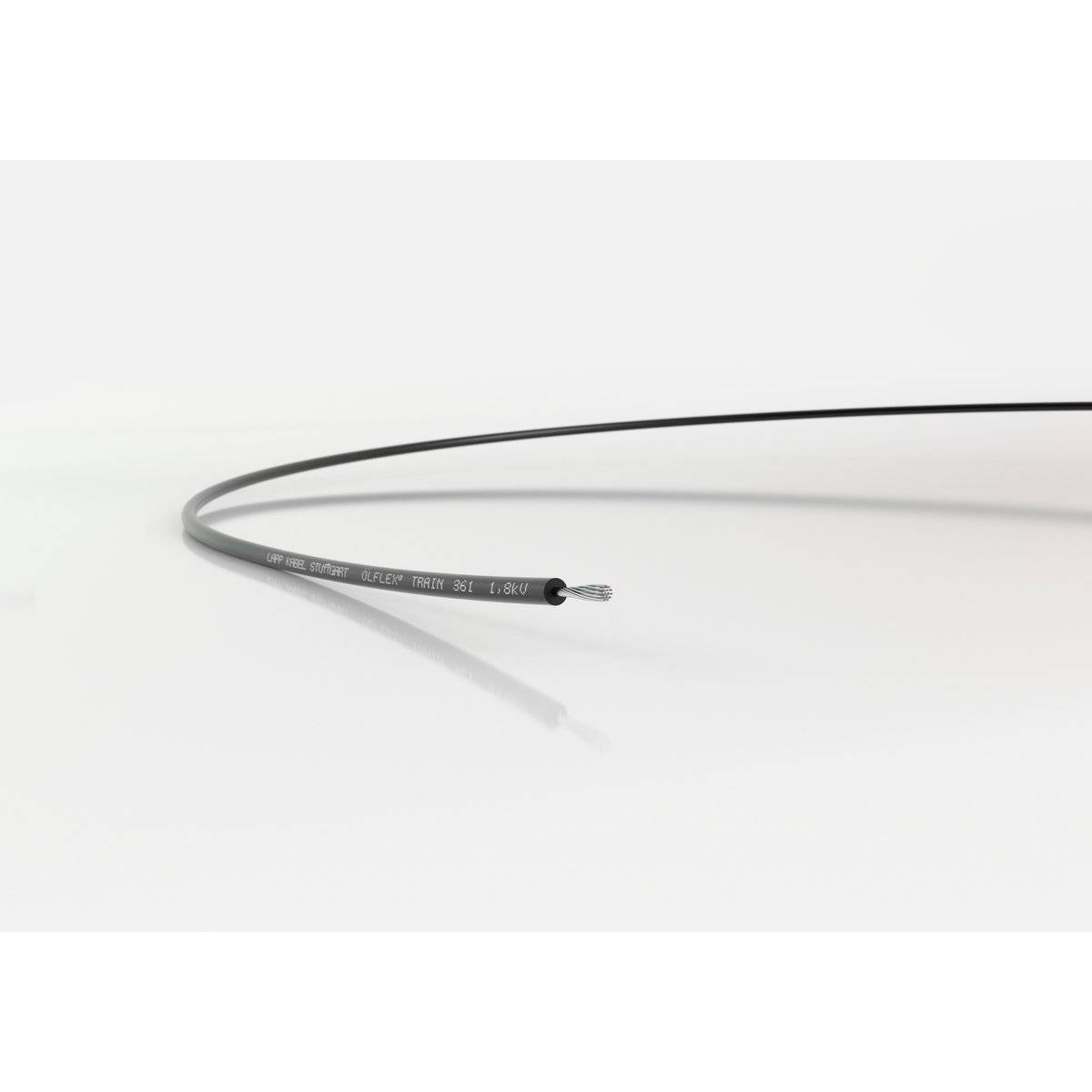

ÖLFLEX® TRAIN 361 1,8kV 1X185 BK željeznički kabel; 1X185; EN 50264-3-1; Vrsta M; U 0 /U: 1,8/3 kV; -45 - 120°C; umreženi polimerni spoj elektronskom zrakom; ; crna
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 15361013/500
EAN koda: 4044777261048
Registrirana blagovna znamka: LAPP
Ime proizvajalca: Lapp U.I. GmbH
Naslov proizvajalca: Schulze-Delitzsch-Str. 25
Poštna številka proizvajalca: 70565
Kraj proizvajalca: Stuttgart
Država proizvajalca: Germany
Telefon proizvajalca: +49711783801
Elektronski kontakt proizvajalca: http://www.lappkabel.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Podatkovna tablica 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Upute za rad i sigurnost 3349149 LAPP 15361013/500 željeznički vod M 1 x 185 mm² 500 m
Tehnički podaci
| Vrsta proizvoda |
željeznički vod |
|---|---|
| Tip kabela |
M |
| Broj žica |
1 x |
| Poprečni presjek (po žili) |
185 mm² |
| Presjek |
1 x 185 mm² |
| Određene značajke kabela |
plosnata izvedba |
| Sadržaj |
500 m |
| Nazivni napon |
3000 V |
| Nazivni napon U0 |
1800 V |
| Proizvođač-br. dijela |
15361013/500 |
| Tip |
ÖLFLEX® TRAIN 361 1,8kV 1X185 BK |
| Nominal cross section conductor |
185 mm² |
| Material core insulation |
Other |
| Nominal voltage U |
3 kV |
| Conductor material |
Copper |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature after assembling without vibration |
-45-120 °C |
| Nominal voltage U0 |
1.8 kV |
| Screen |
FALSE |
| Number of cores |
1 |
| Halogen free according to EN IEC 60754-2 |
FALSE |
| Low smoke according to EN IEC 61034-2 |
TRUE |
| With protective conductor |
FALSE |
| Low smoke (according to EN 61034-2) |
TRUE |
| Conductor surface |
Tinned |
| Specification core insulation |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
FALSE |
| Circuit integrity according to BS 6387 CWZ |
FALSE |
| Circuit integrity according to EN 50200 annex E |
FALSE |
| Circuit integrity according to BS 8434-2 |
FALSE |
| Circuit integrity according to BS 8491 |
No |
| Circuit integrity according to IEC 60331-21 |
FALSE |
| Flame retardant according to EN 60332-1-2 |
TRUE |
| Flame retardant according to EN 60332-3-21 (Cat A F/R) |
FALSE |
| Flame retardant according to EN 60332-3-22 (Cat A) |
FALSE |
| Flame retardant according to EN 60332-3-23 (Cat B) |
FALSE |
| Flame retardant according to EN 60332-3-24 (Cat C) |
TRUE |
| Flame retardant according to EN 60332-3-25 (Cat D) |
FALSE |
| Halogen free according to EN 60754-1 |
TRUE |
| Halogen free according to EN 60754-2 |
FALSE |
| Halogen free according to EN 60754-3 |
FALSE |
