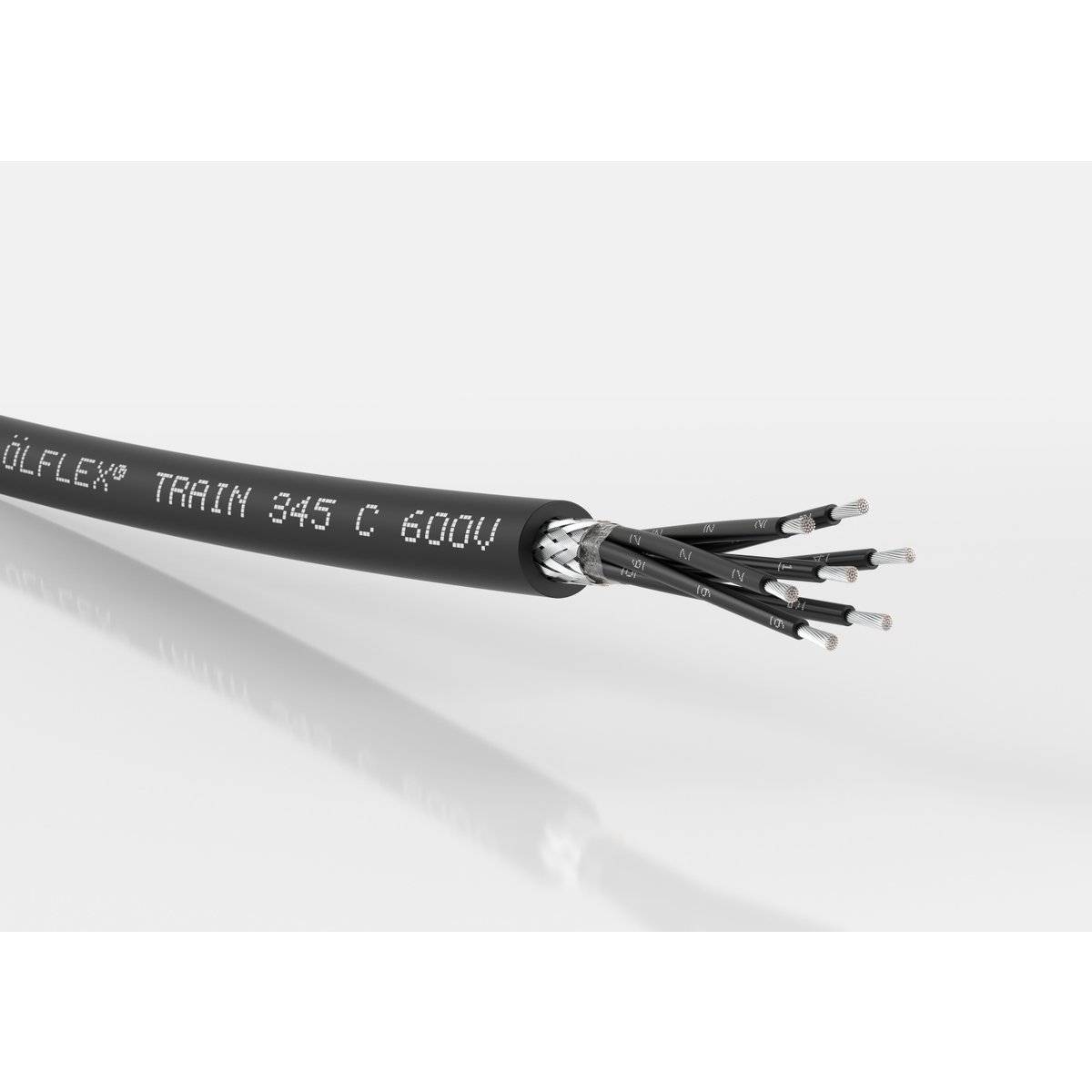

LAPP 15345010/500 željeznički vod MM S 3 x 6 mm² 500 m

Marka LAPP

(0 ocen)

7.575,00 EUR

(= 57.073,84 kn)

Kod proizvoda: 3349066
EAN: 4044777254927
Procijenjena isporuka:14.10.2026 - 16.10.2026

Opis

ÖLFLEX® TRAIN 345 C 600V 3X6 željeznički kabel; 3X6; EN 50264-3-2; Tip MM S; U 0 /U: 0,6/1 kV; -45 - 120°C; umreženi polimerni spoj elektronskom zrakom; Oklopljeno

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 15345010/500

EAN koda: 4044777254927

Registrirana blagovna znamka: LAPP

Ime proizvajalca: Lapp U.I. GmbH

Naslov proizvajalca: Schulze-Delitzsch-Str. 25

Poštna številka proizvajalca: 70565

Kraj proizvajalca: Stuttgart

Država proizvajalca: Germany

Telefon proizvajalca: +49711783801

Elektronski kontakt proizvajalca: http://www.lappkabel.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 3349066 LAPP 15345010/500 željeznički vod MM S 3 x 6 mm² 500 m

Upute za rad i sigurnost 3349066 LAPP 15345010/500 željeznički vod MM S 3 x 6 mm² 500 m

Tehnički podaci

Vrsta proizvoda	željeznički vod
Tip kabela	MM S
Broj žica	3 x
Poprečni presjek (po žili)	6 mm²
Presjek	3 x 6 mm²
Određene značajke kabela	plosnata izvedba fleksibilan
Vanjski Ø	12.5 mm
Sadržaj	500 m
Nazivni napon	1000 V
Nazivni napon U0	600 V
Proizvođač-br. dijela	15345010/500
Tip	ÖLFLEX® TRAIN 345 C 600V 3X6
Nominal cross section conductor	6 mm²
Material core insulation	Other
Core identification	Numbers
Nominal voltage U	1 kV
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-45-120 °C
Nominal voltage U0	0.6 kV
Screen	TRUE
Number of cores	3
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	TRUE
Outer diameter approximate	12.5 mm
With protective conductor	FALSE
Low smoke (according to EN 61034-2)	TRUE
Conductor surface	Tinned
Min. permitted bending radius, stationary application/permanent installation	75.0 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Circuit integrity according to BS 6387 CWZ	FALSE
Circuit integrity according to EN 50200 annex E	FALSE
Circuit integrity according to BS 8434-2	FALSE
Circuit integrity according to BS 8491	No
Circuit integrity according to IEC 60331-21	FALSE
Flame retardant according to EN 60332-1-2	TRUE
Flame retardant according to EN 60332-3-21 (Cat A F/R)	FALSE
Flame retardant according to EN 60332-3-22 (Cat A)	FALSE
Flame retardant according to EN 60332-3-23 (Cat B)	FALSE
Flame retardant according to EN 60332-3-24 (Cat C)	TRUE
Flame retardant according to EN 60332-3-25 (Cat D)	FALSE
Halogen free according to EN 60754-1	TRUE
Halogen free according to EN 60754-2	FALSE
Halogen free according to EN 60754-3	FALSE
