Opis

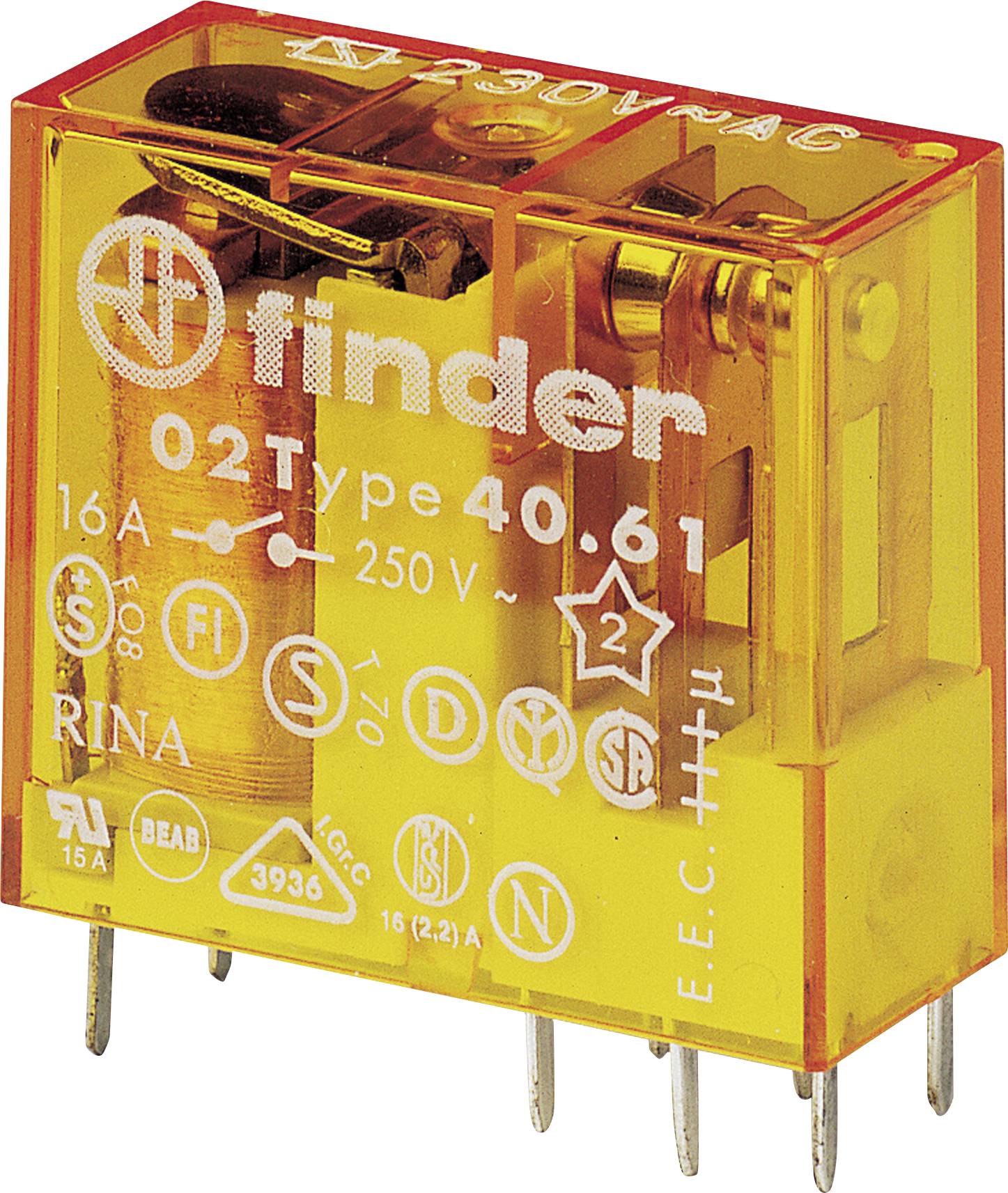

Utični/ispisani relej 1 sklopni kontakt (AgSnO2) za 16 A / 250 V AC, razmak kontaktne igle: 5,0 mm, podaci zavojnice 110 V AC, 1,2 VA, 6900 Ohm, vrsta zaštite releja: RT II
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 40.61.8.110.4300
EAN koda: 8012823115061
Registrirana blagovna znamka: Finder
Ime proizvajalca: FINDER GmbH
Naslov proizvajalca: Hans-Böckler-Str. 44
Poštna številka proizvajalca: 65468
Kraj proizvajalca: Trebur
Država proizvajalca: Germany
Telefon proizvajalca: +490614720330
Elektronski kontakt proizvajalca: https://www.findernet.com/de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Vrsta proizvoda |
relej za tiskane pločice |
|---|---|
| Tip |
40.61.8.110.4300 |
| Nazivni napon svitka |
110 V/AC |
| Vrsta kontakta |
1 zatvarač |
| Prebacivanje struje (maks.) |
16 A |
| Vrsta zaštite |
IP20 |
| Širina |
12.4 mm |
| Visina |
25 mm |
| Dubina |
29 mm |
| dim. |
(Š x V x D) 12.4 x 25 x 29 mm |
| Sadržaj |
1 St. |
| RoHS-konforno |
Da |
| Nominal current |
16 A |
| Width |
12.4 |
| Height |
25 mm |
| Depth |
29 mm |
| Max. starting current |
30 A |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
FALSE |
| Type of electric connection |
PCB connection |
| Rated control supply voltage AC 50 Hz |
110-110 V |
| Rated control supply voltage AC 60 Hz |
110-110 V |
| Voltage type (operating voltage) |
AC |
| With LED indication |
FALSE |
| Operating voltage AC 50 Hz |
88-121 V |
| Operating voltage AC 60 Hz |
88-121 V |
| Voltage type for actuating |
AC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
