Opis

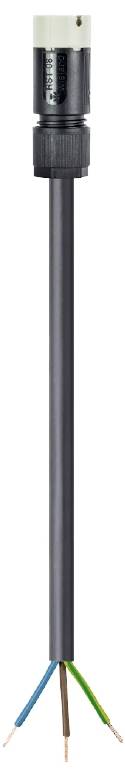

RST® MICRO priključni kabel
slobodni kraj kabela - utikač
Broj polova: 3
Nazivni napon 250 V / 400 V
Nazivna struja: 6 A
Tip kabela H05RN-F
Ukupna dužina 4 m
Nazivni presjek vodiča 0,75 mm²
Brtvljenje kontakata da
Boja kodiranja / kontaktni umetak šljunčano siva
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 4L.437.4038.8
EAN koda: 4049088574023
Registrirana blagovna znamka: Wieland Electric
Ime proizvajalca: Wieland Electric GmbH
Naslov proizvajalca: Brennerstr. 10-14
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995193240
Elektronski kontakt proizvajalca: https://www.wieland-electric.com/en
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Priključak A |
slobodan kraj |
|---|---|
| Priključak B |
utikač |
| Boja |
crna |
| Područje kabelskog Ø |
6.2 - 7 mm |
| Vrsta zaštite |
IP66 |
| Broj polova |
3 |
| Nazivna struja |
6 A |
| Nazivni napon |
250 V |
| Kabel-Ø do |
7 mm |
| Promjer kabela od |
6.2 mm |
| Halogen free |
FALSE |
| Nominal cross section conductor |
0.75 mm² |
| Cable type |
Other |
| Housing colour |
Black |
| Type of locking |
Integrated in plug-in connector |
| Rated current |
6 A |
| Rated voltage |
250 V |
| Total length |
4000 mm |
| Number of poles |
3 |
| Colour outer sheath |
Black |
| Cable diameter |
6.2-7 mm |
| Surface treatment contacts |
Silver-plated |
| Pollution degree |
3 |
| Mechanical coding |
TRUE |
| Rated surge voltage |
2.5 kV |
| Continuity resistance |
92.3 mOhm |
| Degree of protection (IP) |
IP66 |
| Pole codification |
1, 2, PE |
| Colour coding/contact insert |
Grey |
| Strip length |
9 mm |
| Dismantle length |
35 mm |
| Type of finished cable |
Device connection cable |
| Type side 1 |
Free conductor end |
| Type side 2 |
Plug |
| Insulating piece permanent temperature-resistant |
100 °C |
| Conductor end treatment |
Ultrasonic compressed wire ends |
| Cable permanent temperature-resistant to |
60 °C |
| Reaction-to-fire according to EN 13501-6: Class |
None |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| RAL-number coding/contact insert |
7032 |
| Vrsta proizvoda |
priključni kabel |
