Opis

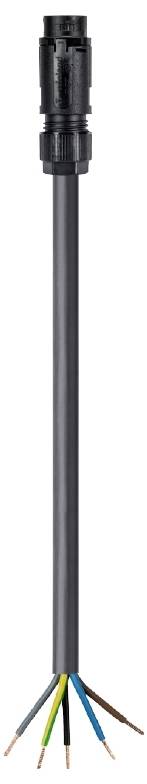

RST® MINI priključni kabel
slobodni kraj kabela - utikač
Broj polova 5
Nazivni napon 250 V / 400 V
Nazivna struja: 16 A
Tip kabela H05Z1Z1-F
Razred požara Cca s1 d1 a1
Ukupna dužina 2 m
Nazivni presjek vodiča 1,5 mm²
Boja kodiranja / kontaktni umetak crni
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 46.452.20C4.1
EAN koda: 4049088533013
Registrirana blagovna znamka: Wieland Electric
Ime proizvajalca: Wieland Electric GmbH
Naslov proizvajalca: Brennerstr. 10-14
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995193240
Elektronski kontakt proizvajalca: https://www.wieland-electric.com/en
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Priključak A |
slobodan kraj |
|---|---|
| Priključak B |
utikač |
| Boja |
crna |
| Područje kabelskog Ø |
9.8 - 10.4 mm |
| Vrsta zaštite |
IP66 |
| Broj polova |
5 |
| Nazivna struja |
16 A |
| Nazivni napon |
250 V |
| Kabel-Ø do |
10.4 mm |
| Promjer kabela od |
9.8 mm |
| Halogen free |
TRUE |
| Nominal cross section conductor |
1.5 mm² |
| Cable type |
H05Z1Z1-F |
| Housing colour |
Black |
| Type of locking |
Integrated in plug-in connector |
| Rated current |
16 A |
| Rated voltage |
250 V |
| Total length |
2000 mm |
| Number of poles |
5 |
| Colour outer sheath |
Black |
| Cable diameter |
9.8-10.4 mm |
| Surface treatment contacts |
Silver-plated |
| Pollution degree |
3 |
| Rated surge voltage |
4 kV |
| Continuity resistance |
23.55 mOhm |
| Degree of protection (IP) |
IP66 |
| Pole codification |
3, N, PE, 2, 1 |
| Colour coding/contact insert |
Black |
| Fire load |
1.133 kWh |
| Strip length |
9 mm |
| Dismantle length |
35 mm |
| Type of finished cable |
Device connection cable |
| Type side 1 |
Free conductor end |
| Type side 2 |
Plug |
| Insulating piece permanent temperature-resistant |
100 °C |
| Conductor end treatment |
Ultrasonic compressed wire ends |
| Cable permanent temperature-resistant to |
70 °C |
| Reaction-to-fire according to EN 13501-6: Class |
Cca |
| Reaction-to-fire according to EN 13501-6: Smoke production |
s1 |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
d1 |
| Reaction-to-fire according to EN 13501-6: Acidity |
a1 |
| RAL-number coding/contact insert |
9005 |
| Vrsta proizvoda |
priključni kabel |
