Opis

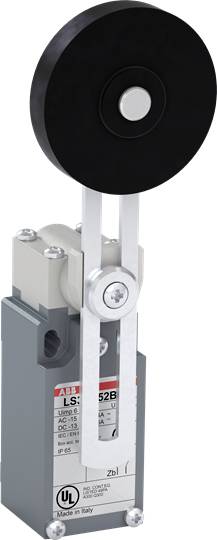

LS32M52B11 je pozicioni prekidač širine 30 mm izrađen od legure cinka (Zamak), s 2 montažne rupe na vrhu, 1 kabelskim uvodom prema ISO M16x1.5 na dnu, spljoštenom gumenom valjkastom polugom (podesivom) i 1 kontaktom + 1 prekidni kontakt kao uskočni kontakt
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1SBV011952R1211
EAN koda: 3471522621801
Registrirana blagovna znamka: ABB
Ime proizvajalca: ABB Asea Brown Boveri Ltd
Naslov proizvajalca: Affolternstrasse 44
Poštna številka proizvajalca: 8050
Kraj proizvajalca: Zurich
Država proizvajalca: Switzerland
Telefon proizvajalca: +41433177111
Elektronski kontakt proizvajalca: https://global.abb/group/en
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Vrsta proizvoda |
pozicijski prekidač |
|---|---|
| Priključak |
kabelski spoj osnovnog prekidača |
| Vrsta aktiviranja |
podizač |
| Prebacivanje struje (maks.) |
10 A |
| Vrsta kontakta |
1 zatvarač |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
70 °C |
| Vrsta zaštite |
IP66 |
| Materijal |
metal |
| Tip |
LS32M52B11 |
| Sadržaj |
1 St. |
| Visina |
130 mm |
| Dužina |
52 mm |
| Dubina |
50 mm |
| Switching function |
Quick-break switch |
| Rated operation current Ie at AC-15, 230 V |
3.1 A |
| Rated operation current Ie at DC-13, 230 V |
0.4 A |
| Housing material |
Metal |
| Suitable for safety functions |
FALSE |
| Coating housing |
Powder coating |
| With status indication |
FALSE |
| Type of interface for safety communication |
None |
| Type of electric connection |
Cable entry metrical |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Construction type housing |
Cuboid |
| Degree of protection (IP) |
IP66 |
| Forced opening |
FALSE |
| Number of safety auxiliary contacts |
0 |
| Type of control element |
Plunger |
| Type of interface |
None |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
5.5 A |
| Rated operation current Ie at AC-15, 24 V |
10 A |
| Rated operation current Ie at DC-13, 125 V |
0.6 A |
| Rated operation current Ie at DC-13, 24 V |
6 A |
| Width sensor |
50 mm |
| Diameter sensor |
0 mm |
| Height of sensor |
130 mm |
| Length of sensor |
52 mm |
| Switching function latching |
FALSE |
| Ambient temperature during operating |
-25-70 °C |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Alignment of the control element |
Other |
| Degree of protection (NEMA) |
4X |
