Opis
COLORselect: 3 svijetle boje u jednom svjetlu. Prava boja svjetla može se prilagoditi za svako okruženje primjene. Topla bijela 3.000 K: hotel, trgovina, wellness/spa područja, dom i život Neutralna bijela 4.000 K: ured, ugostiteljstvo, industrija, sanitarni čvorovi, domovi za umirovljenike i bolnice Dnevna bijela 5.700 K: industrija, sobe za sastanke, obrazovne ustanove, ured Odsjaj- slobodan dizajn svjetiljke (UGR Faceted Mulit -Reflektor osigurava ravnomjerno osvjetljenje Spajanje terminala bez alata (kroz ožičenje s integriranim rasterećenjem naprezanja) Dizajn kućišta otporan na prskanje (IP 54 na prednjoj strani) SmartCooling: disipacija topline sa strane prostorije kroz aluminijski reflektor Razmak- moguća besplatna ugradnja Pogodno za centralnu bateriju
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3841-040090
EAN koda: 4260523592420
Registrirana blagovna znamka: DOTLUX
Ime proizvajalca: DOTLUX GmbH
Naslov proizvajalca: Richard-Stücklen-Str. 7
Poštna številka proizvajalca: 91781
Kraj proizvajalca: Weißenburg in Bayern
Država proizvajalca: Germany
Telefon proizvajalca: +49914140510
Elektronski kontakt proizvajalca: https://dotlux.de/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Vrsta proizvoda |

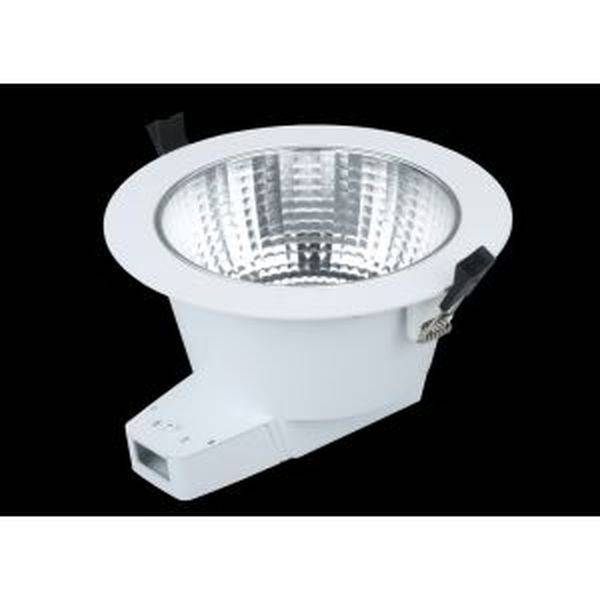

LED stropni reflektor |
|---|---|
| Klasa energetske učinkovitosti |
n.rel. (EENRPS00) |
| Protection class according to IEC 61140 |
II |
| Width |
0 mm |
| Outer diameter |
172 mm |
| Reflector |
White |
| Housing colour |
White |
| Voltage type |
AC |
| With movement sensor |
FALSE |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
FALSE |
| Length |
0 mm |
| Height/depth |
95 mm |
| Lamp type |
LED not exchangeable |
| Impact strength |
IK06 |
| Nominal voltage |
110-276 V |
| Degree of protection (IP) |
IP54 |
| With light source |
FALSE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Covering of the luminaire with thermally insulating material possible |
FALSE |
| Suitable for built-in mounting |
TRUE |
| With control gear |
TRUE |
| Suitable for workplace according to EN 12464-1 |
TRUE |
| Suitable for surface mounting |
FALSE |
| Beam angle |
> 80° - Extreme wide beam |
| Surface brushed |
FALSE |
| Colour temperature |
4000-4000 K |
| Max. system power |
18 W |
| Rated luminous flux according to IEC 62722-2-1 |
1980 lm |
| Colour of light |
White |
| Suitable for traverse mounting |
FALSE |
| Suitable for pedestal/floor mounting |
FALSE |
| Suitable for light-track mounting |
FALSE |
| Suitable for clamp-mounting |
FALSE |
| Luminous flux |
1980-1980 lm |
| Rated life time L80/B10 at 25 °C |
50000 h |
| Rated ambient temperature according to IEC 62722-2-1 |
-20-45 °C |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
FALSE |
| Dimming phase cut-on (leading edge) |
FALSE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
TRUE |
| Dimming depending on control gear |
FALSE |
| Suitable for low voltage cable system |
FALSE |
| Dimming DSI |
FALSE |
| Suitable for ceiling mounting |
FALSE |
| Power factor |
0.9 |
