Opis

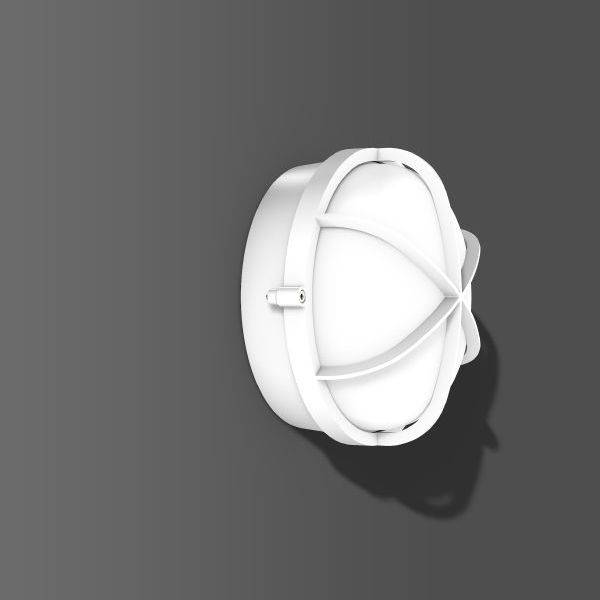

Robusno stropno i zidno svjetlo za vanjsku upotrebu. Okov i zaštitna košara od tlačno lijevanog aluminija, plastificirana. S membranskim ventilom za sprječavanje kondenzacije. Difuzor plastični (polikarbonat) opal. Montažni nosač od nehrđajućeg čelika s kompenzacijom tolerancije probušene rupe. Mrežni priključak 2 x 3 x 1,5 mm². Zamjenjivi LED modul.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 51052.002
EAN koda: 4010319016704
Registrirana blagovna znamka: RZB
Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH
Naslov proizvajalca: Rheinstrasse 16
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995179090
Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Vrsta proizvoda |
stropno svjetlo za kupaonicu |
|---|---|
| Klasa energetske učinkovitosti |
n.rel. (EENRPS00) |
| Protection class according to IEC 61140 |
I |
| Outer diameter |
245 mm |
| Lamp holder |
E27 |
| Conductor cross section |
2.50 mm² |
| Connection type |
Screwed terminal |
| Housing colour |
White |
| Voltage type |
AC |
| With movement sensor |
FALSE |
| Suitable for lamp power |
60-60 W |
| Type of grid |
None |
| Type of control gear |
Not required |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
FALSE |
| Number of poles |
2 |
| Height/depth |
125 mm |
| Housing material |
Aluminium |
| Lamp type |
HV halogen lamp |
| Suitable for light line configuration |
FALSE |
| Suitable for emergency lighting |
FALSE |
| Light distribution |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK08 |
| Nominal voltage |
230-230 V |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP65 |
| With light source |
FALSE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Suitable for number of light sources |
1 |
| Suitable for wall mounting |
TRUE |
| Suitable for built-in mounting |
FALSE |
| With control gear |
FALSE |
| Suitable for workplace according to EN 12464-1 |
TRUE |
| Suitable for surface mounting |
TRUE |
| Beam angle |
> 80° - Extreme wide beam |
| Nominal current |
261-261 mA |
| Max. system power |
60 W |
| With air slots |
FALSE |
| Constant light output (CLO) |
FALSE |
| IFTTT support available |
FALSE |
| Type of wiring |
Suitable for loop-through wiring |
| Degree of protection (NEMA) |
Other |
| Rated ambient temperature according to IEC 62722-2-1 |
-20-25 °C |
| Filament test according to IEC 60695-2-11 |
850 °C - 30 s |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
FALSE |
| Dimming phase cut-on (leading edge) |
FALSE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
TRUE |
| Light distributor |
None |
| Dimming depending on control gear |
FALSE |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
18.70 |
| Operation by Bluetooth |
FALSE |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Dimming DALI-2 |
FALSE |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
No |
| Beam angle adjustable |
No |
| Exchangeable control gear |
FALSE |
| Suitable for ceiling mounting |
TRUE |
| Surface protection housing |
Powder coating |
| Power factor |
1 |
