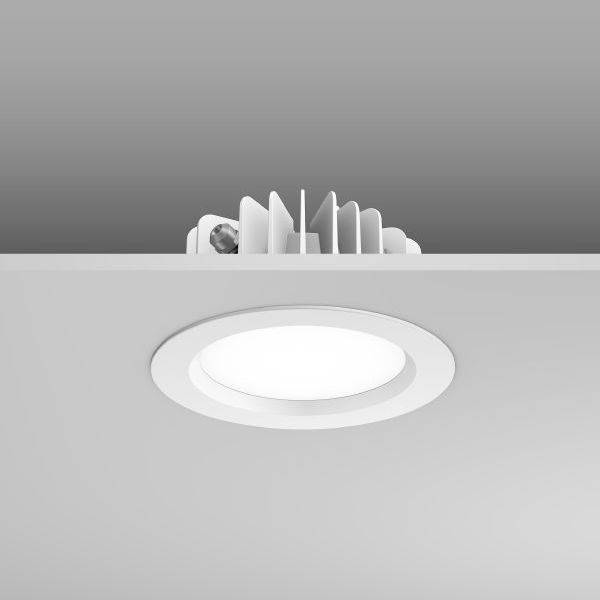

RZB 901434.002 901434.002 LED stropni reflektor

Marka RZB

(0 ocen)

184,99 EUR

(= 1.393,81 kn)

Kod proizvoda: 2975231
EAN: 4051859028857
Procijenjena isporuka:05.11.2026 - 09.11.2026

Opis

LED ugradna svjetiljka za visoke zahtjeve. Kućište od tlačno lijevanog aluminija dizajnirano kao hladnjak. Poklopni prsten od tlačno lijevanog aluminija, plastificiran. Plastični disk otporan na udarce, opal. Standardno s membranskim ventilom GoreT Protective Vents za sprječavanje kondenzacije. Svjetiljka također održava visoku klasu zaštite kada je ugrađena u spušteni strop. Ugradnja bez alata pomoću opružnog pričvršćivanja. Izravan priključak na 220-240 V AC, tj. nije potreban upravljački uređaj. Priključni kabel 2 m sa slobodnim krajevima žica. Kutija za prolazno ožičenje (5-polna) dostupna kao dodatna oprema. Otporan na kuglice prema DIN 18032-03. Odobreno za upotrebu u industriji hrane i pića.

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 901434.002

EAN koda: 4051859028857

Registrirana blagovna znamka: RZB

Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH

Naslov proizvajalca: Rheinstrasse 16

Poštna številka proizvajalca: 96052

Kraj proizvajalca: Bamberg

Država proizvajalca: Germany

Telefon proizvajalca: +4995179090

Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Upute za rad i sigurnost 2975231 RZB 901434.002 901434.002 LED stropni reflektor

Tehnički podaci

Vrsta proizvoda	LED stropni reflektor
Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	I
Outer diameter	180 mm
Reflector	None
Lamp holder	None
Connection type	Other
Housing colour	White
Surface protection	Powder coating
Voltage type	AC
With movement sensor	FALSE
Suitable for lamp power	20-20 W
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
Suitable for wall mounting	FALSE
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Number of poles	3
Height/depth	3 mm
Housing material	Aluminium
Lamp type	LED not exchangeable
Light outlet	Direct
Light distribution	Symmetric
Material cover	Plastic, opal
Impact strength	IK07
Nominal voltage	220-240 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP65
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	FALSE
Covering of the luminaire with thermally insulating material possible	FALSE
Suitable for number of light sources	1
Suitable for built-in mounting	TRUE
With control gear	TRUE
Suitable for workplace according to EN 12464-1	FALSE
Suitable for surface mounting	FALSE
Beam angle	> 80° - Extreme wide beam
Surface brushed	FALSE
Colour temperature	3000-3000 K
Max. system power	20 W
Rated luminous flux according to IEC 62722-2-1	1500 lm
Colour of light	White
Adjustability	Not adjustable
Suitable for traverse mounting	FALSE
Suitable for pedestal/floor mounting	FALSE
Suitable for light-track mounting	FALSE
Suitable for clamp-mounting	FALSE
Constant light output (CLO)	FALSE
IFTTT support available	FALSE
Luminous flux	1500-1500 lm
Type of wiring	Ending
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	-40-35 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
LED nominal current at constant current	83-91 mA
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	TRUE
Dimming phase cut-on (leading edge)	TRUE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	FALSE
Light distributor	None
Dimming depending on control gear	TRUE
Luminaire efficacy	75 lm/W
Suitable for low voltage cable system	FALSE
Dimming DSI	FALSE
Unified Glare Ratio (UGR)	28
Compatible with Apple HomeKit	FALSE
Compatible with Google Assistant	FALSE
Compatible with Amazon Alexa	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	80
Max. number of luminaires per miniature circuit breaker B16 (MCB)	80
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	70 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	30 %
Dimming DALI-2	FALSE
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	FALSE
Built-in diameter	160-160 mm
Suitable for ceiling mounting	TRUE
Built-in height/depth	92 mm
Power factor	0.99
