Opis

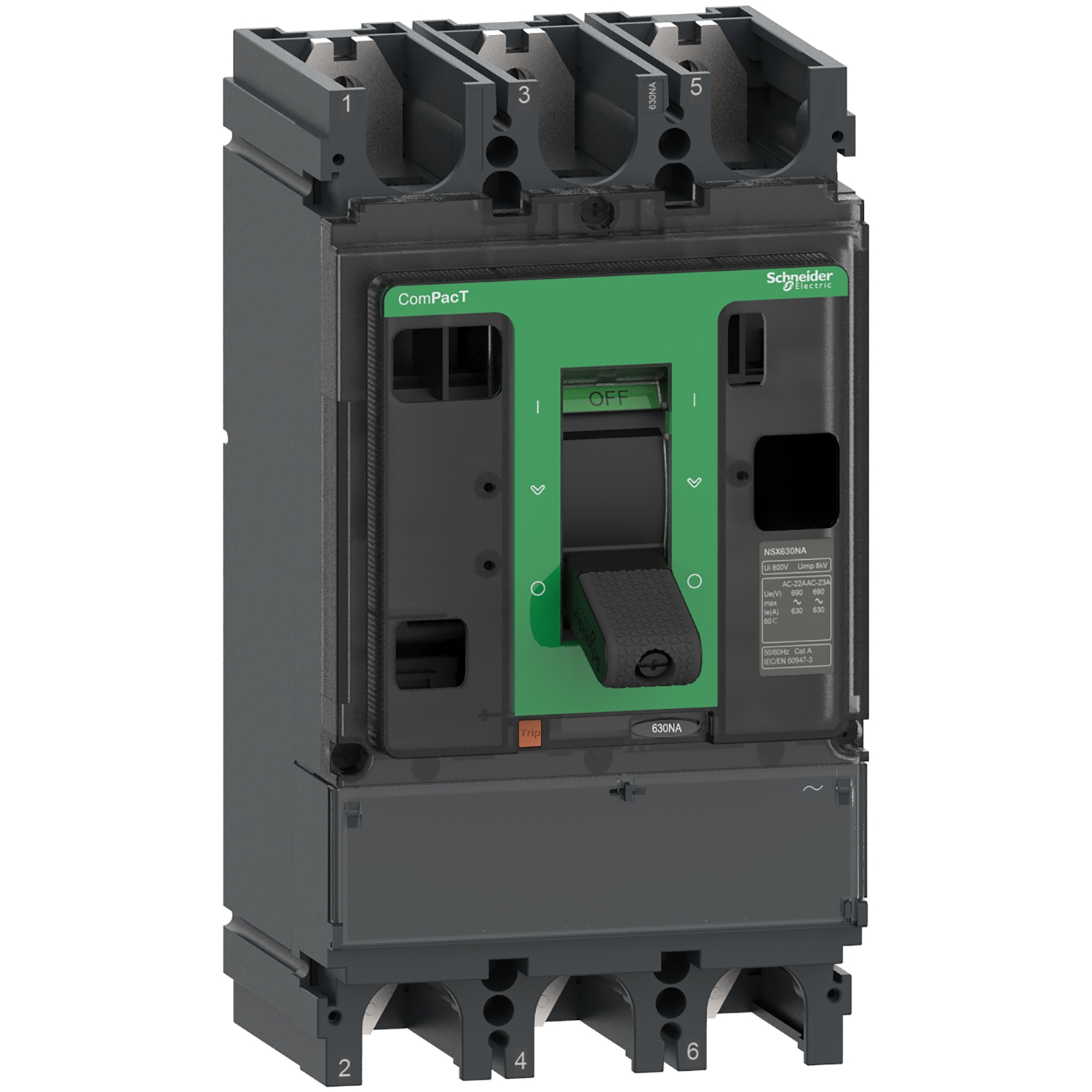

Ovaj ComPacT NSX630NA je potpuni 3-polni rastavljač. Koristi se za kontrolu i izolaciju krugova distribucije električne energije. Ovo zahtijeva uzvodnu zaštitu. Radna struja je 630 A pri 415 VAC 50/60 Hz za kategorije uporabe AC22A i AC23A. Radni napon je 690 VAC 50/60 Hz. Opremljen je nizom dodatnih značajki i dodataka koji se dijele s prekidačima ComPacT NSX. Dimenzije za ovu 3-polnu verziju su 140 mm x 255 mm x 110 mm. Sukladan je s međunarodnim standardima (IEC 60947), CCC, EAC i pomorskim specifikacijama.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: C633630S
EAN koda: 3606482002883
Registrirana blagovna znamka: Schneider Electric
Ime proizvajalca: Schneider Electric GmbH
Naslov proizvajalca: Gothaer Str. 29
Poštna številka proizvajalca: 40880
Kraj proizvajalca: Ratingen
Država proizvajalca: Germany
Telefon proizvajalca: +4921173743000
Elektronski kontakt proizvajalca: https://www.se.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 2918166 Schneider Electric C633630S teretna rastavna sklopka 1 St.
Podatkovna tablica 2918166 Schneider Electric C633630S teretna rastavna sklopka 1 St.
Informacije 2918166 Schneider Electric C633630S teretna rastavna sklopka 1 St.
Upute za rad i sigurnost 2918166 Schneider Electric C633630S teretna rastavna sklopka 1 St.
Upute za rad i sigurnost 2918166 Schneider Electric C633630S teretna rastavna sklopka 1 St.
Tehnički podaci
| Vrsta proizvoda |
teretna rastavna sklopka |
|---|---|
| Sadržaj |
1 St. |
| Tip |
C633630S |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Rated permanent current Iu |
630 A |
| Number of poles |
3 |
| Degree of protection (IP), front side |
IP30 |
| Number of auxiliary contacts as change-over contact |
5 |
| Number of switches |
1 |
| Interlockable |
TRUE |
| Motor drive integrated |
FALSE |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
FALSE |
| Type of control element |
Wing knob |
| Version as main switch |
TRUE |
| Version as safety switch |
FALSE |
| Version as maintenance-/service switch |
TRUE |
| Rated short-time withstand current lcw |
6 kA |
| Colour control element |
Black |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
TRUE |
| Suitable for front mounting centre |
FALSE |
| Suitable for distribution board installation |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Max. rated operation voltage Ue AC |
690 V |
| Motor drive optional |
TRUE |
| Voltage release optional |
TRUE |
| Device construction |
Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V |
630 A |
| Version as reversing switch |
FALSE |
| Rated permanent current at AC-23, 400 V |
630 |
