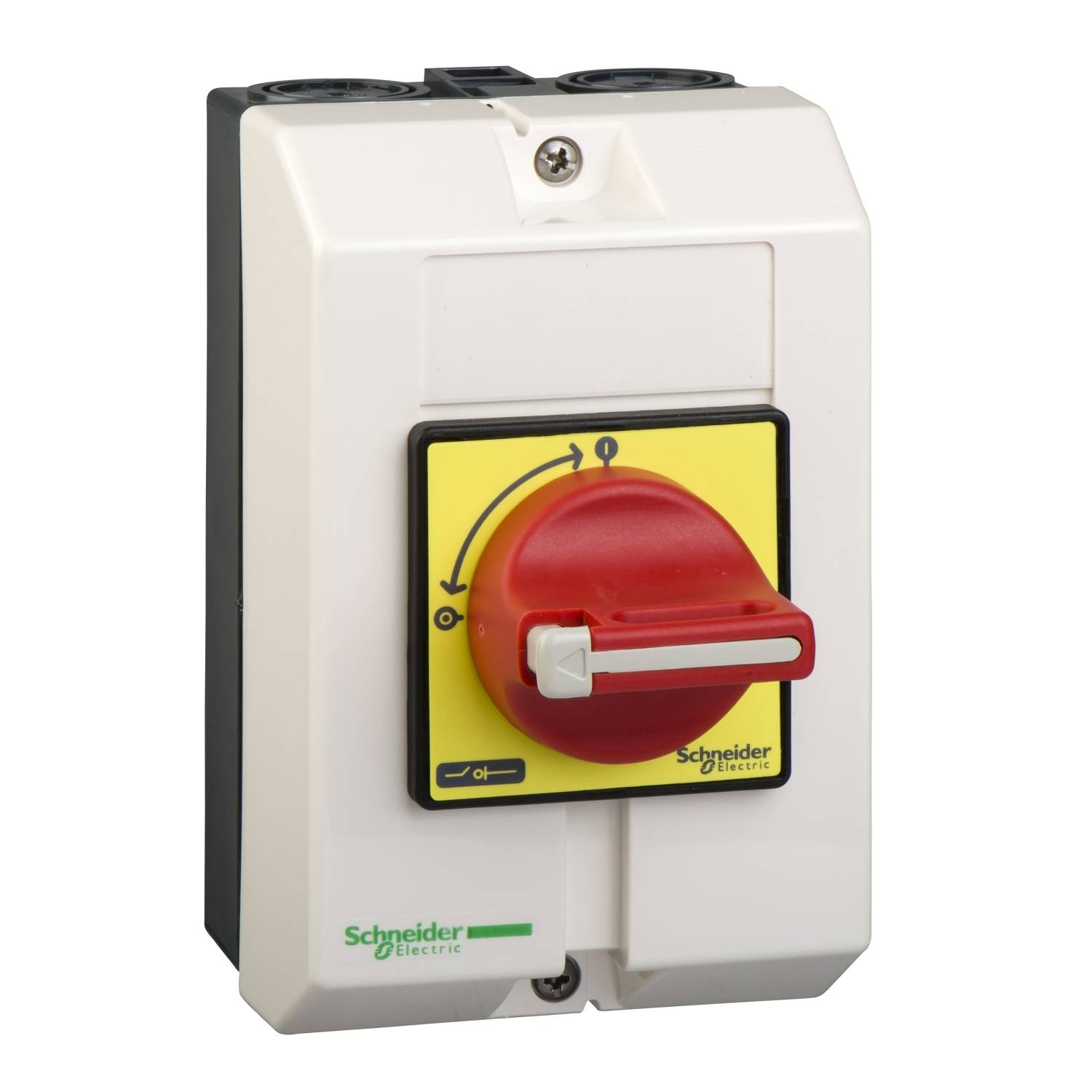

Schneider Electric V02 teretna rastavna sklopka 1 St.

Marka Schneider Electric

(0 ocen)

21,99 EUR

(= 165,68 kn)

Proizvajalčeva koda: V02

EAN koda: 3389110448849

Registrirana blagovna znamka: Schneider Electric

Ime proizvajalca: Schneider Electric GmbH

Naslov proizvajalca: Gothaer Str. 29

Poštna številka proizvajalca: 40880

Kraj proizvajalca: Ratingen

Država proizvajalca: Germany

Telefon proizvajalca: +4921173743000

Elektronski kontakt proizvajalca: https://www.se.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Vrsta proizvoda	teretna rastavna sklopka
Sadržaj	1 St.
Tip	V02
Rated operation power at AC-3, 400 V	3 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	12 A
Number of poles	3
Conditioned rated short-circuit current Iq	10 kA
Degree of protection (IP), front side	IP20
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	FALSE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	FALSE
Version as main switch	FALSE
Version as safety switch	FALSE
Version as maintenance-/service switch	FALSE
Rated operation power at AC-23, 400 V	4 kW
Rated short-time withstand current lcw	0.3 kA
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	TRUE
Suitable for front mounting centre	TRUE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	12 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	8.1
