Varnost izdelkov (GPSR)

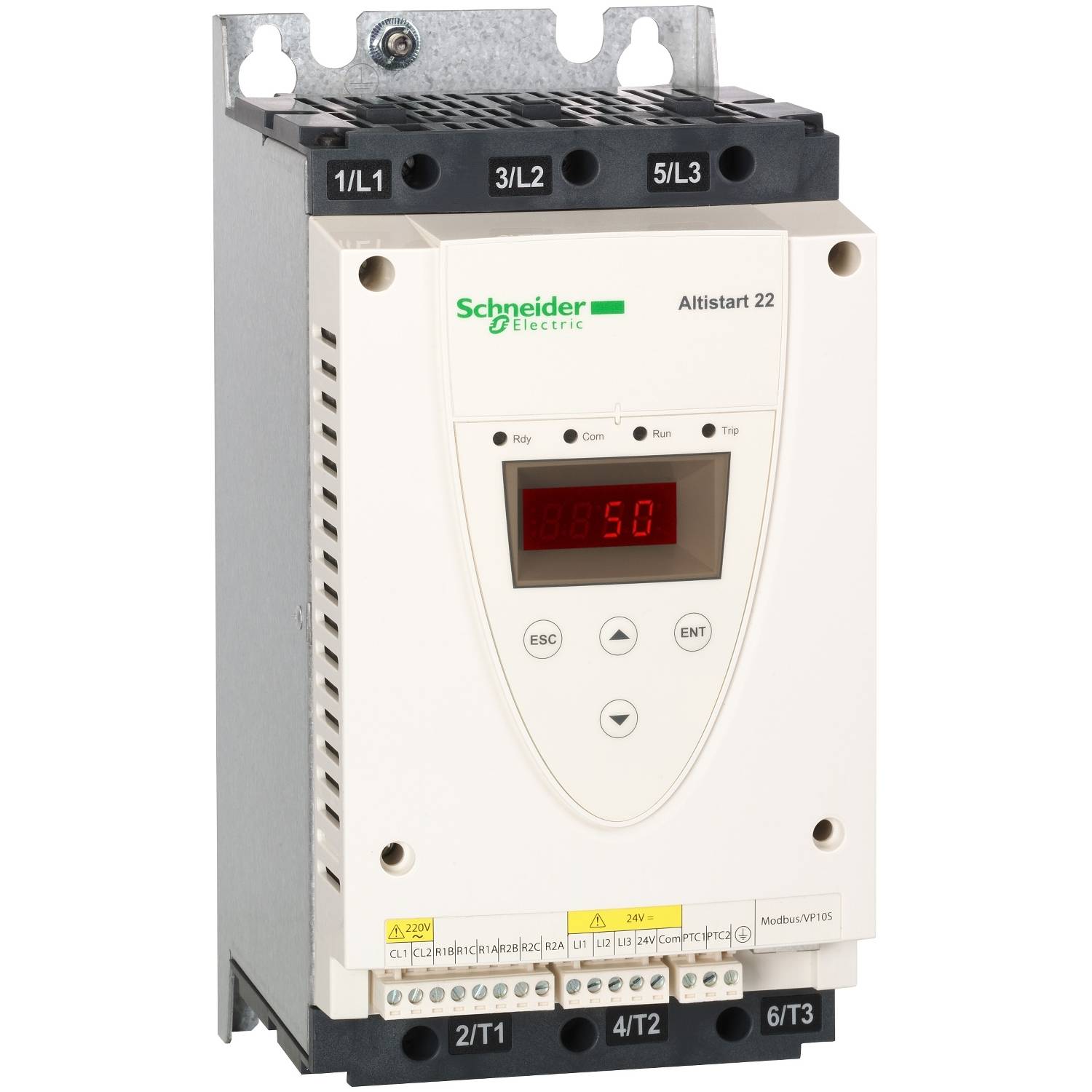

Proizvajalčeva koda: ATS22D32Q
EAN koda: 3606480167195
Registrirana blagovna znamka: Schneider Electric
Ime proizvajalca: Schneider Electric GmbH
Naslov proizvajalca: Gothaer Str. 29
Poštna številka proizvajalca: 40880
Kraj proizvajalca: Ratingen
Država proizvajalca: Germany
Telefon proizvajalca: +4921173743000
Elektronski kontakt proizvajalca: https://www.se.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Proizvođač-br. dijela |
ATS22D32Q |
|---|---|
| Tip |
ATS22D32Q |
| dim. |
(Š x V x D) 130 x 265 x 169 mm |
| Dubina |
169 mm |
| Visina |
265 mm |
| Širina |
130 mm |
| Snaga motora bei 400 V |
15 kW |
| Function |
Single direction |
| With display |
FALSE |
| Degree of protection (IP) |
IP20 |
| Release class |
Other |
| Rated operation current Ie at 40 °C Tu |
32 A |
| Rated power three-phase motor, inline, at 230 V |
7.5 kW |
| Rated power three-phase motor, inline, at 400 V |
15 kW |
| Rated power three-phase motor, inside delta, at 230 V |
11 kW |
| Rated power three-phase motor, inside delta, at 400 V |
22 kW |
| Rated surrounding temperature without derating |
40 °C |
| Integrated motor overload protection |
TRUE |
| Voltage type for actuating |
AC |
| Internal bypass |
TRUE |
| Torque control |
TRUE |
| Vrsta proizvoda |
mekani pokretač |
