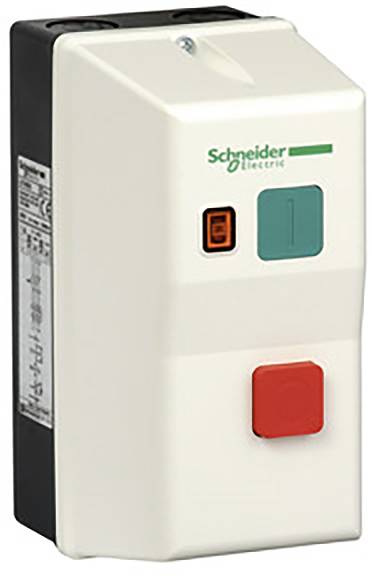

Schneider Electric LE1M35V706 izravni pokretač

Marka Schneider Electric

(0 ocen)

144,99 EUR

(= 1.092,43 kn)

159,99 EUR 9% popusta

Kod proizvoda: 2913778
EAN: 3389110963137
Procijenjena isporuka:07.10.2026 - 09.10.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: LE1M35V706

EAN koda: 3389110963137

Registrirana blagovna znamka: Schneider Electric

Ime proizvajalca: Schneider Electric GmbH

Naslov proizvajalca: Gothaer Str. 29

Poštna številka proizvajalca: 40880

Kraj proizvajalca: Ratingen

Država proizvajalca: Germany

Telefon proizvajalca: +4921173743000

Elektronski kontakt proizvajalca: https://www.se.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 2913778 Schneider Electric LE1M35V706 izravni pokretač

Informacije 2913778 Schneider Electric LE1M35V706 izravni pokretač

Upute za rad i sigurnost 2913778 Schneider Electric LE1M35V706 izravni pokretač

Tehnički podaci

Proizvođač-br. dijela	LE1M35V706
Tip	LE1M35V706
Width	78
Height	160 mm
Depth	108 mm
With transformer	FALSE
Rated operation power at AC-3, 400 V	0.37 kW
Number of command positions	2
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Suitable for emergency stop	FALSE
Rated operation current Ie	1.2 A
Number of indicator lights	1
Supporting protocol for LON	FALSE
Supporting protocol for TCP/IP	FALSE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	FALSE
External reset possible	TRUE
Suitable for rail mounting	FALSE
Degree of protection (IP)	IP65
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Release class	CLASS 10 A
With short-circuit release	FALSE
With fuse	FALSE
Type of electrical connection of main circuit	Screw connection
Type of electrical connection for auxiliary- and control current circuit	Screw connection
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Voltage type for actuating	AC
Type of motor starter	Direct online starter (DOL)
Rated operation power at AC-3, 230 V, 3-phase	0.18 kW
Rated power, 460 V, 60 Hz, 3-phase	0.37 kW
Rated power, 575 V, 60 Hz, 3-phase	0.37
Rated operation current at AC-3, 400 V	1.2 A
Ambient temperature, upper operating limit	40 °C
Temperature compensated overload protection	TRUE
Vrsta proizvoda	izravni pokretač
