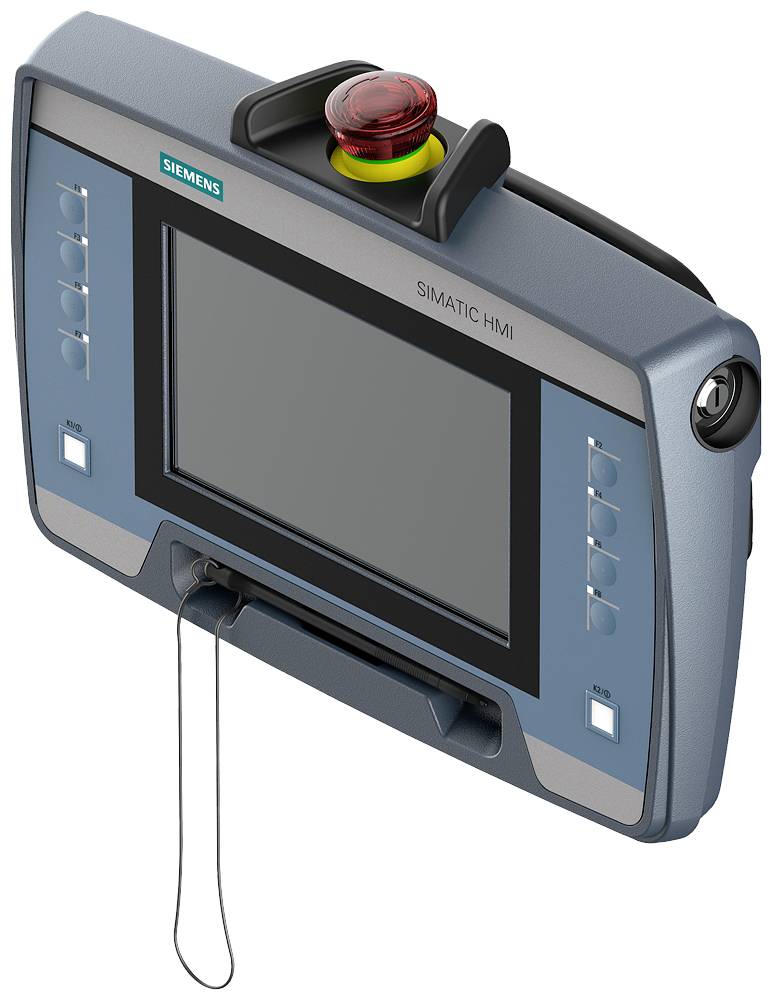

Siemens 6AV2145-6GB06-0AA0 6AV21456GB060AA0 PLC upravljačka ploča

Marka Siemens

(0 ocen)

5.819,00 EUR

(= 43.843,26 kn)

Kod proizvoda: 2878384
EAN: 4047618114404
Procijenjena isporuka:15.10.2026 - 19.10.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6AV21456GB060AA0

EAN koda: 4047618114404

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 2878384 Siemens 6AV2145-6GB06-0AA0 6AV21456GB060AA0 PLC upravljačka ploča

Upute za rad i sigurnost 2878384 Siemens 6AV2145-6GB06-0AA0 6AV21456GB060AA0 PLC upravljačka ploča

Tehnički podaci

Vrsta proizvoda	PLC upravljačka ploča
Tip	6AV2145-6GB06-0AA0
Proizvođač-br. dijela	6AV21456GB060AA0
Sadržaj	1 St.
Width	307
Height	224 mm
Depth	91 mm
Weight	1.3 kg/m
Suitable for safety functions	TRUE
Screen diagonal	7 mm
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	1
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	TRUE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	FALSE
Colour display	TRUE
Number of colours of the display	16777216
Number of pixels, horizontal	800
Number of pixels, vertical	480
With touch screen	TRUE
Number of function buttons, programmable	8
With alpha numeric keyboard	FALSE
Usable project memory/user memory	12000 kB
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
Process value representation (output) possible	TRUE
Process default value (input) possible	TRUE
With recipes	TRUE
Number of password levels	50
With printer output	FALSE
Number of online languages	32
Pluggable connection	TRUE
Max. fall height according to IEC 60068-2-32	1.2 m
Degree of protection (IP)	IP65
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	1
Number of HW-interfaces wireless	0
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	TRUE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	TRUE
Supporting protocol for PROFIsafe	TRUE
Supporting protocol for SafetyBUS p	FALSE
Type of display	TFT
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	8
Number of system buttons	0
