Opis

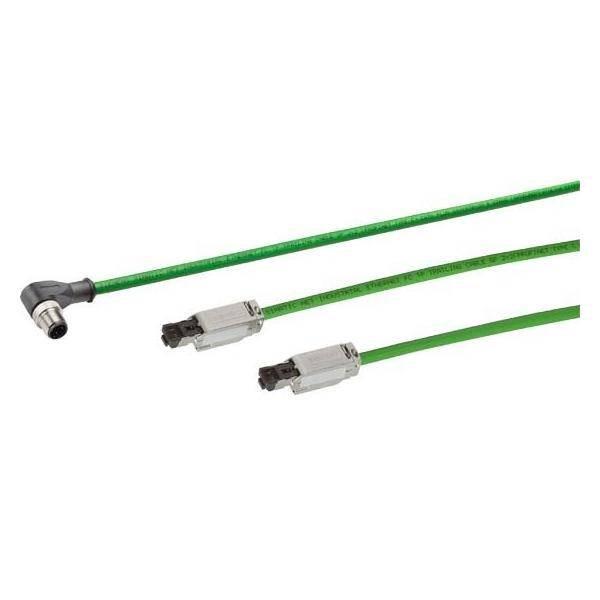

IE connecting cable IE FC RJ45 Plug-180/IE FC RJ45 Plug-180, IE FC Trailing Cable GP Pre-assembled with 2x IE FC RJ45 plug 180, length 3.0 m. For connecting Industrial Ethernet stations to RJ45 interfaces with degree of protection IP20/30, with transfer rates of 10/100 Mbps. For use in trailing cables, e.g. in the case of continuously moving machine parts. Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Time-saving and fault-free connection of terminal stations by means of pre-assembled AWG22 connecting cables. Network immune to interference due to double-shielded cables and integrated grounding concept. Reliable shield contact and strain relief are integrated. Exceeds Category 5 (Cat5e) of the international cabling standards ISO/IEC11801 and EN50173.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6XV18715BH30
EAN koda: 4019169854832
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 2876053 Siemens 6XV18715BH30 1 St.
Podatkovna tablica 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Upute za rad i sigurnost 2876053 Siemens 6XV18715BH30 1 St.
Tehnički podaci
| Tip |
6XV1871-5BH30 |
|---|---|
| Boja |
zelena |
| Proizvođač-br. dijela |
6XV18715BH30 |
| Sadržaj |
1 St. |
| RoHS-konforno |
Da |
| Material core insulation |
Other |
| Core identification |
Colour |
| Cable type |
Other |
| Flame retardant |
No |
| Stranding element |
Quad |
| Colour outer sheath |
Green |
| Category |
5E |
| Diameter conductor |
0.75 mm |
| Screen over stranding element |
None |
| Screen over stranding |
Foil + braiding |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Permitted cable outer temperature during assembling/handling |
-10-75 °C |
| Permitted cable outer temperature after assembling without vibration |
-25-75 °C |
| Number of stranding elements |
2 |
| Number of cores |
4 |
| Suitable for underground installation |
FALSE |
| Stranding |
Bundle |
| Outer diameter approximate |
6.5 mm |
| NVP value |
66 % |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
None |
| Min. permitted bending radius, moving application with forced guidance |
58.5 |
| Min. permitted bending radius, moving application/free movement |
58.5 |
| Min. permitted bending radius, stationary application/permanent installation |
58.5 |
| Specification material outer sheath |
Other |
