Opis

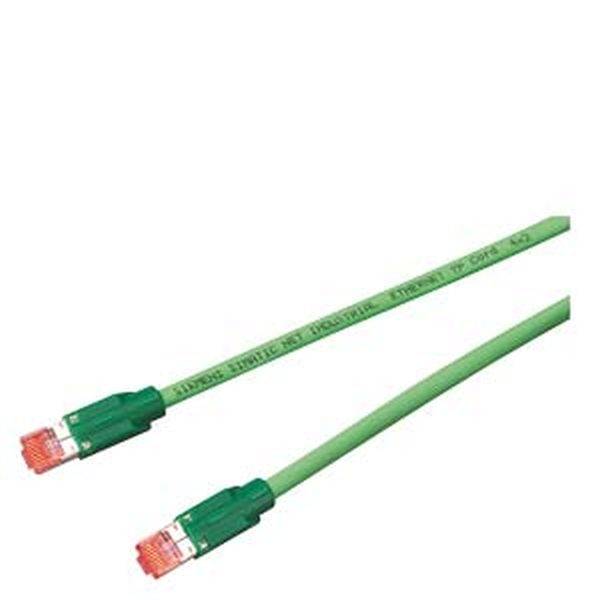

Industrial Ethernet TP Cord RJ45/RJ45, TP cord pre-assembled with 2 RJ45 plug, length 2 m. Simple connection of terminal devices with an RJ45 interface to the interference-proof Industrial Ethernet FastConnect cabling system (10/100 Mbps). Silicone-free, therefore suitable for use in the automotive industry (for example on paint lines).Quick and error-free commissioning thanks to pre-assembled, factory-tested patch cables. Simple cable laying due to small cable diameter. Color-coded RJ45 connectors for differentiation between crossed and uncrossed lines (crossed: RJ45 connector red on both sides, not crossed: RJ45 connector green on both sides).
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6XV18502GH20
EAN koda: 4019169401630
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 2875987 Siemens 6XV18502GH20 1 St.
Podatkovna tablica 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Upute za rad i sigurnost 2875987 Siemens 6XV18502GH20 1 St.
Tehnički podaci
| Tip |
6XV1850-2GH20 |
|---|---|
| Boja |
zelena |
| Vrsta zaštite |
IP20 |
| Proizvođač-br. dijela |
6XV18502GH20 |
| Sadržaj |
1 St. |
| RoHS-konforno |
Da |
| Izvedba |
priključni kabel |
| Material core insulation |
Other |
| Core identification |
Colour |
| Cable type |
S/FTP |
| Flame retardant |
No |
| Stranding element |
Pairs |
| Colour outer sheath |
Green |
| Category |
7 |
| Diameter conductor |
0.48 mm |
| Screen over stranding element |
Foil |
| Screen over stranding |
Braiding |
| Material outer sheath |
Polyvinyl chloride (PVC) |
| Permitted cable outer temperature during assembling/handling |
-40-70 °C |
| Permitted cable outer temperature after assembling without vibration |
-40-70 °C |
| Number of stranding elements |
2 |
| Number of cores |
4 |
| Suitable for underground installation |
FALSE |
| Stranding |
Bundle |
| Low smoke (according to EN 61034-2) |
FALSE |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
None |
| Min. permitted bending radius, moving application with forced guidance |
42 |
| Min. permitted bending radius, moving application/free movement |
42 |
| Min. permitted bending radius, stationary application/permanent installation |
42 |
| Specification material outer sheath |
Other |
