Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6EP44368XB000DY0
EAN koda: 4025515155072
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

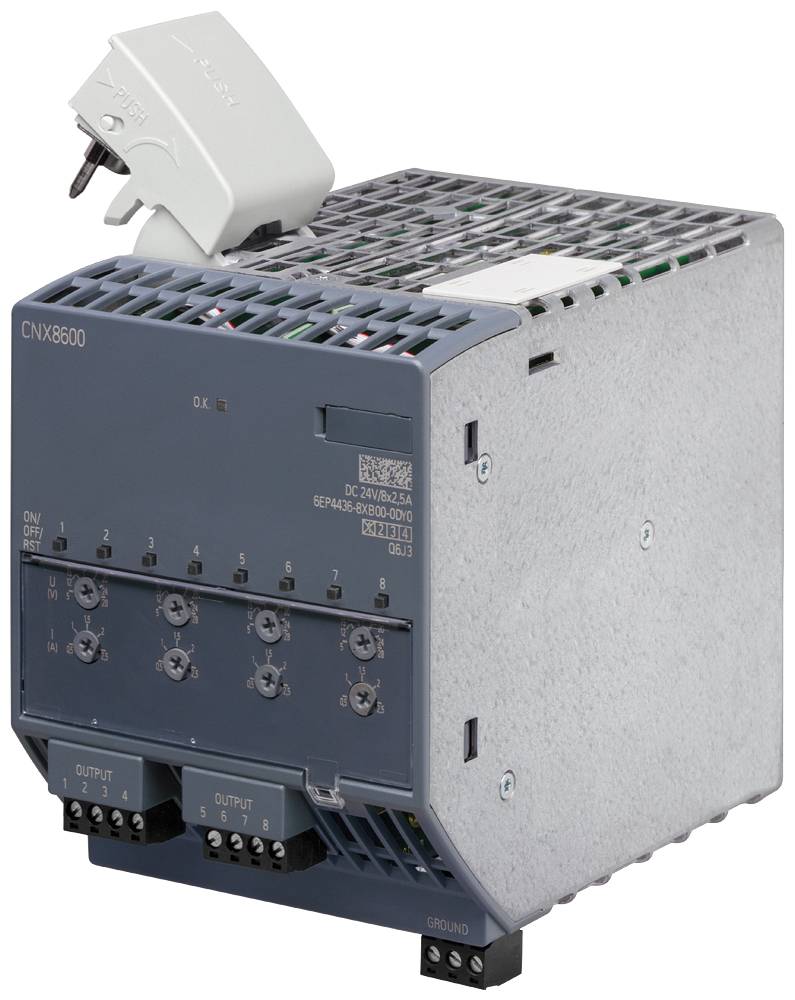

Podatkovna tablica 2873223 Siemens 6EP44368XB000DY0 DIN-napajanje-redundančni modul (DIN-letva)
Tehnički podaci
| Vrsta proizvoda |
DIN-napajanje-redundančni modul (DIN-letva) |
|---|---|
| Proizvođač-br. dijela |
6EP44368XB000DY0 |
| Tip |
6EP4436-8XB00-0DY0 |
| Width |
100 |
| Height |
125 mm |
| Depth |
150 mm |
| Built-in height |
225 mm |
| Built-in width |
100 mm |
| Suitable for distribution board |
TRUE |
| Power output |
480 W |
| Output voltage stabilized |
TRUE |
| Type of electric connection |
Screw connection |
| Suitable for rail mounting |
TRUE |
| Wall mounting possible |
FALSE |
| Stabilized |
TRUE |
| Degree of protection (IP) |
IP20 |
| Direct mounting possible |
FALSE |
| Secondary voltage adjustable |
TRUE |
| Short-circuit-proof |
TRUE |
| Max. output current 1 |
20 A |
| Max. output current 2 |
2.5 A |
| Max. output current 3 |
2.5 A |
| Nominal value output voltage 1 |
24 V |
| Nominal value output voltage 2 |
24 V |
| Nominal value output voltage 3 |
24 V |
| Nominal value output current 1 |
20 A |
| Nominal value output current 2 |
2.5 A |
| Nominal value output current 3 |
2.5 A |
