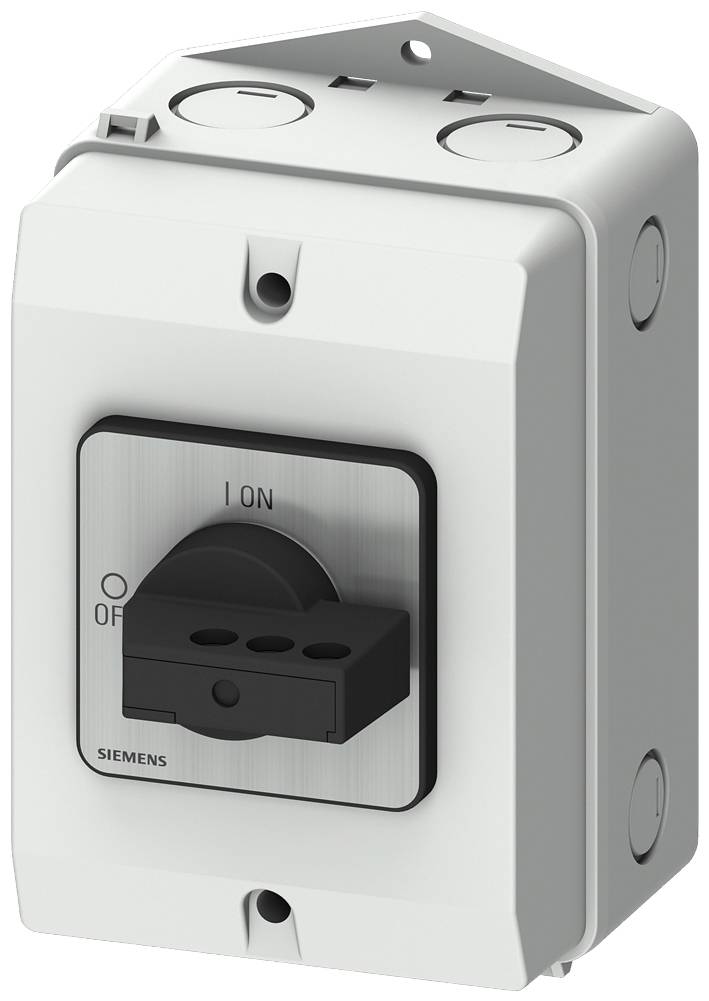

Siemens 3LD20842GP21

Marka Siemens

(0 ocen)

104,99 EUR

(= 791,05 kn)

Proizvajalčeva koda: 3LD20842GP21

EAN koda: 4001869573991

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Rated operation power at AC-3, 400 V	6 kW
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Rated permanent current Iu	16 A
Number of poles	3
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	FALSE
Type of control element	Wing knob
Version as main switch	TRUE
Version as safety switch	FALSE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	7.5 kW
Rated short-time withstand current lcw	0.34 kA
Colour control element	Black
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	TRUE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	16 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	16
Degree of protection (NEMA)	Other
