Opis

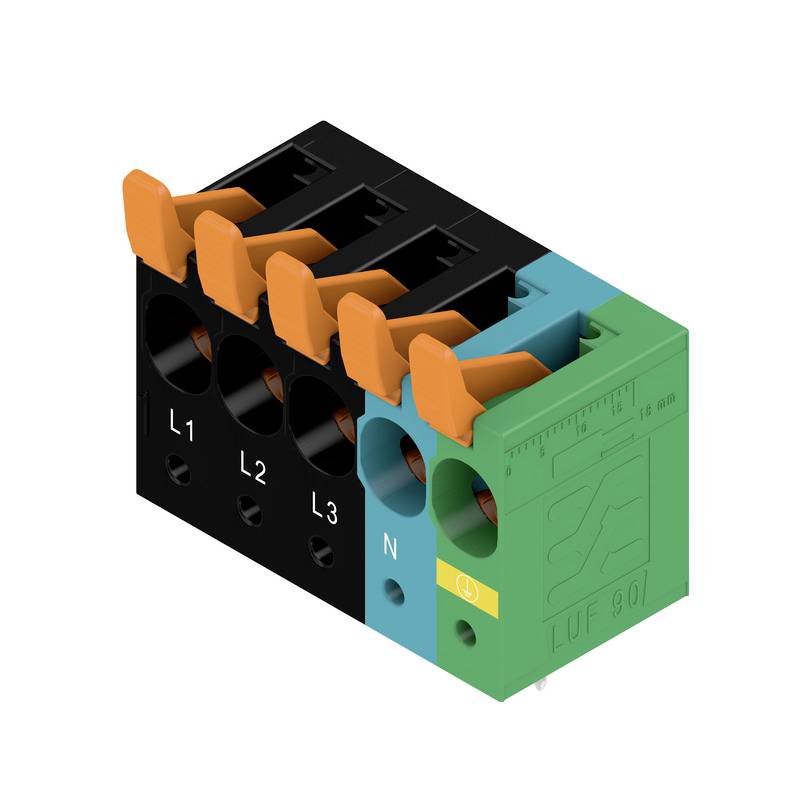

Terminal za tiskanu ploču (PCB terminal, terminal za tiskanu ploču) za jednostavan i siguran prijenos podataka izravno na tiskanu ploču.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2878440000
EAN koda: 4064675668671
Registrirana blagovna znamka: Weidmüller
Ime proizvajalca: Weidmüller GmbH & Co. KG
Naslov proizvajalca: Klingenbergstr. 26
Poštna številka proizvajalca: 32758
Kraj proizvajalca: Detmold
Država proizvajalca: Germany
Telefon proizvajalca: +495231140
Elektronski kontakt proizvajalca: https://www.weidmueller.com/int
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnički podaci
| Tip |
LUF 10.00/05/90V 5.0SN BK BX SO |
|---|---|
| Vrsta proizvoda |
stezaljka za tiskane ploče |
| Proizvođač-br. dijela |
2878440000 |
| Sadržaj |
500 St. |
| Height |
47.03 mm |
| Housing colour |
Black |
| Rated voltage |
690 V |
| Operating temperature |
-40-120 °C |
| Type of fastening |
Solder |
| Inflammability class of insulation material according to UL94 |
V0 |
| Rated surge voltage |
6 kV |
| Overvoltage category |
II |
| Pollution degree |
2 |
| Connection type conductor |
Push-in clamp connection |
| Connection type PCB |
Soldering connection |
| Length pin |
5 mm |
| Modular spacing connections |
10 mm |
| Type of banding |
Other |
| Connectable conductor cross section solid-core |
0.5-16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5-16 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5-25 mm² |
| Connectable conductor cross section multi-wired |
6-25 mm² |
| Degree of protection (IP), mounted |
Other |
| Material insulation body |
Polyamide (PA) |
| Angle PCB/conductor connection |
0°/180° (horizontal) |
| Type of PCB fastening |
Other |
| Rated current In |
82 A |
| Number of electrical connections |
5 |
