Opis

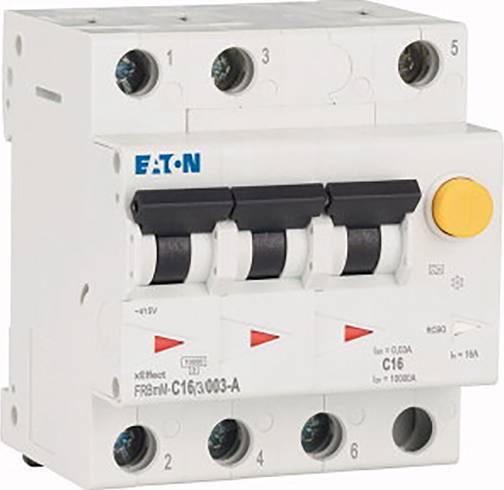

FI/LS kombinacija, 16 A, 30 mA, LS karakteristika: C, 3p, FI karakteristika: A
Kompaktna zaštitna sklopka/minijaturna zaštitna sklopka za različite primjene.
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: Y7-170740
EAN koda: 4015081674671
Registrirana blagovna znamka: Eaton
Ime proizvajalca: Eaton Electric GmbH
Naslov proizvajalca: Hein-Moeller-Str. 7-11
Poštna številka proizvajalca: 53115
Kraj proizvajalca: Bonn
Država proizvajalca: Germany
Telefon proizvajalca: +496951709895
Elektronski kontakt proizvajalca: https://www.eaton.com
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Izvedba |
3 pola + N |
|---|---|
| Vrsta proizvoda |
FID zaštitna sklopka/zaštitna sklopka za vodove |
| Karakteristike okidanja |
A |
| Nazivna diferencijalna struja |
0.03 A |
| Sadržaj |
1 St. |
| Nazivna struja |
16 A |
| Nazivna struja - zaokružena |
16 A |
| Izvedba |
3-fazni |
| Voltage type |
AC |
| Built-in depth |
75.5 mm |
| Rated current |
16 A |
| Rated voltage |
415 V |
| Release characteristic |
C |
| Rated insulation voltage Ui |
500 V |
| Rated fault current |
0.03 A |
| Leakage current type |
A |
| Surge current capacity |
0.25 kA |
| Current limiting class |
3 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Width in number of modular spacings |
4 |
| Frequency |
50 Hz |
| Degree of protection (IP) |
IP20 |
| Number of protected poles |
3 |
| Concurrently switching neutral conductor |
FALSE |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
0 kA |
| Connectable conductor cross section solid-core |
1-25 mm² |
| Connectable conductor cross section multi-wired |
1-25 mm² |
| With interlocking device |
FALSE |
| Ambient temperature during operating |
25-40 °C |
| Flush-mounted installation |
FALSE |
| Number of poles (total) |
3 |
| Anti-nuisance tripping version |
FALSE |
| Rated impulse withstand voltage Uimp |
4 |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
10 |
| Disconnection characteristic |
Undelayed |
| Rated short-circuit breaking capacity according to EN 61009 |
10 |
