Opis

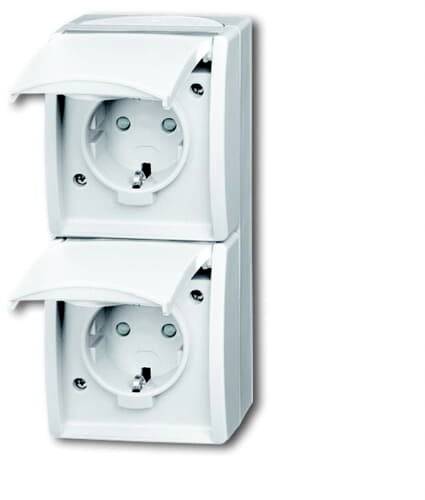

2-smjerno Za okomitu ugradnju S utičnim priključkom Prethodno ožičeno S poklopcima na šarkama. 2 P + E,
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2CKA002084A0722
EAN koda: 4011395114995
Registrirana blagovna znamka: ABB
Ime proizvajalca: ABB Asea Brown Boveri Ltd
Naslov proizvajalca: Affolternstrasse 44
Poštna številka proizvajalca: 8050
Kraj proizvajalca: Zurich
Država proizvajalca: Switzerland
Telefon proizvajalca: +41433177111
Elektronski kontakt proizvajalca: https://global.abb/group/en
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci
| Vrsta proizvoda |
utičnica sa zaštitnim kontaktom |
|---|---|
| Nazivni napon |
250 V |
| Nazivna struja |
16 A |
| Vrsta montaže |
nadžbukna |
| Boja |
čista bijela (RAL 9010) |
| Vrsta zaštite |
IP44 |
| dim. |
(Š x V x D) 74 x 167 x 55 mm |
| Širina |
74 mm |
| Visina |
167 mm |
| Dubina |
55 mm |
| Sadržaj |
1 St. |
| Težina |
0.23 |
| Nominal current |
16 A |
| Nominal voltage |
250 V |
| Mounting method |
Surface mounted |
| Colour |
White |
| Halogen free |
TRUE |
| Number of units |
2 |
| Lockable |
FALSE |
| With hinged lid |
TRUE |
| Connection type |
Push-in clamp |
| Surface protection |
Untreated |
| With signal lamp |
FALSE |
| Number of phases |
1 |
| With enhanced contact protection |
TRUE |
| Frequency |
50-50 MHz |
| With on/off switch |
FALSE |
| Label space/information surface |
FALSE |
| Material quality |
Thermoplastic |
| Rotated central insert |
FALSE |
| Overvoltage protection |
FALSE |
| Fault current protection |
FALSE |
| Insulated mounting |
TRUE |
| Material |
Plastic |
| Rated fault current |
0 A |
| Type of fastening |
Mounting with screw |
| Imprint/indication |
None |
| RAL-number (similar) |
9010 |
| Impact strength |
IK04 |
| Transparent |
FALSE |
| Surface finishing |
Matt |
| With miniature fuse |
FALSE |
| With loop through function |
TRUE |
| Suitable for degree of protection (IP) |
IP44 |
| Device width |
74 mm |
| Device height |
167 mm |
| Device depth |
55 mm |
| Number of socket outlets switchable |
0 |
| With function lighting |
FALSE |
| With orientation lighting |
FALSE |
| Number of modules (module system) |
1 |
| IFTTT support available |
FALSE |
| Number of active contacts (round) |
4 |
| Number of active contacts (flat) |
0 |
| Min. depth of built-in installation box |
0 |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Anti-bacterial treatment |
FALSE |
