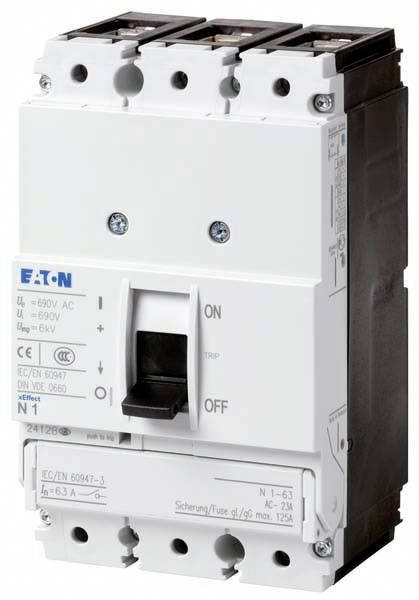

Eaton 281235 PN1-160 teretna rastavna sklopka 160 A 690 V

Marka Eaton

(0 ocen)

415,00 EUR

(= 3.126,82 kn)

Kod proizvoda: 2307138
EAN: 4015082812355
Procijenjena isporuka:06.10.2026 - 08.10.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 281235

EAN koda: 4015082812355

Registrirana blagovna znamka: Eaton

Ime proizvajalca: Eaton Electric GmbH

Naslov proizvajalca: Hein-Moeller-Str. 7-11

Poštna številka proizvajalca: 53115

Kraj proizvajalca: Bonn

Država proizvajalca: Germany

Telefon proizvajalca: +496951709895

Elektronski kontakt proizvajalca: https://www.eaton.com

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 2307138 Eaton 281235 PN1-160 teretna rastavna sklopka 160 A 690 V

Tehnički podaci

RoHS-konforno	Da
Nazivna struja - zaokružena	160 A
Nazivna struja	160 A
Boja	crna
Sadržaj	1 St.
Nazivni napon	690 V
Broj polova	3
Width	90
Height	145 mm
Depth	88 mm
Rated operation power at AC-3, 400 V	0 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	160 A
Number of poles	3
Rated operating voltage	690-690 V
Conditioned rated short-circuit current Iq	0 kA
Degree of protection (IP), front side	IP20
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	TRUE
Type of control element	Rocker lever
Version as main switch	TRUE
Version as safety switch	FALSE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	90 kW
Rated short-time withstand current lcw	2 kA
Colour control element	Black
Suitable for floor mounting	TRUE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	TRUE
Suitable for intermediate mounting	TRUE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	0 A
Switching power at 400 V	0 kW
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	0
Degree of protection (NEMA)	Other
With pre-assembled cabling	FALSE
Vrsta proizvoda	teretna rastavna sklopka
