Varnost izdelkov (GPSR)
Proizvajalčeva koda: 207319
EAN koda: 4015082073190
Registrirana blagovna znamka: Eaton
Ime proizvajalca: Eaton Electric GmbH
Naslov proizvajalca: Hein-Moeller-Str. 7-11
Poštna številka proizvajalca: 53115
Kraj proizvajalca: Bonn
Država proizvajalca: Germany
Telefon proizvajalca: +496951709895
Elektronski kontakt proizvajalca: https://www.eaton.com
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnički podaci

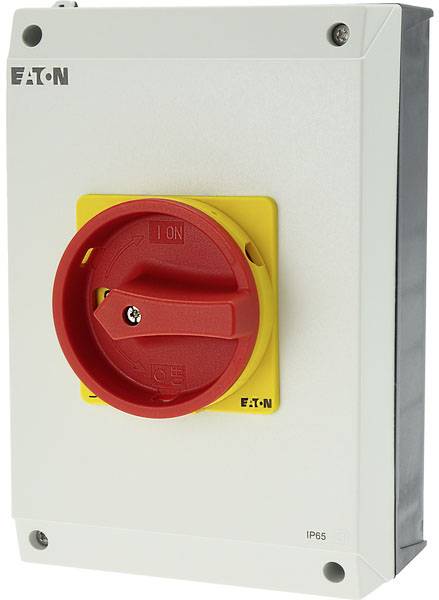

| Vrsta proizvoda |
prekidač za održavanje |
|---|---|
| Određene značajke prekidača/tipkala |
za podnu montažu |
| Boja kućišta/gumba |
crvena |
| Vrsta aktiviranja |
rotirajući pogon |
| Vrsta montaže |
nadgradnja |
| Broj polova |
4 |
| Priključak |
vijak |
| Sklopni napon |
690 V |
| Snaga |
15 kW |
| Vrsta zaštite |
IP65 |
| Sadržaj |
1 St. |
| Tip |
P1-32/I2/SVB/N |
| RoHS-konforno |
Da |
| Boja |
višebojna |
| Width |
100 |
| Height |
180 mm |
| Depth |
115 mm |
| Rated operation power at AC-3, 400 V |
13 kW |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Rated permanent current Iu |
32 A |
| Number of poles |
4 |
| Rated operating voltage |
690-690 V |
| Conditioned rated short-circuit current Iq |
80 kA |
| Degree of protection (IP), front side |
IP65 |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of switches |
1 |
| Interlockable |
TRUE |
| Motor drive integrated |
FALSE |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
TRUE |
| Type of control element |
Door coupling rotary drive |
| Version as main switch |
TRUE |
| Version as safety switch |
FALSE |
| Version as maintenance-/service switch |
TRUE |
| Rated operation power at AC-23, 400 V |
15 kW |
| Rated short-time withstand current lcw |
0.64 kA |
| Colour control element |
Red |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for distribution board installation |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Max. rated operation voltage Ue AC |
690 V |
| Motor drive optional |
FALSE |
| Voltage release optional |
FALSE |
| Device construction |
Complete device in housing |
| Rated permanent current at AC-21, 400 V |
32 A |
| Switching power at 400 V |
15 kW |
| Version as reversing switch |
FALSE |
| Rated permanent current at AC-23, 400 V |
32 |
| Degree of protection (NEMA) |
12 |
| With pre-assembled cabling |
FALSE |
