Varnost izdelkov (GPSR)
Proizvajalčeva koda: 239598
EAN koda: 4015082395988
Registrirana blagovna znamka: Eaton
Ime proizvajalca: Eaton Electric GmbH
Naslov proizvajalca: Hein-Moeller-Str. 7-11
Poštna številka proizvajalca: 53115
Kraj proizvajalca: Bonn
Država proizvajalca: Germany
Telefon proizvajalca: +496951709895
Elektronski kontakt proizvajalca: https://www.eaton.com
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.
Podatkovna tablica 2306685 Eaton DILM150-22(RAC240) učinska zaštita 3 zatvarač 75 kW 1 St.

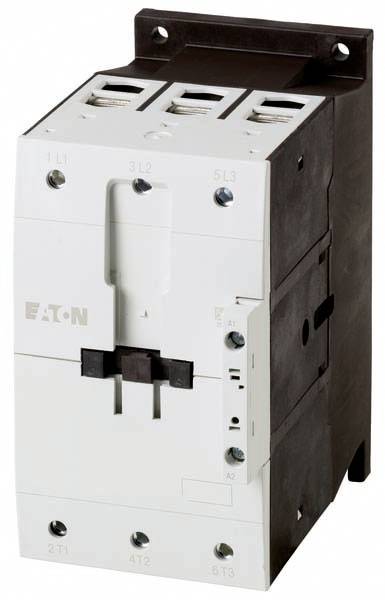

Tehnički podaci
| Vrsta proizvoda |
učinska zaštita |
|---|---|
| Tip |
DILM150-22(RAC240) |
| Broj polova |
3-polni |
| Vrsta kontakta |
3 zatvarač |
| Vrsta pomoćnog kontakta |
2 otvarač |
| Kontrola napona (min.) |
190 V/AC |
| Kontrolni napon (maks.) |
240 V/AC |
| Područje upravljačkog napona |
190 - 240 V/AC |
| Snaga |
75 kW |
| Priključak |
vijak |
| Sadržaj |
1 St. |
| RoHS-konforno |
Da |
| Width |
90 mm |
| Height |
170 mm |
| Depth |
175 mm |
| Suitable for distribution board |
FALSE |
| Rated operation power at AC-3, 400 V |
75 kW |
| Number of normally open contacts as main contact |
3 |
| Number of normally closed contacts as main contact |
0 |
| Number of auxiliary contacts as normally open contact |
2 |
| Number of auxiliary contacts as normally closed contact |
2 |
| Rated operation current Ie at AC-3, 400 V |
150 A |
| Rated operation current Ie at AC-1, 400 V |
190 A |
| Rated control supply voltage AC 50 Hz |
190-240 V |
| Rated control supply voltage AC 60 Hz |
190-240 V |
| Rated control supply voltage DC |
0-0 V |
| Type of electrical connection of main circuit |
Screw connection |
| Operating voltage AC 50 Hz |
230-690 V |
| Operating voltage AC 60 Hz |
230-690 V |
| Voltage type for actuating |
AC |
| Rated operation current Ie at AC-4, 400 V |
65 A |
| Rated operation power at AC-4, 400 V |
33 kW |
| Rated operation power NEMA |
93 kW |
