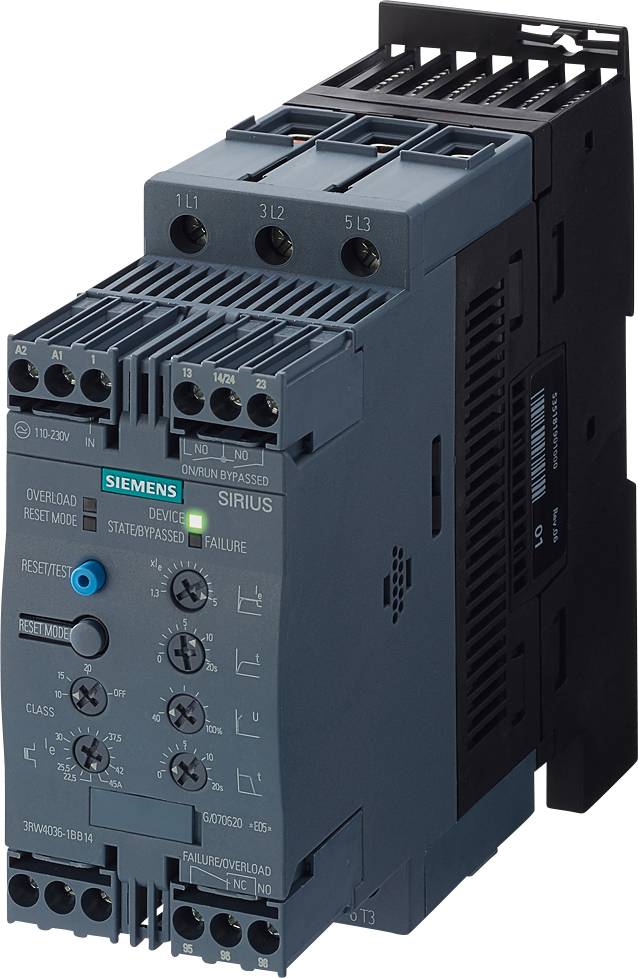

SIRIUS soft starter S2 45 A, 22 kW/400 V, 40 °C 200-480 V AC, 110-230 V AC/DC Screw terminals Soft starter SIRIUS 3RW40 for standard applications for the soft starting and ramp-down of three-phase asynchronous motors.
Soft starting, reduction of current peaks, prevention of supply voltage fluctuations during startup, reduction of load on the power supply network, reduction of mechanical load in the drive, considerable saving of space and wiring compared to star-delta (wye-delta) starters and frequency converters, maintenance-free switching and extremely easy handling. The integrated bypass allows a very compact construction and ensures low heat dissipation in the control cabinet. Intelligent monitoring functions protect the soft starter against overheating and the motor against overload. In addition, you can limit the current during startup to a settable maximum value. With the integrated remote reset, you can quickly and easily clear faults from a remote location. Worldwide approvals (e.g. IEC and UL/CSA), also for applications in hazardous areas (ATEX or IEC Ex).
The 3RW soft starters are available for supply systems up to 690 V in a wide performance range with different control supply voltages and all with both screw and spring-loaded terminals. For the 3RW30/40 there are additional versions with 24 V control supply voltage. Some of the 3RW40 up to size S3, and all 3RW44 units also offer thermistor motor protection.

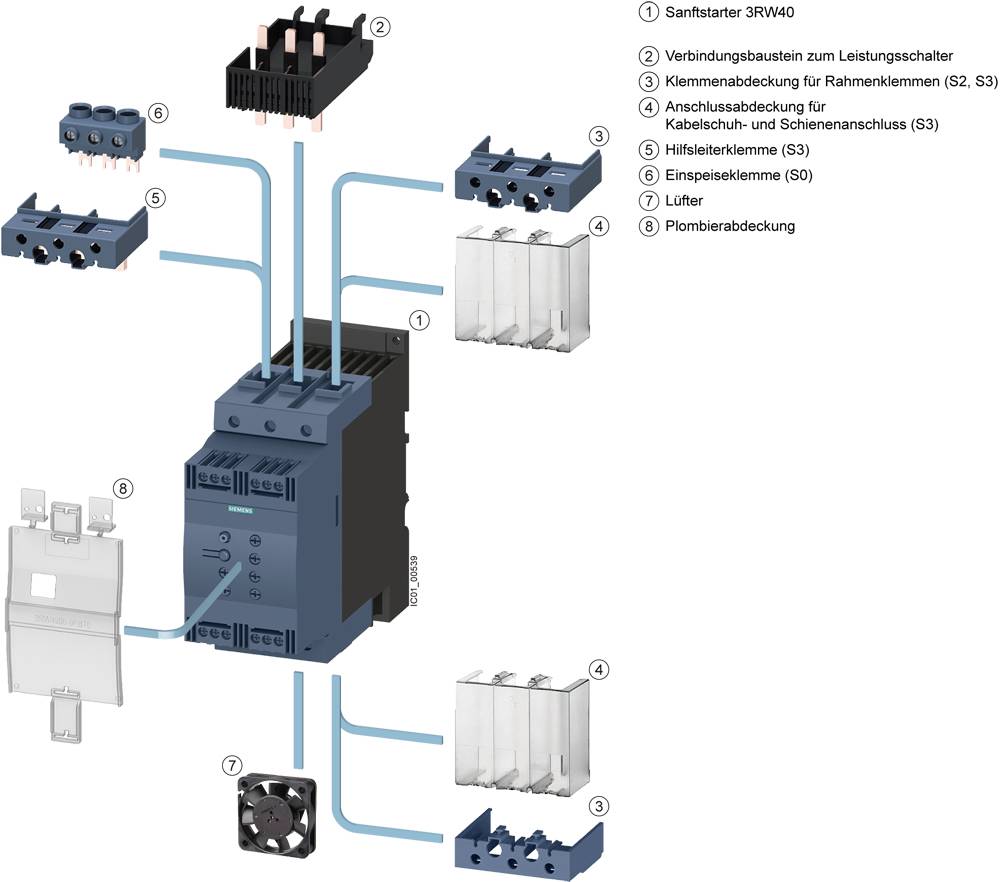

With the optional link module, the soft starters can be attached to the circuit breakers, even for the versions with spring-loaded terminals. The optional fan permits an even more compact design in the control cabinet.
Simple, efficient and always up to date - SIRIUS modular system.

Isporuka uključuje

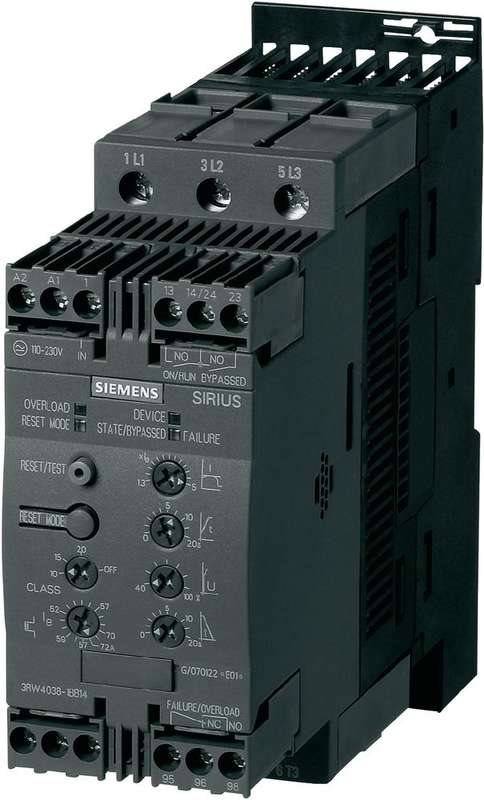

Mekani zaganjač Siemens 3RW4036 snaga motora pri 400 V 22 kW snaga motora pri 230 V 11 kW 400 V/AC nazivna struja 45 A

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3RW40361BB14

EAN koda: 4011209691841

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

  Podatkovna tablica 197085 Siemens 3RW4036-1BB14 3RW40361BB14, 1x -04011209691841

  Upute za rad i sigurnost 197085 Siemens 3RW4036-1BB14 3RW40361BB14, 1x -04011209691841
