Opis

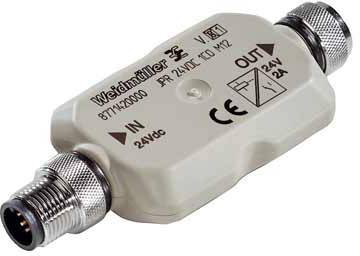

Obrada signala signalne kutije M12 JPR 24VDC 1CO M12
Ovaj tekst je strojno preveden.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 8771420000
EAN koda: 4032248439621
Registrirana blagovna znamka: Weidmüller
Ime proizvajalca: Weidmüller GmbH & Co. KG
Naslov proizvajalca: Klingenbergstr. 26
Poštna številka proizvajalca: 32758
Kraj proizvajalca: Detmold
Država proizvajalca: Germany
Telefon proizvajalca: +495231140
Elektronski kontakt proizvajalca: https://www.weidmueller.com/int
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Podatkovna tablica 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Upute za rad i sigurnost 1774671 spojni relej Weidmüller JPR 24VDC 1CO M12 1 St.
Tehnički podaci
| Vrsta proizvoda |
spojni relej |
|---|---|
| Tip |
JPR 24VDC 1CO M12 |
| Sadržaj |
1 St. |
| RoHS-konforno |
Da |
| Width |
36 |
| Height |
14.4 mm |
| Depth |
83 mm |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
TRUE |
| Type of electric connection |
Plug-in connection |
| Rated control supply voltage DC |
19.2-28.8 V |
| Degree of protection (IP) |
IP67 |
| With LED indication |
FALSE |
| Material contact |
Other not-copper alloys |
| Voltage type for actuating |
DC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
1 |
