Siemens 6AV3688-3AF37-0AX0 6AV36883AF370AX0 PLC upravljačka ploča

Marka Siemens

(0 ocen)

735,00 EUR

(= 5.537,86 kn)

Kod proizvoda: 1760250
EAN: 4025515079163
Procijenjena isporuka:19.10.2026 - 21.10.2026

Opis

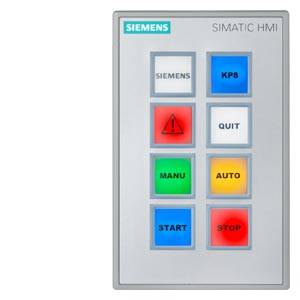

SIMATIC HMI KP8F PN, tipkovnica, 8 kratkoročnih tipki s višebojnih LED dioda, PROFINET sučelja s PROFIsafe; 8 DE / DA i 2 sigurnosne DE igle, 24V prolaz kroz petlje Parametrizabilan od STEP 7 V5.5 SIMATIC HMI KP8F PN, tipkovnica, 8 kratkoročnih tipki s višebojnim LED-ima, PROFINET sučelja s PROFIsafe; 8 DE / DA i 2 Sigurnosne DE igle, 24V DC omče kroz parametar iz STEP 7 V5.5 SIMATIC HMI Tipkovnica KP8F PN

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6AV36883AF370AX0

EAN koda: 4025515079163

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1760250 Siemens 6AV3688-3AF37-0AX0 6AV36883AF370AX0 PLC upravljačka ploča

Upute za rad i sigurnost 1760250 Siemens 6AV3688-3AF37-0AX0 6AV36883AF370AX0 PLC upravljačka ploča

Tehnički podaci

Vrsta proizvoda	PLC upravljačka ploča
Broj digitalnih ulaza maks.	8
Broj izlaza maks.	8
Tip	6AV3688-3AF37-0AX0
Proizvođač-br. dijela	6AV36883AF370AX0
Širina	98 mm
Potrošnja struje	300 mA
Sadržaj	1 St.
Montaža	Montažna kopča
Serija	Siemens-HMI
Built-in depth	49 mm
Suitable for safety functions	TRUE
Number of digital inputs	8
Number of digital outputs	8
Operating temperature	0-55 °C
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	2
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
With optical interface	FALSE
Supporting protocol for TCP/IP	FALSE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	FALSE
Degree of protection (IP), front side	IP65
Number of buttons	8
With parameterizable buttons	TRUE
Number of indicator lamps	8
With test for buttons and indicator lamps	TRUE
Number of built-in positions for control circuit devices	0
Number of LED colour modes	5
Width of the front	98 mm
Height of the front	155 mm
Suitable for rail mounting	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	2
Number of HW-interfaces wireless	0
Front built-in possible	TRUE
Rack-assembly possible	FALSE
Wall mounting/direct mounting	FALSE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	TRUE
Supporting protocol for PROFIsafe	TRUE
Supporting protocol for SafetyBUS p	FALSE
Supply voltage DC	20.4-28.8 V
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
