Siemens 6AV2125-2JB23-0AX0 6AV21252JB230AX0 PLC mobilni panel

Marka Siemens

(0 ocen)

5.799,00 EUR

(= 43.692,57 kn)

Kod proizvoda: 1759462
EAN: 4047623404750
Procijenjena isporuka:05.11.2026 - 09.11.2026

Opis

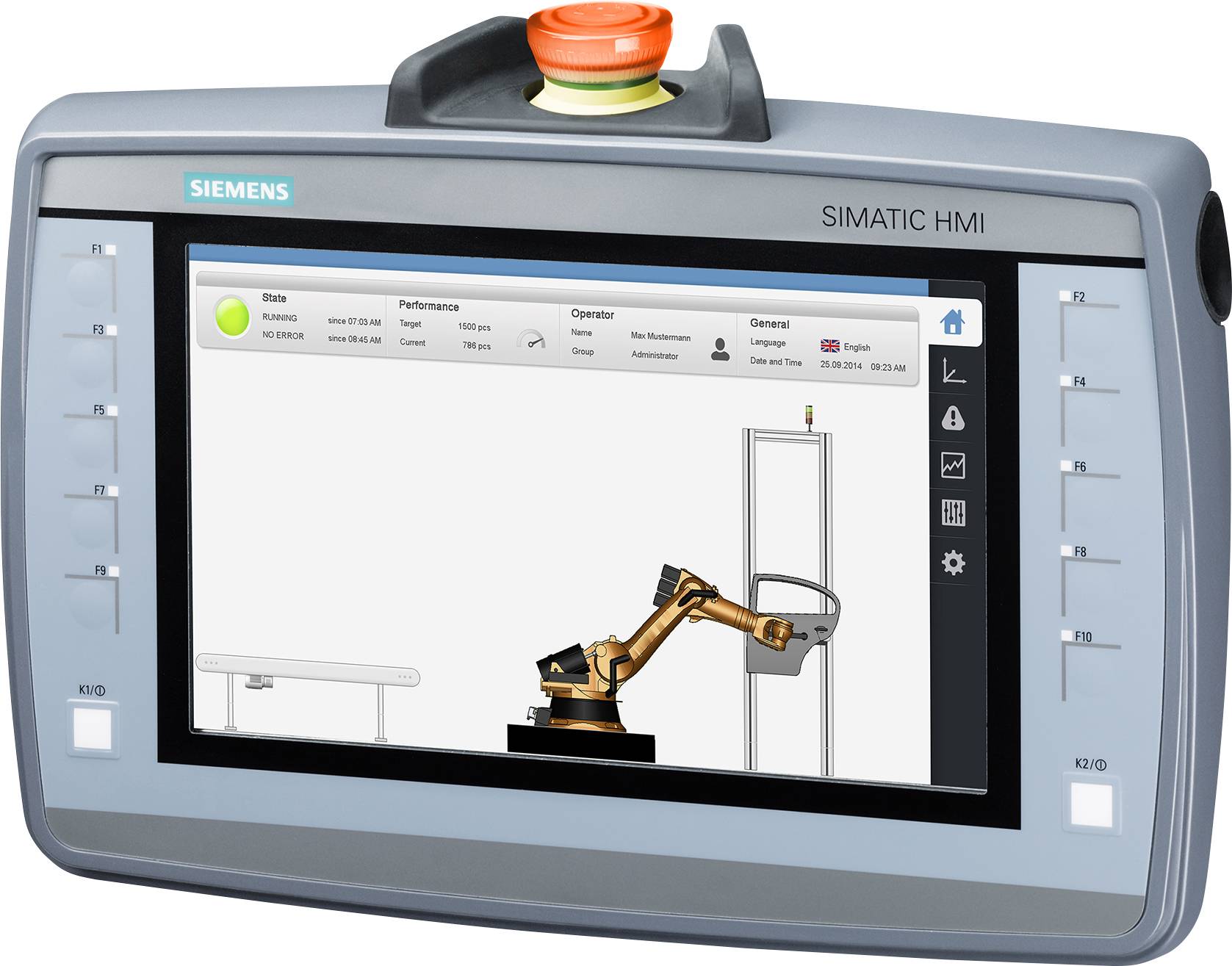

SIMATIC HMI KTP900F Mobitel, 9.0 "TFT zaslon, 800x 480 piksela, 16m boja, tipka i touch operacija, 10 funkcijskih tipki, 1x PROFINET / Industrial Ethernet sučelje, 1x multimedijska kartica, 1x USB, prekidač za ključ, Tipkovnica, konfigurabilna od WinCC Comfort V13 SP1 SIMATIC HMI KTP900F mobilni, 9.0 "TFT zaslon, 800x 480 piksela, 16m boja, gumb i dodir, 10 funkcijskih tipki, 1x PROFINET / Industrial Ethernet sučelje, 1x multimedijska kartica, 1x USB, Tipka za omogućivanje, prekidač za nuždu / STOP, konfigurabilan od WinCC Comfort V13 SP1 SIMATIC HMI Mobile Panel KTP900F

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6AV21252JB230AX0

EAN koda: 4047623404750

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1759462 Siemens 6AV2125-2JB23-0AX0 6AV21252JB230AX0 PLC mobilni panel

Upute za rad i sigurnost 1759462 Siemens 6AV2125-2JB23-0AX0 6AV21252JB230AX0 PLC mobilni panel

Tehnički podaci

Vrsta proizvoda	PLC mobilni panel
Tip	6AV2125-2JB23-0AX0
Proizvođač-br. dijela	6AV21252JB230AX0
Vrsta zaštite	IP65
Potrošnja struje	450 mA
Sadržaj	1 St.
Serija	Siemens-HMI
Width	306.5
Height	223.7 mm
Depth	91 mm
Weight	1.6 kg/m
Suitable for emergency stop	TRUE
Suitable for safety functions	TRUE
Screen diagonal	9 mm
Operating temperature	0-45 °C
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	1
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	1
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	TRUE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	FALSE
Colour display	TRUE
Number of colours of the display	16777216
Number of pixels, horizontal	800
Number of pixels, vertical	480
With touch screen	TRUE
Number of function buttons, programmable	10
With alpha numeric keyboard	FALSE
Usable project memory/user memory	12000 kB
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
Process value representation (output) possible	TRUE
Process default value (input) possible	TRUE
With recipes	TRUE
Number of password levels	50
With printer output	FALSE
Number of online languages	32
With enabling button/emergency-stop switch	TRUE
Pluggable connection	TRUE
Max. fall height according to IEC 60068-2-32	1.2 m
Degree of protection (IP)	IP65
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	1
Number of HW-interfaces wireless	0
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	TRUE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	TRUE
Supporting protocol for PROFIsafe	TRUE
Supporting protocol for SafetyBUS p	FALSE
Supply voltage DC	19.2-28.8 V
Type of display	TFT
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	10
Number of system buttons	0
