Siemens 6AV2124-0QC24-0AX0 6AV21240QC240AX0 PLC ekran

Marka Siemens

(0 ocen)

5.935,00 EUR

(= 44.717,26 kn)

Kod proizvoda: 1759312
EAN: 4047623408796
Procijenjena isporuka:19.10.2026 - 21.10.2026

Opis

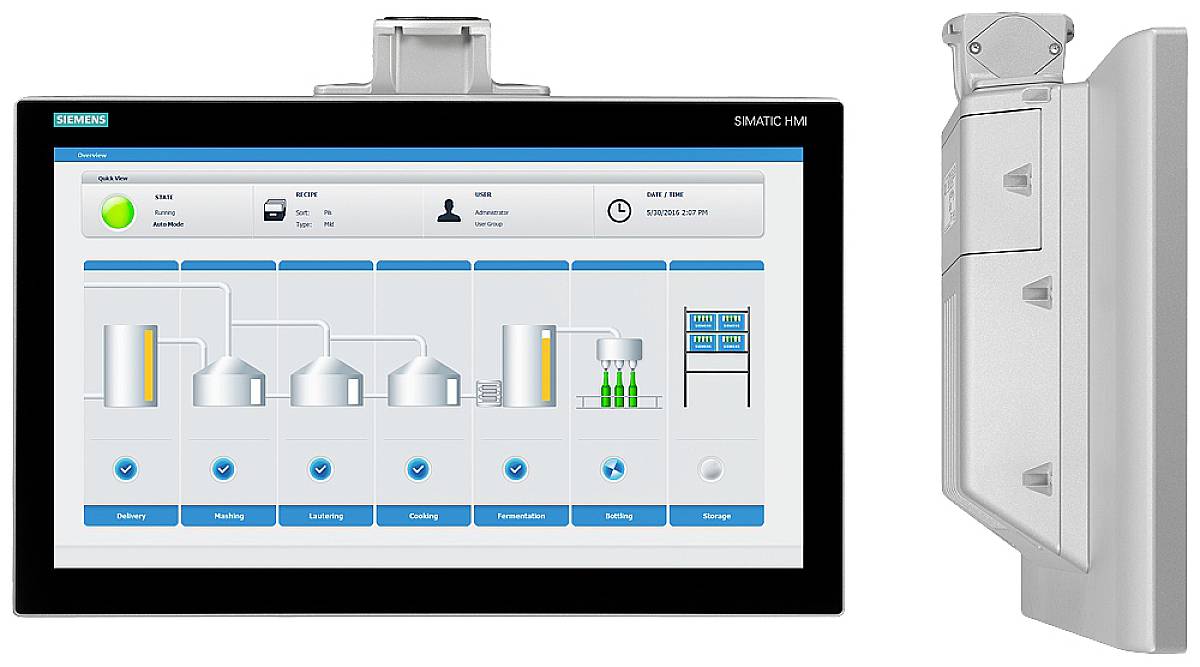

SIMATIC HMI TP1500Comfort Pro, potporna ruka, Comfort Panel, rad na dodir, 15 "širokozaslonski TFT zaslon 16 MIO boja, PROFINET sučelje, MPI / PROFIBUS-DP sučelje, 24 MB konfiguracijsko pamćenje, WEC 2013, konfigurira se iz WinCC Comfort V14 SP1 s HSP SIMATIC HMI TP1500Comfort Pro, potporna ruka, Comfort Panel, kontrola osjetljiva na dodir, 15 "široki zaslon TFT zaslon 16 MIO boja, PROFINET sučelje, MPI / PROFIBUS-DP sučelje, 24 MB konfiguracijsko pamćenje, WEC 2013, podesivo iz WinCC Comfort V14 SP1 s HSP Pripremljeno za potporni krak bez Ekspanzijski elementi SIMATIC HMI Comfort ploča TP1500 Comfort PRO

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6AV21240QC240AX0

EAN koda: 4047623408796

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1759312 Siemens 6AV2124-0QC24-0AX0 6AV21240QC240AX0 PLC ekran

Upute za rad i sigurnost 1759312 Siemens 6AV2124-0QC24-0AX0 6AV21240QC240AX0 PLC ekran

Tehnički podaci

Vrsta proizvoda	PLC ekran
Tip	6AV2124-0QC24-0AX0
Proizvođač-br. dijela	6AV21240QC240AX0
Širina	396 mm
Izvedba	Pripremljeno za potporni krak bez produžnih elemenata
Potrošnja struje	1500 mA
Sadržaj	1 St.
Serija	Siemens-HMI
Zaslon (inči)	15 palac
Built-in depth	101 mm
Suitable for safety functions	FALSE
Screen diagonal	15.6 mm
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	2
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	2
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
Supporting protocol for TCP/IP	TRUE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	TRUE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	TRUE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	TRUE
Colour display	TRUE
Number of colours of the display	16777216
Number of pixels, horizontal	1366
Number of pixels, vertical	768
Number of function buttons, programmable	0
With numeric keyboard	TRUE
With alpha numeric keyboard	TRUE
Usable project memory/user memory	24000 kB
With message indication	TRUE
With message system (incl. buffer and confirmation)	TRUE
Process value representation (output) possible	TRUE
Process default value (input) possible	TRUE
With recipes	TRUE
Number of password levels	50
With printer output	TRUE
Number of online languages	32
Additional software components, loadable	TRUE
Degree of protection (IP), front side	IP65
With SW interfaces	FALSE
Width of the front	396 mm
Height of the front	225.5 mm
Suitable for rail mounting	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	2
Number of HW-interfaces wireless	0
Wall mounting/direct mounting	FALSE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	TRUE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	TRUE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Type of display	TFT
Number of grey-scales/blue-scales of display	0
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
Number of buttons with LED	0
Number of system buttons	0
Touch technology	Capacitive multitouch
