Siemens 3RP25051AW30 3RP2505-1AW30 vremenski relej 1 St.

Marka Siemens

(0 ocen)

159,99 EUR

(= 1.205,44 kn)

Kod proizvoda: 1746027
EAN: 4011209943476
Procijenjena isporuka:23.10.2026 - 27.10.2026

Opis

Višenamjenski mjerač vremena 3RP2505-1AW30 1W 7Time

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3RP25051AW30

EAN koda: 4011209943476

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1746027 Siemens 3RP25051AW30 3RP2505-1AW30 vremenski relej 1 St.

Upute za rad i sigurnost 1746027 Siemens 3RP25051AW30 3RP2505-1AW30 vremenski relej 1 St.

Tehnički podaci

Vrsta proizvoda	vremenski relej
Tip	3RP2505-1AW30
min. pogonski napon	12 V
Pogonski napon maks.	240 V
Pogonski napon	12 - 240 V
Min. temperatura	-25 °C
Maks. temperatura	+60 °C
Vrsta zaštite	IP20
Električni vijek trajanja	100.000
Mehanički vijek trajanja	10000000

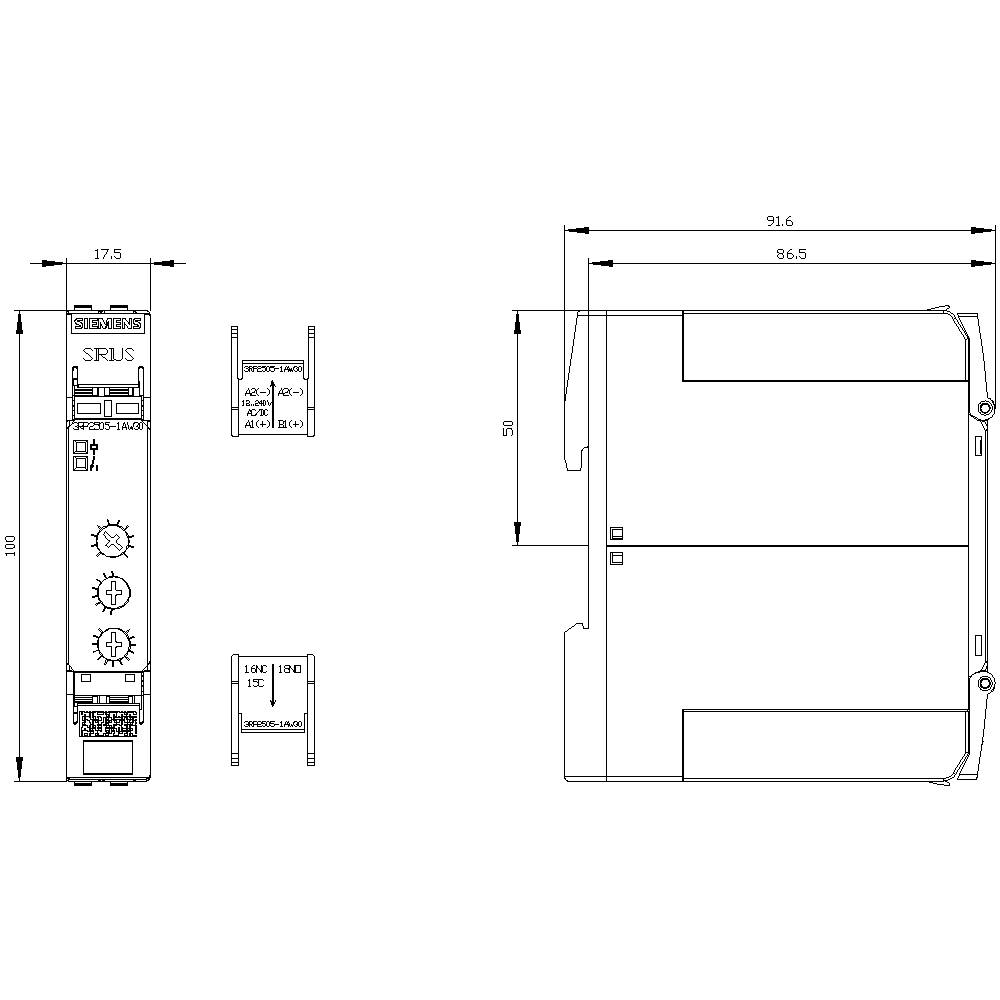

Širina	17.5 mm
Visina	100 mm
Dubina	90 mm
dim.	(Š x V x D) 17.5 x 100 x 90 mm
Sadržaj	1 St.
RoHS-konforno	Da
Težina	0.15
Width	17.5
Height	100 mm
Depth	90 mm
Suitable for front mounting	FALSE
With plug-in socket	TRUE
Remote operation possible	FALSE
Suitable as remote control	FALSE
Function flashing, starting with pause, fixed time	TRUE
Function flashing, starting with pulse, fixed time	TRUE
Clock function, starting with pause, variable	FALSE
Clock function, starting with pulse, variable	FALSE
With semiconductor output	FALSE
Function delay-on energization	TRUE
Function floating contact on energization	TRUE
Function star-delta	FALSE
Function delay on de-energization	FALSE
Function floating contact on de-energization	TRUE
Function pulse shaping	TRUE
Type of electric connection	Screw connection
Rated control supply voltage AC 50 Hz	12-240 V
Rated control supply voltage AC 60 Hz	12-240 V
Rated control supply voltage DC	12-240 V
Number of outputs, undelayed, normally closed contact	0
Number of outputs, undelayed, normally open contact	0
Number of outputs, undelayed, change-over contact	0
Number of outputs, delayed, normally closed contact	0
Number of outputs, delayed, normally open contact	0
Number of outputs, delayed, change-over contact	1
Pluggable on auxiliary contact block	FALSE
Outputs, reversible delayed/undelayed	FALSE
Suitable for DIN rail (top hat rail) mounting	TRUE
Voltage type for actuating	AC/DC
