crvena, žuta 4-polni 16 mm² 25 A 690 V/AC Siemens 3LD21031TL53

Marka Siemens

(0 ocen)

57,99 EUR

(= 436,93 kn)

Kod proizvoda: 1742953
EAN: 4011209402935
Procijenjena isporuka:05.10.2026 - 07.10.2026

Opis

Siemens 3LD2103-1TL53. AC ulazna frekvencija: 50/60 Hz, nazivna struja: 25 A, komutacijski kapacitet: 640 A. Boja proizvoda: crvena, žuta. Širina: 67 mm, Dubina: 92,5 mm, Visina: 84 mm

Ovaj tekst je strojno preveden.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3LD21031TL53

EAN koda: 4011209402935

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Podatkovna tablica 1742953 crvena, žuta 4-polni 16 mm² 25 A 690 V/AC Siemens 3LD21031TL53

Upute za rad i sigurnost 1742953 crvena, žuta 4-polni 16 mm² 25 A 690 V/AC Siemens 3LD21031TL53

Tehnički podaci

Pogonski napon (detalji)	690 V/AC
Nazivni napon	690 V/AC
Boja	crvena žuta
Poprečni presjek	16 mm²
Broj polova	4

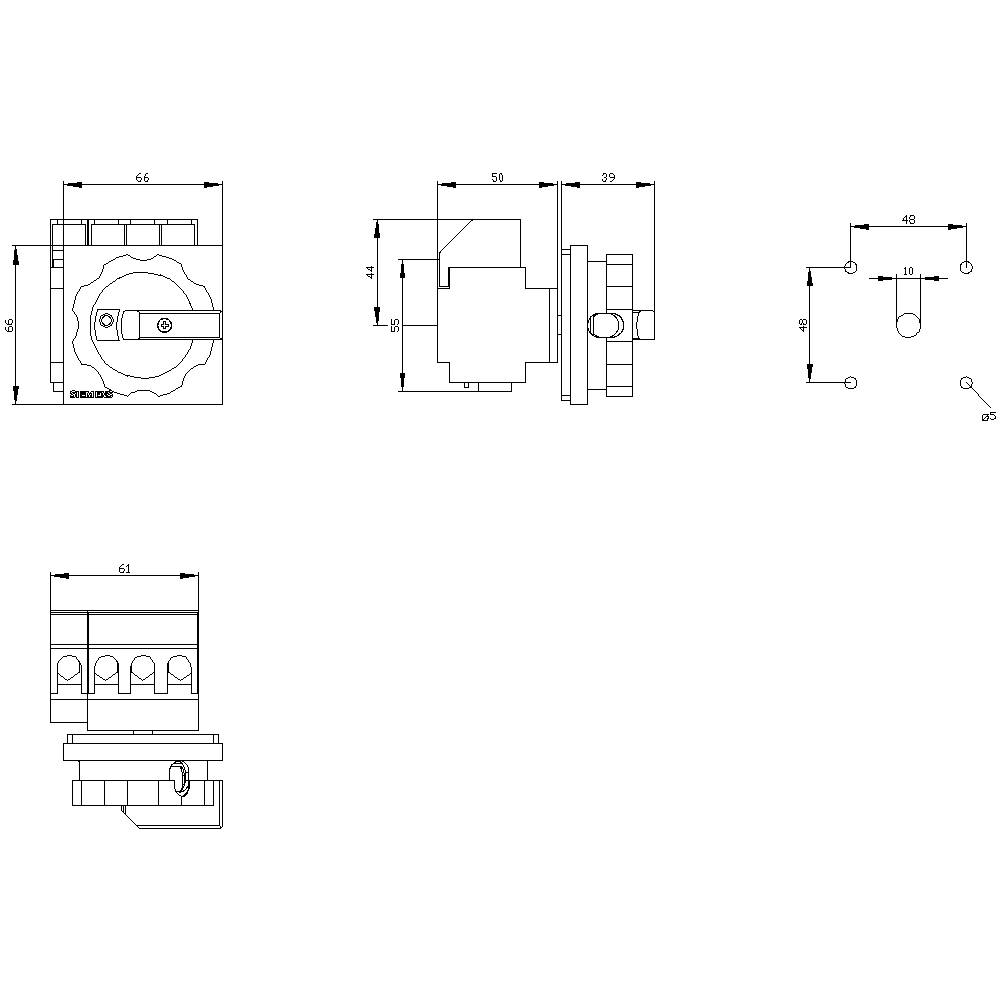

dim.	(Š x V x D) 67 x 84 x 92.5 mm
Nazivna struja	25 A
Nazivna struja - zaokružena	25 A
Izvedba	Prekidač za isključivanje u nuždi
Širina	67 mm
Visina	84 mm
Dubina	92.5 mm
Rated operation power at AC-3, 400 V	8 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	25 A
Number of poles	4
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	TRUE
Type of control element	Short rotary handle
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	10 kW
Rated short-time withstand current lcw	0.64 kA
Colour control element	Red
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	TRUE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	25 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	20
Degree of protection (NEMA)	Other
